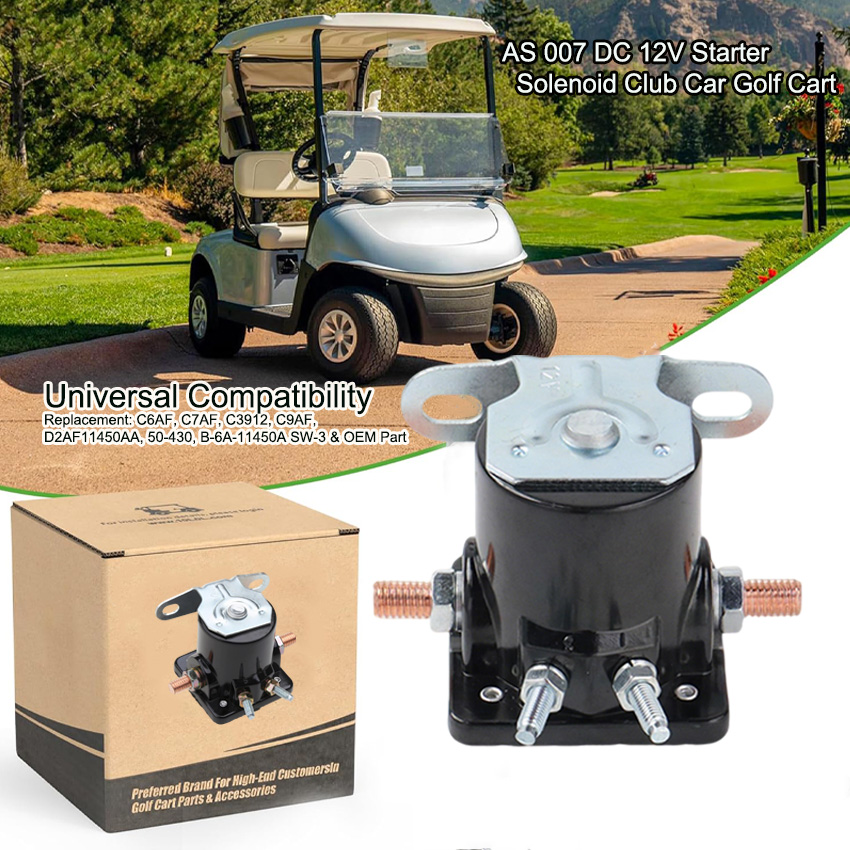

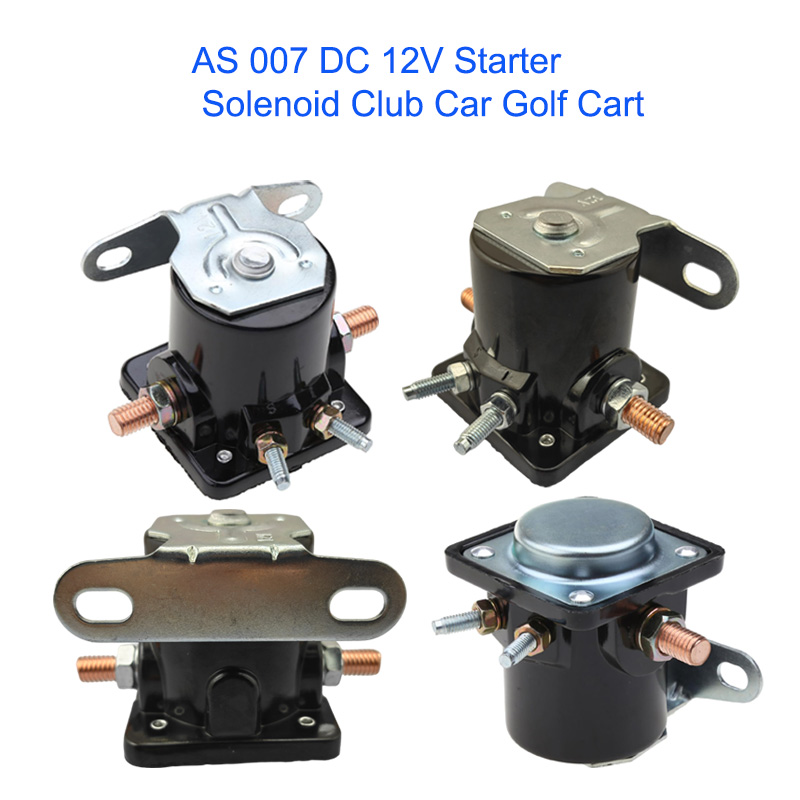

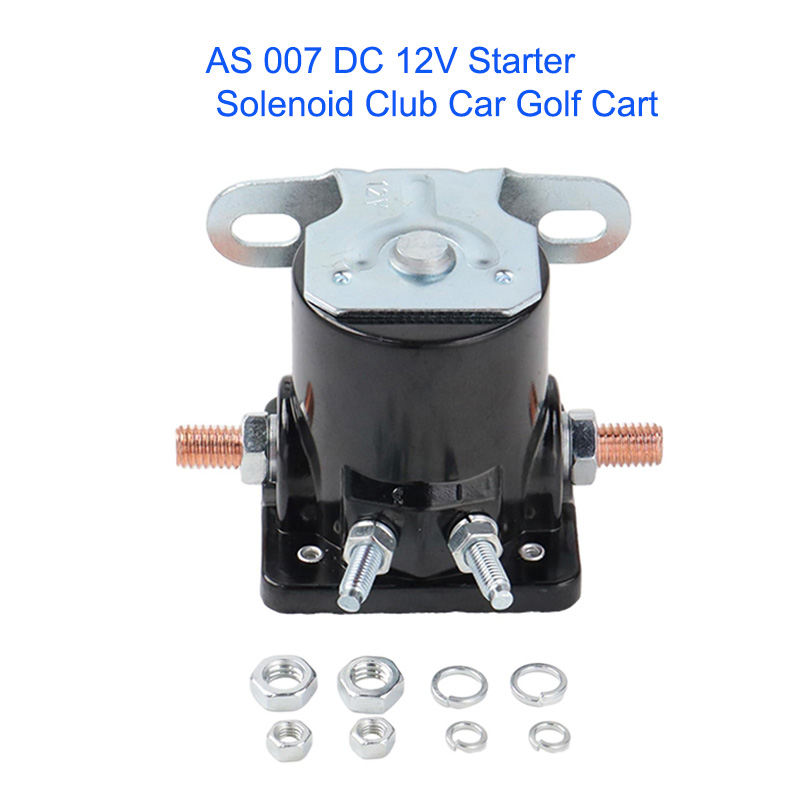

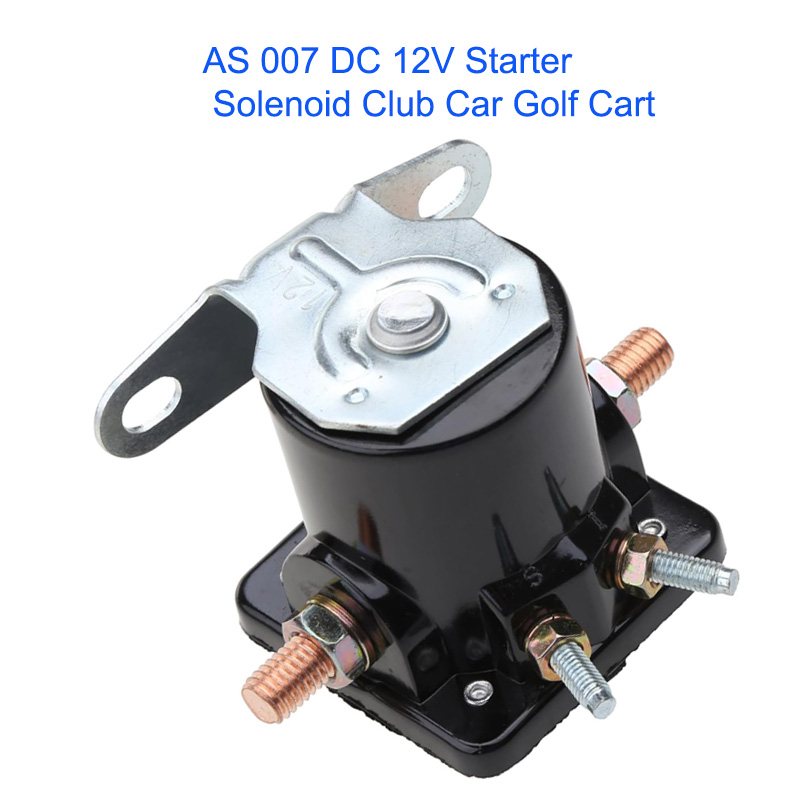

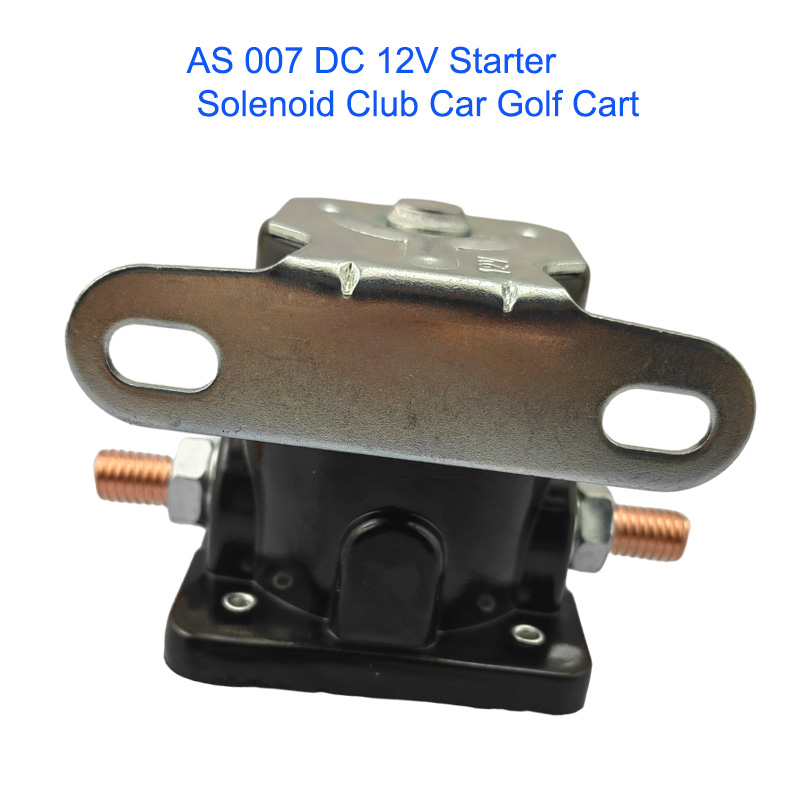

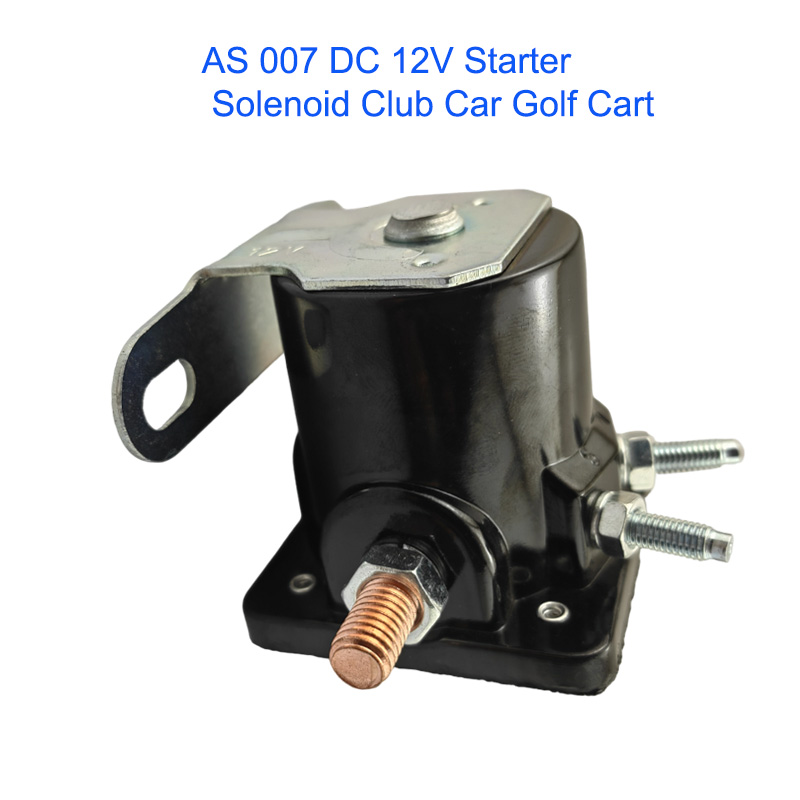

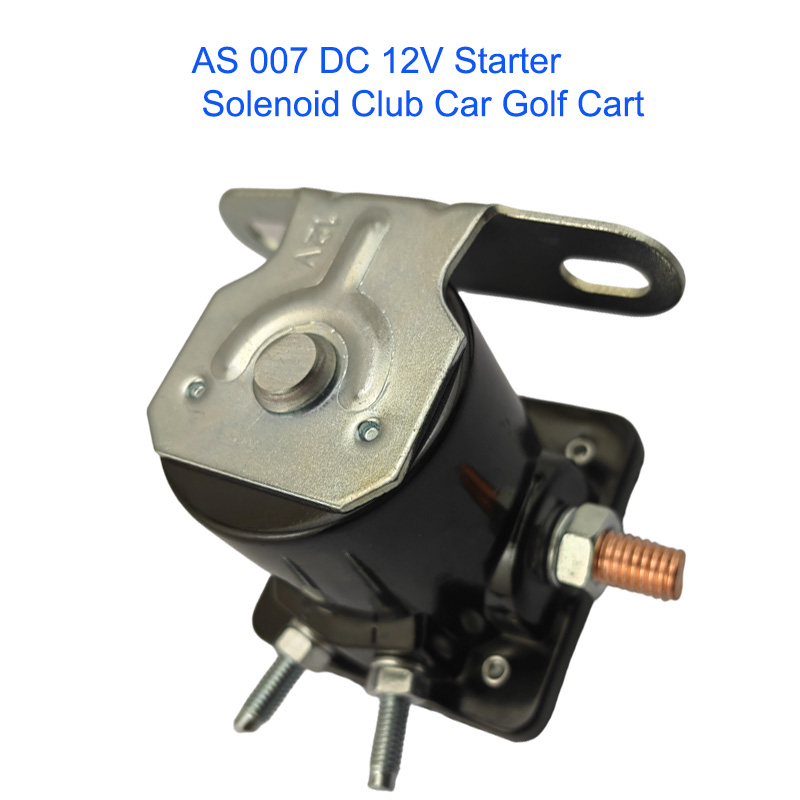

AS 007 DC 12V Starter Solenoid | Premium Replacement for Club Car Golf Cart

The AS 007 DC 12V Starter Solenoid is an essential component engineered specifically for Club Car golf carts, serving as the critical switch that manages electrical current to the starter motor. Built for heavy-duty use, this solenoid delivers high current-carrying capacity and quick response time, ensuring your golf cart starts smoothly and reliably every time. It is a direct, fit-for-place replacement for worn-out or failed original equipment solenoids, eliminating downtime and maintenance costs. Constructed with high-grade copper coils and robust mechanical contacts, it offers superior resistance to overheating and wear. As a professional solenoid manufacturer, we subject each unit to rigorous quality testing. Our product is ISO 9001 certified, RoHS compliant, and available for OEM/ODM customization. Ideal for golf cart repair shops, fleet managers, and end-users seeking a durable, cost-effective replacement solution.

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 007 F-stype
Rated Voltage (V)	DC 12 V ,24V or 36 V	Current	100-250A
Work Mode	Battery current Starter	Insulation Resistance	100 Ω
Valve	Starter Solenoid	Circuitry	SPST
Service Life	300,000 times	Certification	CE,ROHS,ISO9001,
Material	Carbon Steel Housing with Zinc Plated Coating	Terminal.	1/4M-28 zinc-plated steel stud
Install Style	Adjustable Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	F 155 Degree
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Product Description

Core Features & Specifications

Dimension: 84 mm * 55 mm * 65 mm (3.3″ * 2.16″ * 2.56″)

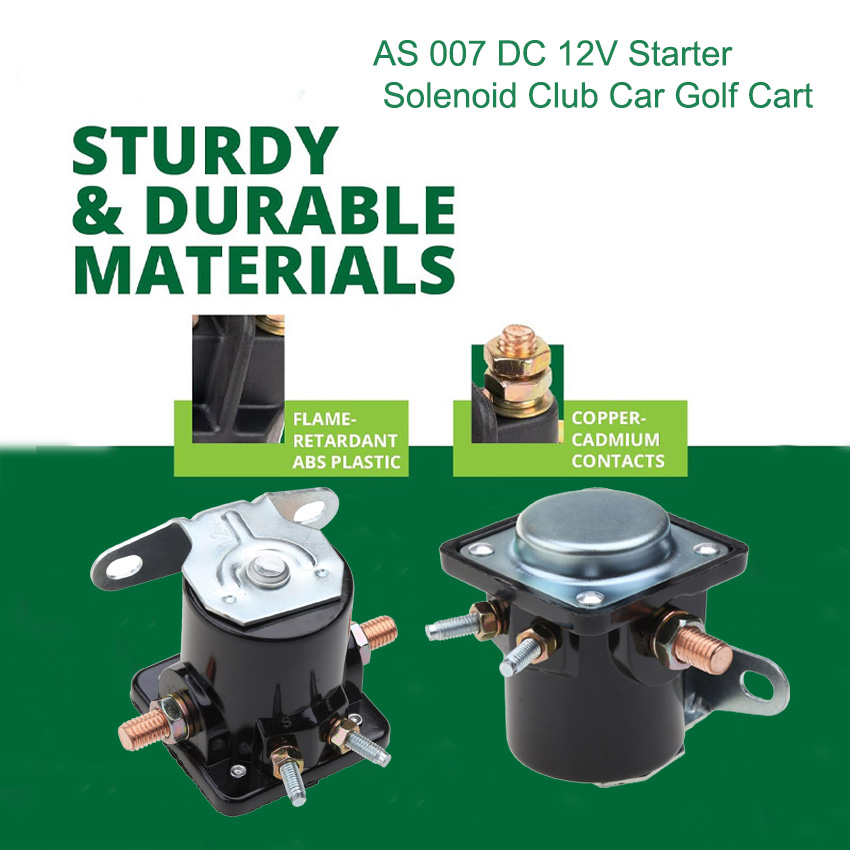

Premium Construction: Internal high-quality copper coil for optimal performance; galvanized external contacts for superior corrosion and aging resistance.

Heat Dissipation: Equipped with a solenoid valve gasket to ensure efficient heat dissipation, enhancing durability.

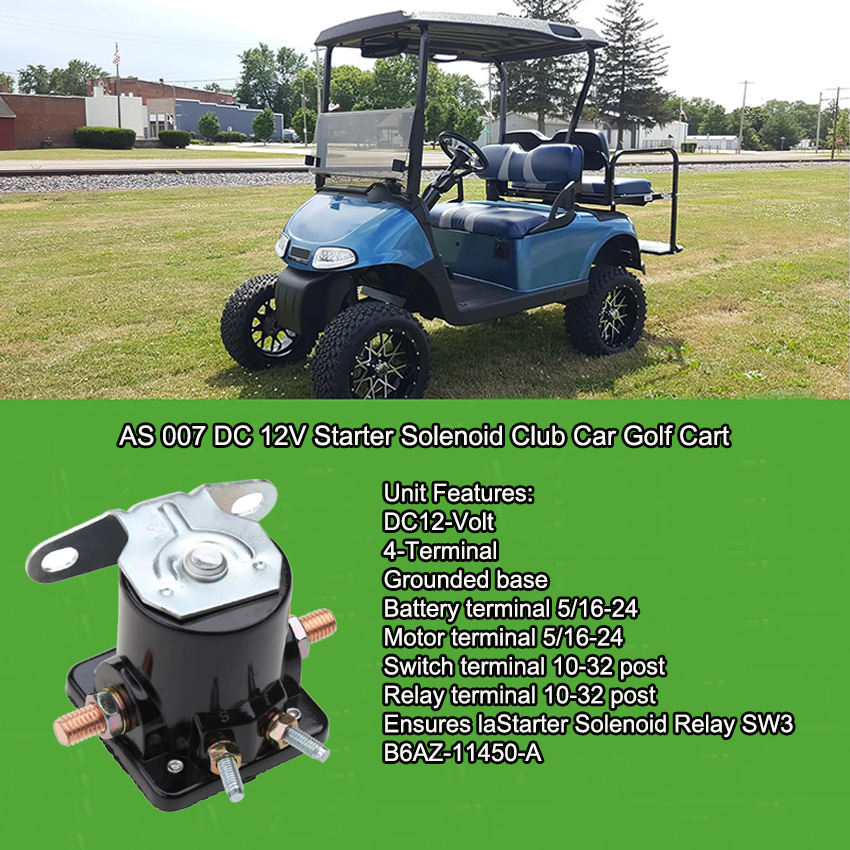

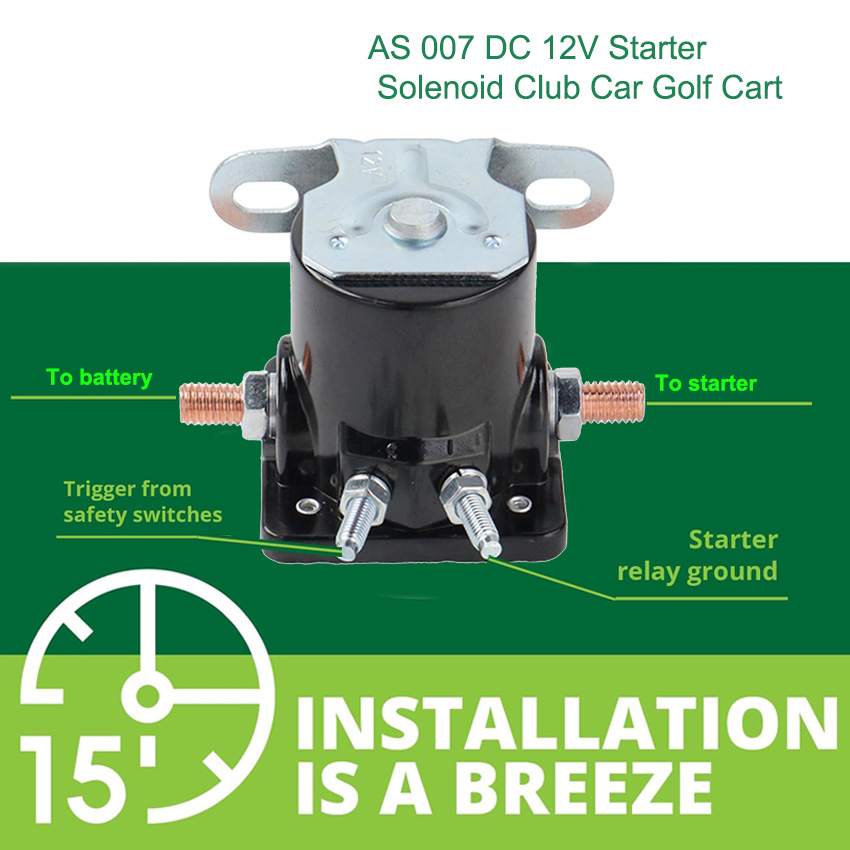

4-Terminal Design:

Battery Terminal: 5/16-24

Motor Terminal: 5/16-24

Switch Terminal: 10-32 post

Relay Terminal: 10-32 post

Voltage: 12V

Safety & Stability: Grounded base design ensures stable and safe operation, significantly improving anti-interference performance for all electronic components.

Key Functions of a Starter Solenoid

A starter solenoid is an essential electromagnet that provides the initial electrical jolt to crank your vehicle’s engine. It triggers the chain reaction that initiates internal combustion. If your car fails to start, a faulty or worn-out starter solenoid is often the cause.
