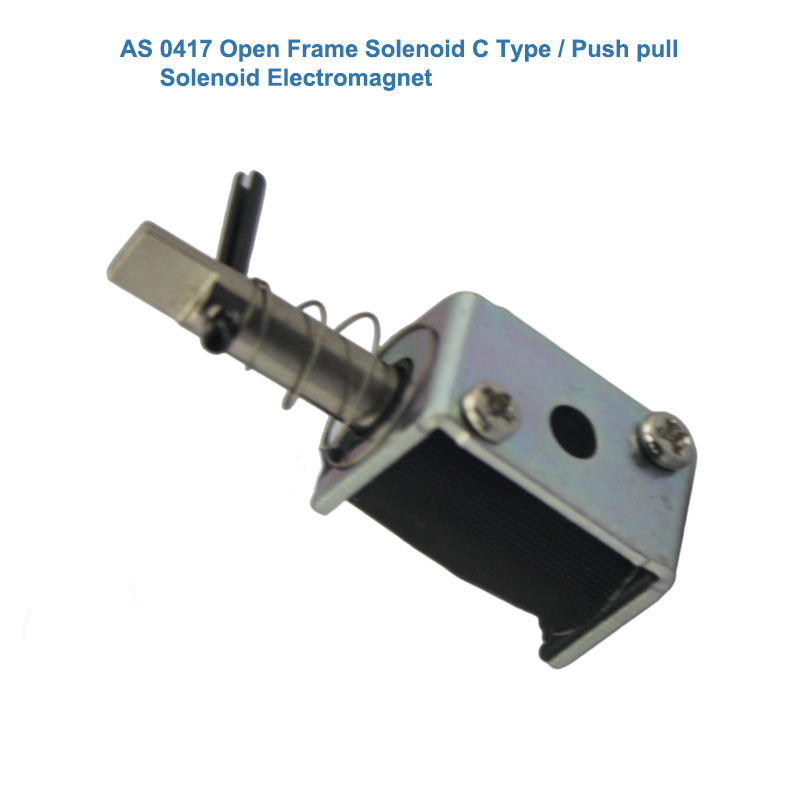

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet

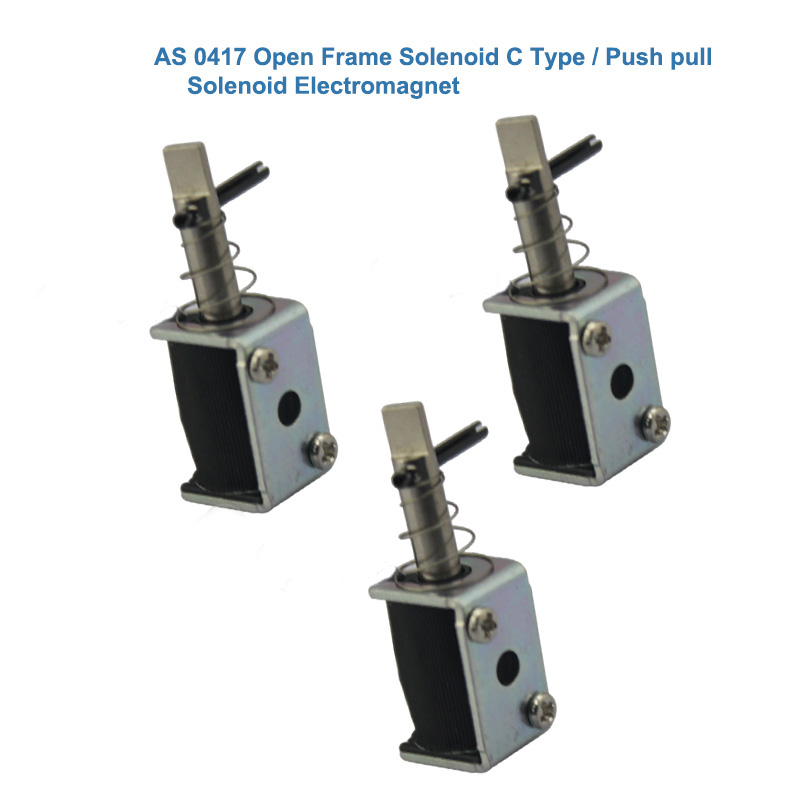

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet - Image 2

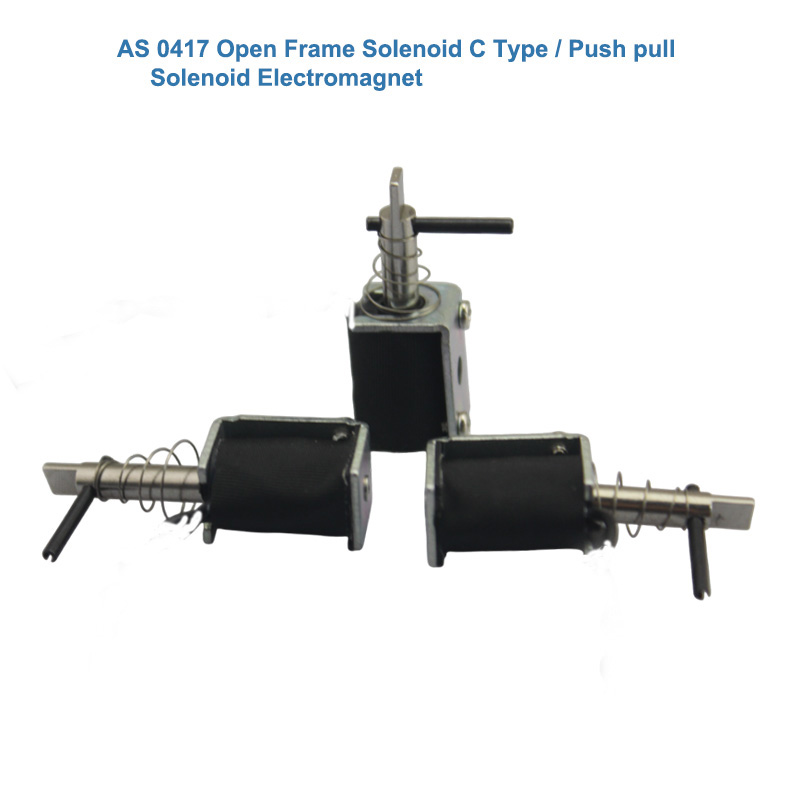

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet - Image 3

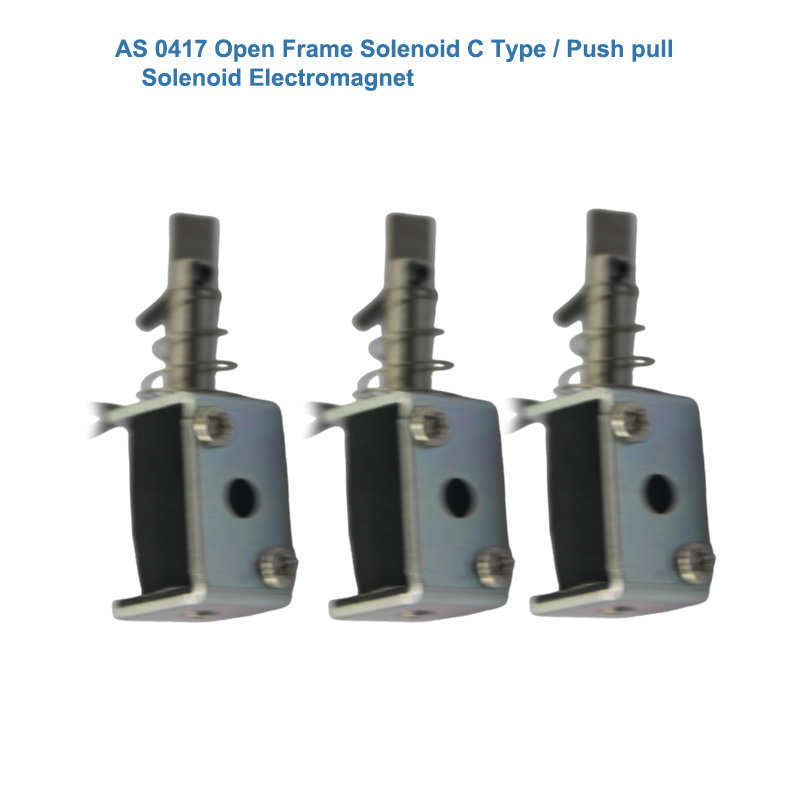

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet - Image 4

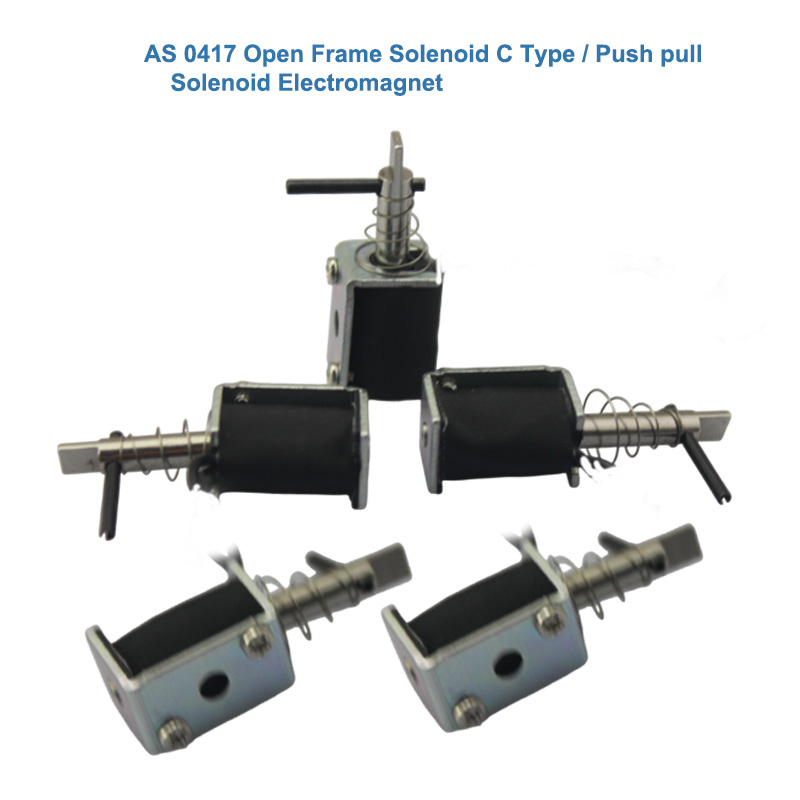

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet - Image 5

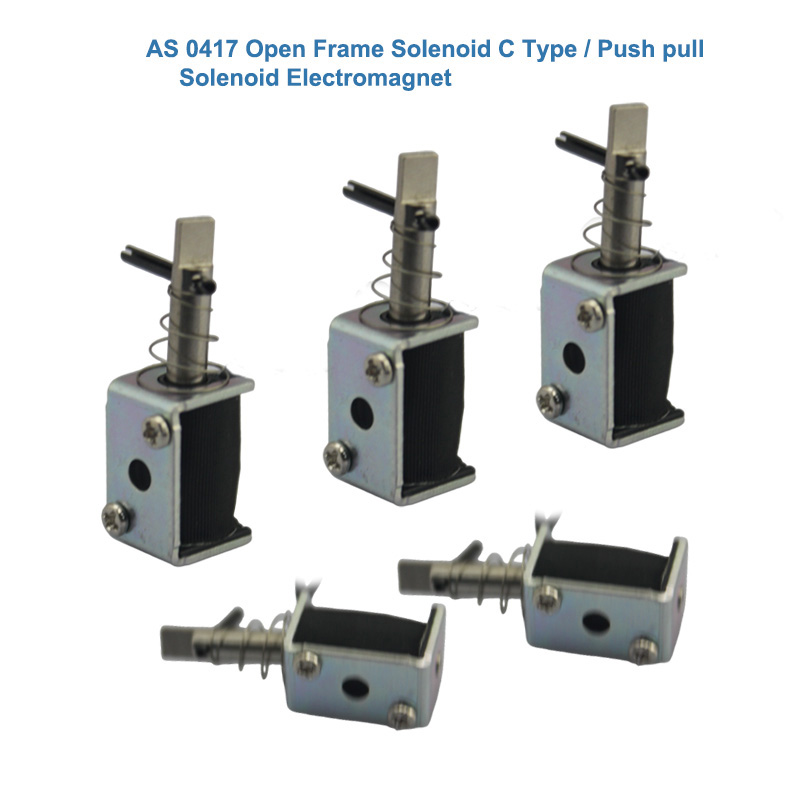

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet - Image 6
,

AS 0417 Industrial Solenoid | C Type Open Frame Push Pull Electromagnet

The AS 0417 Open Frame Solenoid C Type / Push Pull Solenoid Electromagnet is a compact, high-performance industrial component designed for precise push-pull operations in automation, machinery, and control systems. Its C-type open frame structure ensures efficient heat dissipation and easy installation, while the robust build delivers consistent magnetic force for repeated use. Suitable for both intermittent and continuous duty cycles, this solenoid adapts to diverse low-to-medium load applications. Manufactured with premium materials for extended service life, it balances durability and cost-effectiveness. We offer flexible OEM customization for voltage and performance requirements, along with fast delivery and competitive bulk order pricing for global clients.

Categories: , Tags: , , , ,
Get a Quote

Product Video

Product Specification

Brand AstSolenoid Model Number AS 0417
Rated Voltage (V) DC 12 V Rated Power(W) 5.8  W
Work Model C Type Frame Pull Push Type Holding Force (N)  0.3 N
Stroke(mm) Customized Reset Time(s) 1 S
Service Life 300 Thousand Times Certification CE,ROHS,ISO9001,
Material Carbon Steel housing with Zinc Coating Lead Wire Length(mm) 200
Install Style Mounted Screw Hole Tolerance of Dimension  +/-  0.1 MM
Water-proof  None Insulation Class F  155 Degree ( Cel. )
Hi-Pot Test AC 600V 50/60Hz 21 s Non-excitation Holding Force 0
Working Temperature -10°C-100°C Duty Cycle 1-100%
Thread Depth(mm) / Payment Term TT, or LC At Sight
Sample Order Yes Warranty 1 Year
MOQ 500 pcs Supply Ability 5000 pcs per Week
Delivery Time 30 Days Port of Loading shenzhen

Product Description

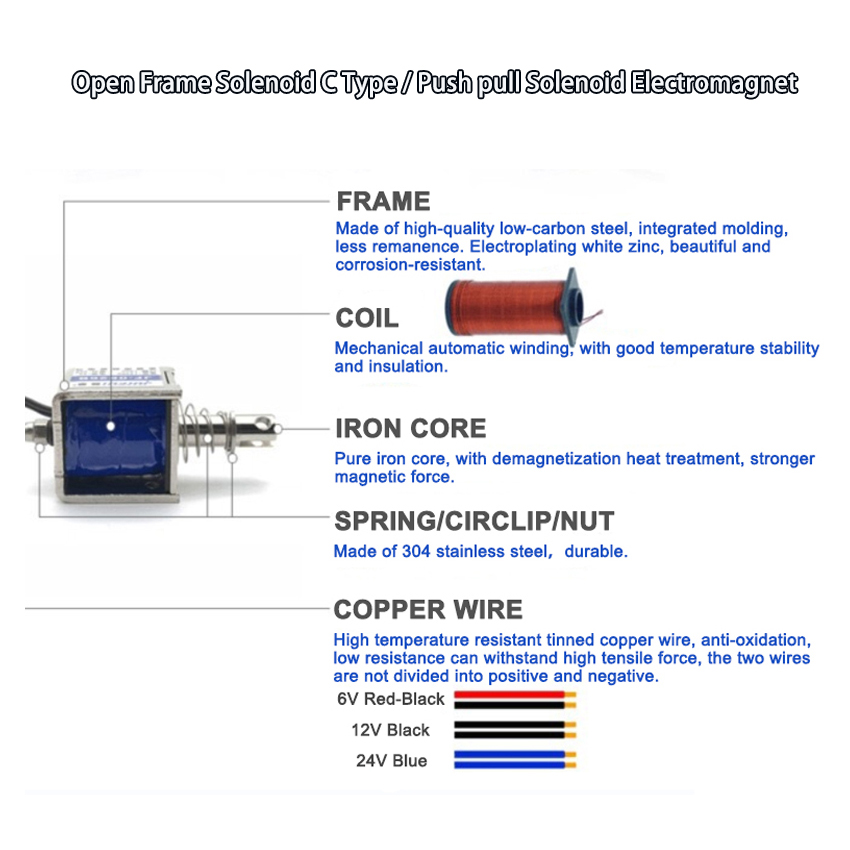

This C type Solenoid electromagnet has simple structure, small volume, high adsorption force. Built in Quality copper coil inside, has good temperature stability and insulation, high electrical conductivity also.
The mini push-pull solenoids incorporate an intelligent magnetic concept that allows a very high holding force at a comparably low power input. This makes the solenoid ideally suited for heavy duty applications, and those demanding for low power consumption or low heat dissipation project

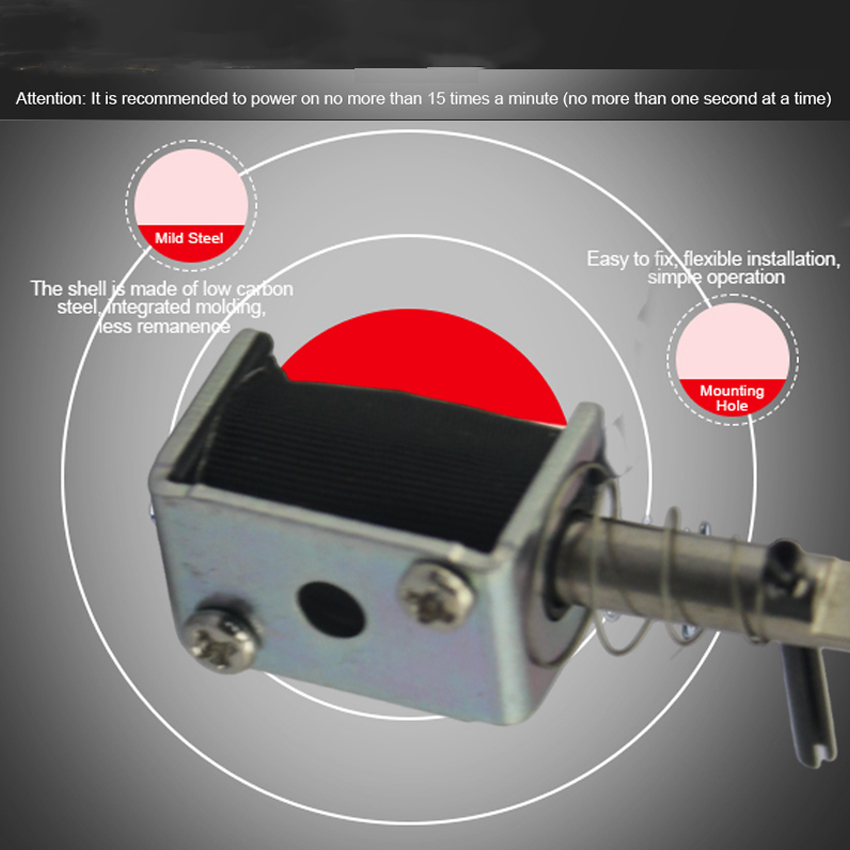

Housing: smooth surface carbon steel , zinc plated coating with high temperature resistance.
Stroke: 6-10 mm ( adjustable )
Holding Force: 0.4N
Operating Temperature: -5 to 60deg C non-condensing
Operating Humidity: 45% to 85% non-condensing

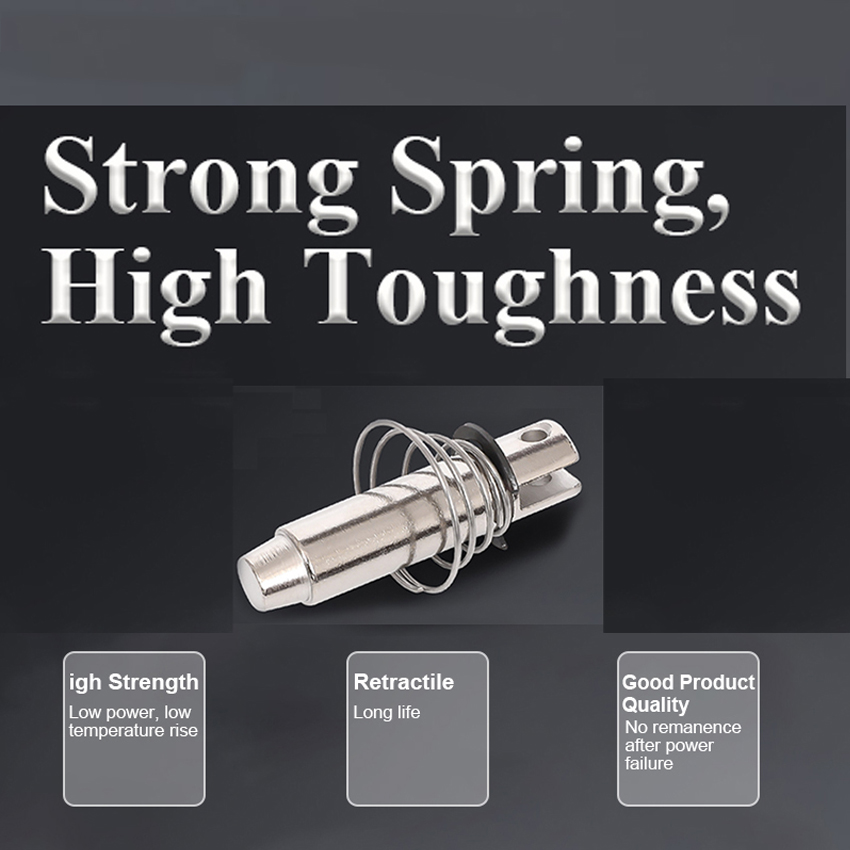

Push Bar Diameter: Approx. 0.19 inch / 5 MM
Dimension      11 x 26 x 10 mm / 0.45 x 1.02 x 0.39 inch(L*W*H); Voltage: 12V; Force: 0.2 N; Current: 0.48 A; Stroke : 6-8 mm
Unit Feature    Stable Performance and 300 000 life cycles , Maintains the open / closed state of the solenoid with short-time energization, and achieves low power consumption by using a permanent magnet. DC 12V power-operated.
