AS 0537 Mini Electric Cabinet Solenoid Push Pull for Smart Door System+

Automation systems with the 0537 DC 12V Mini Push Pull Solenoid—a compact, open-frame linear actuator engineered for precision and reliability.

This high-performance solenoid features a robust spring-return mechanism, ensuring consistent bidirectional motion for locking, latching, triggering, and release applications. It supports flexible voltage customization from 3–24V DC, adapting to diverse power environments, and operates efficiently across a wide range of duty cycles for continuous use. Measuring small yet delivering forceful actuation, it’s the ideal component for smart IoT cabinets, vending machines, access control panels, office automation, and robotics. Enhance your mechatronic designs with this durable, space-saving solution that combines engineering excellence with versatile performance for industrial and commercial innovations.

Brand	AstSolenoid	Model Number	AS0537
Rated Voltage (V)	DC12V or 24V	Rated Power(W)	4-8W
Work Mode	Push and Pull	Holding Force (N)	0.1–1.5 N
Stroke(mm)	3-6 MM Customized	Reset Time(s)	1 S On，3 S OFF
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Superior Magnet Iron	Lead Wire Length(mm)	200 MM
Install Style	Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

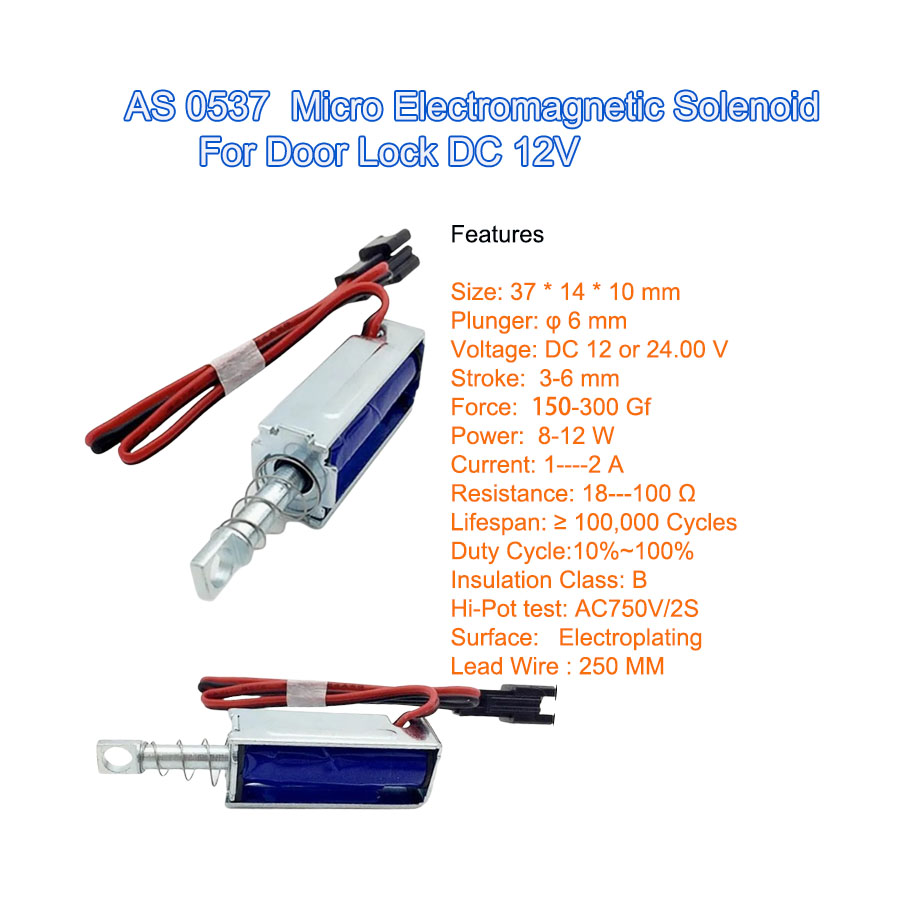

The 0537 Mini Push Pull Solenoid is a compact, high-reliability linear actuator designed for demanding cabinet locking and automation applications. Built with an open-frame structure and precision components, it delivers fast response, stable force output, and long service life.

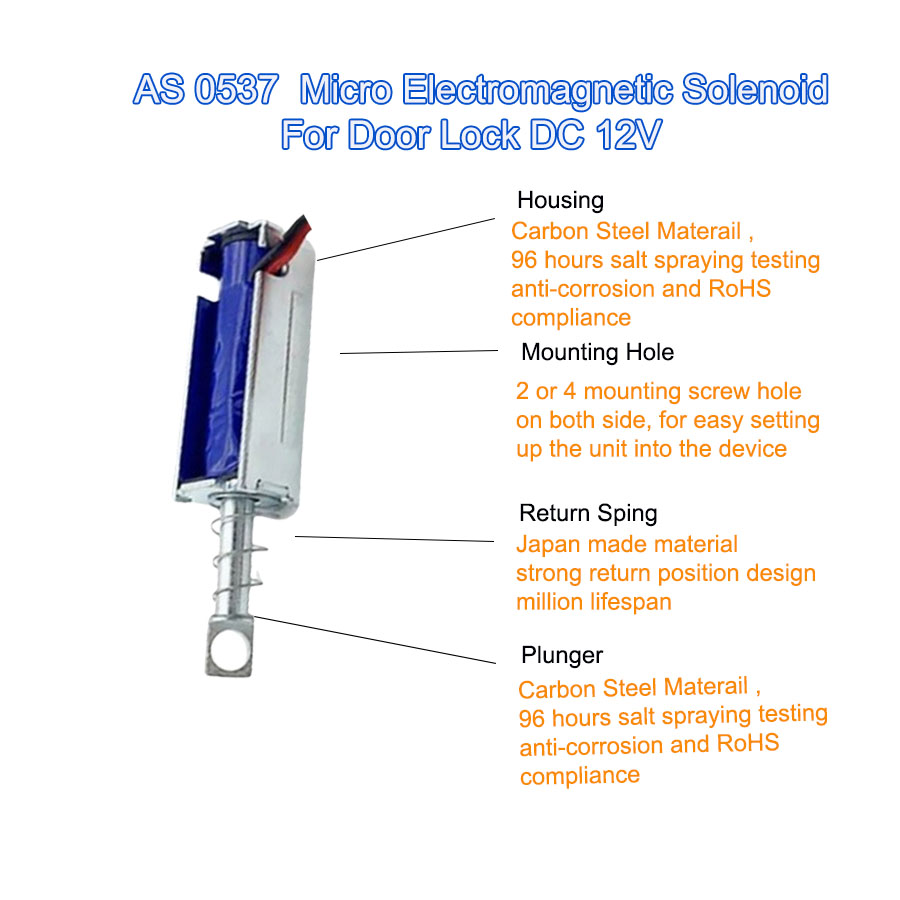

Compact open-frame design with mounting holes for quick and flexible installation

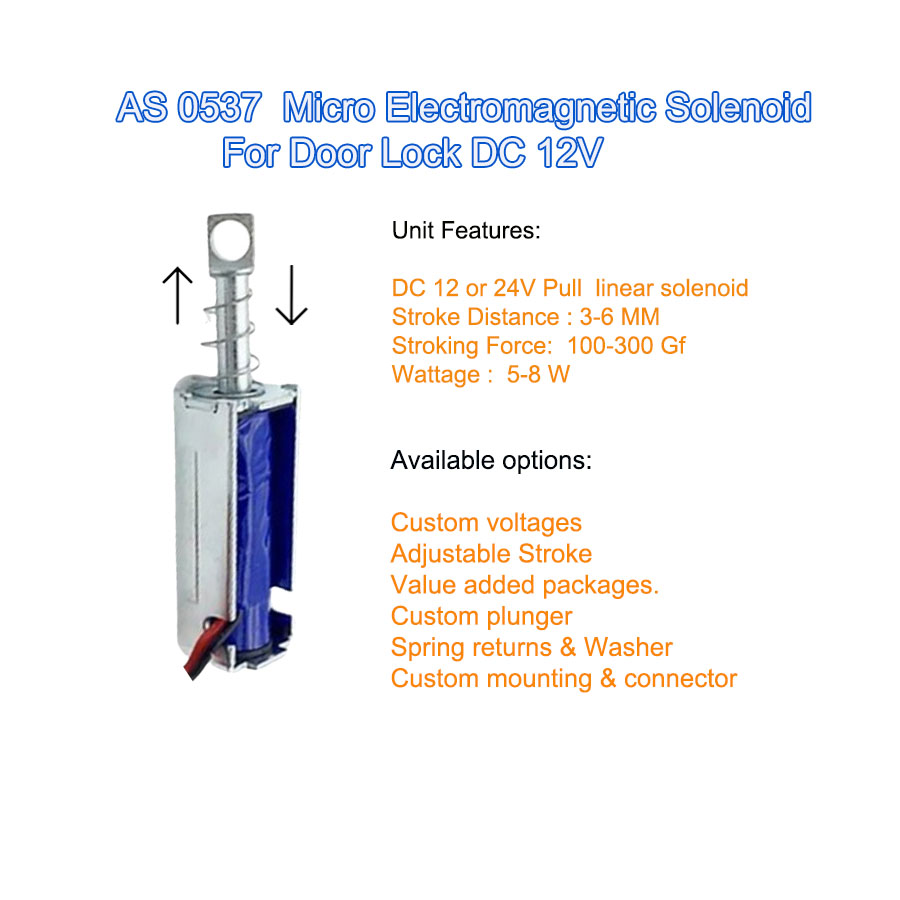

Push or pull linear actuation, spring-return mechanism ensures automatic reset and fail-safe operation
Standard DC 12V / 24V, with custom voltage options from 3–24V DC to perfectly match your system
Instant actuation when powered on; automatic plunger return when power is off
Wide duty cycle range (ED 10%–100%), adaptable for intermittent or continuous-duty applications
Perfect for vending machines, smart lockers, access control systems, subway gates, robotic arms, and shared mobility devices.
We offer a range of models to accommodate various stroke lengths, force specifications, and mounting needs.
Our solenoids are built on over two decades of engineering and manufacturing expertise.
We provide OEM and ODM solutions, supporting everything from design refinement to large-scale production.
✅ Dependable performance. Customization options. Established manufacturing capabilities.
