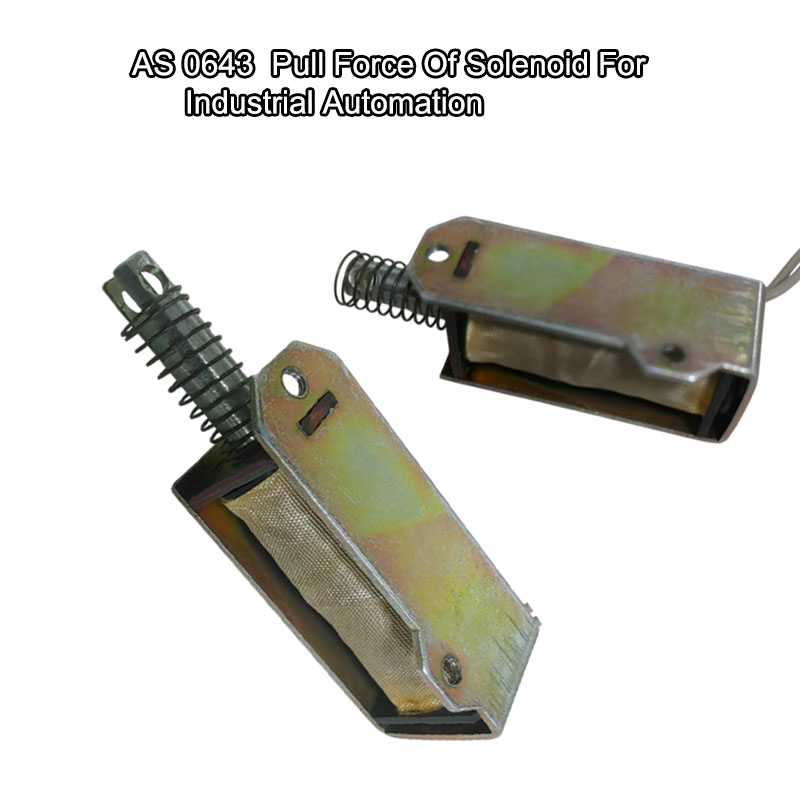

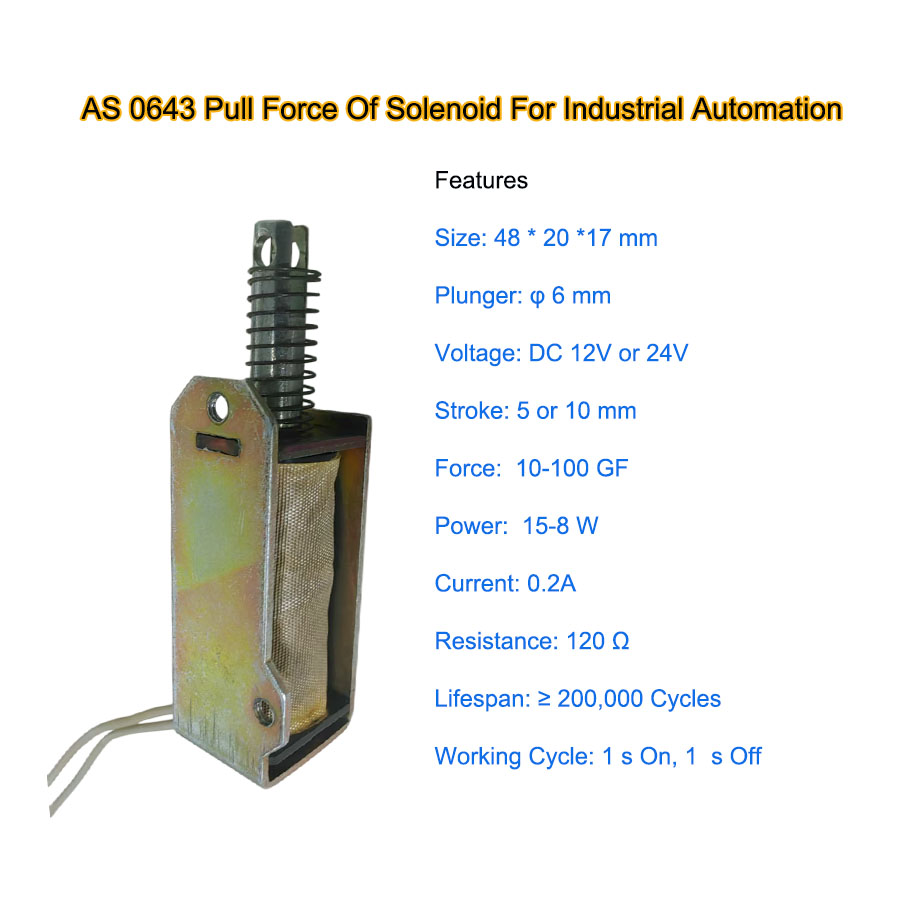

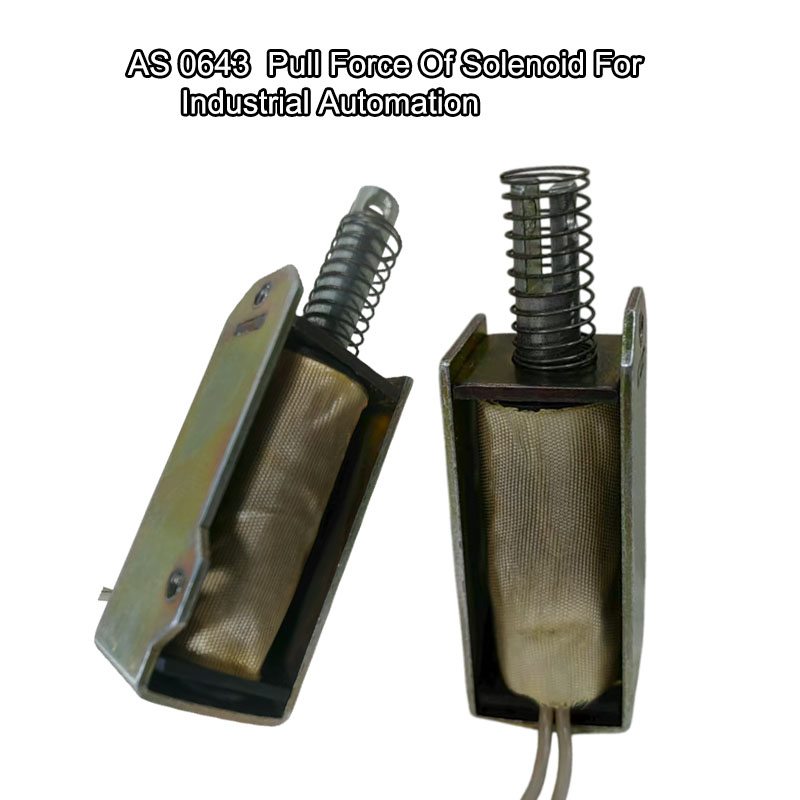

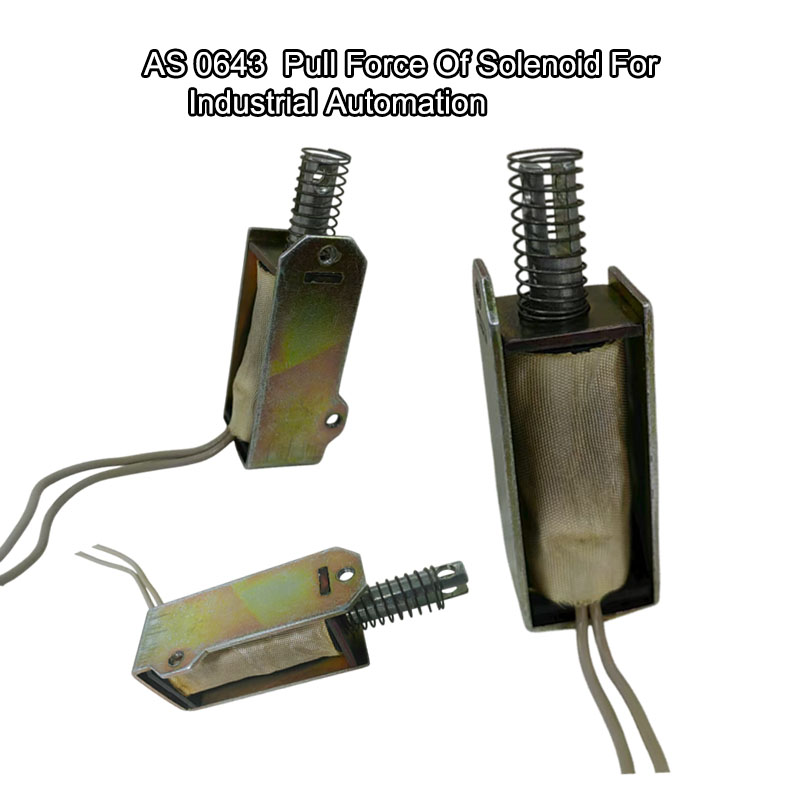

Product Description
| Brand | Dr. Solenoid | Model Number | AS 0643 |
| Rated Voltage (V) | DC12V or 24V | Rated Power(W) | 4-8W |
| Work Mode | Pull Type | Holding Force (N) | 0.5–1 N |
| Stroke(mm) | 3-6 MM Customized | Reset Time(s) | 1 S On，3 S OFF |
| Service Life | 200 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Superior Magnet Iron | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |
FAQ – AS-0643 24V Pull Type Boxing Solenoid
1. What is the operating voltage of the AS-0643 solenoid
The AS-0643 is powered through 24V DC. Nonetheless, we can support different voltages such as 12V DC and other DC values depending on the OEM and ODM design.
2. Is AS-0643 a pull-type solenoid or push-type solen

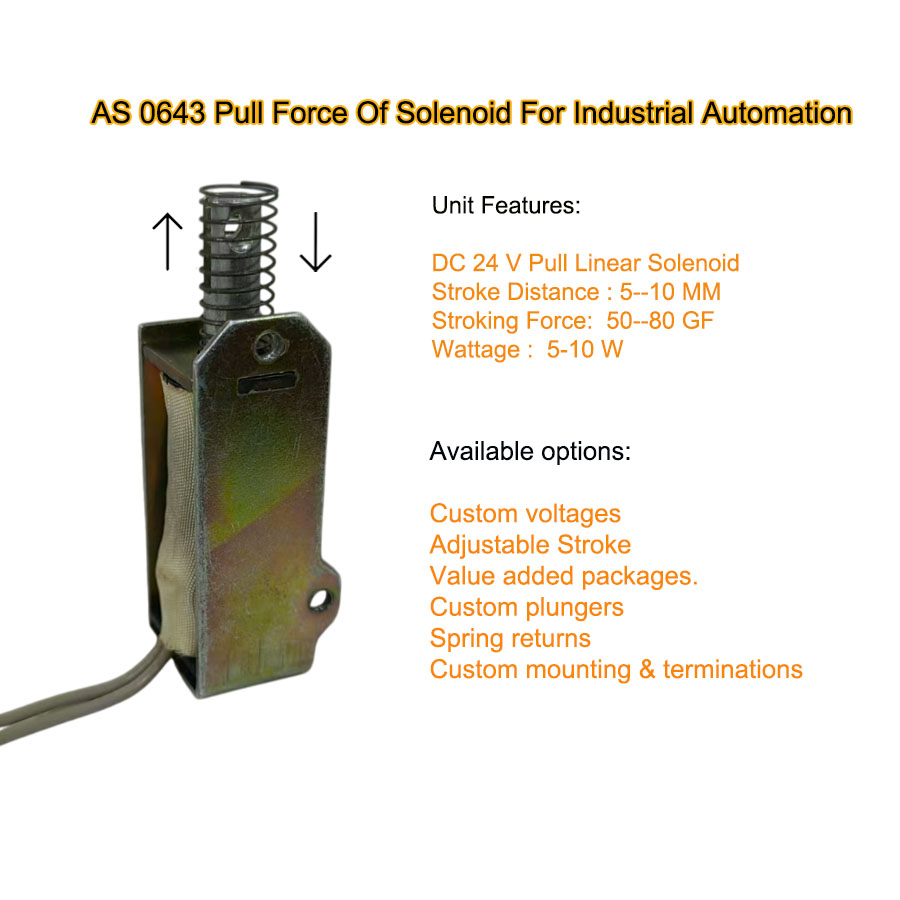

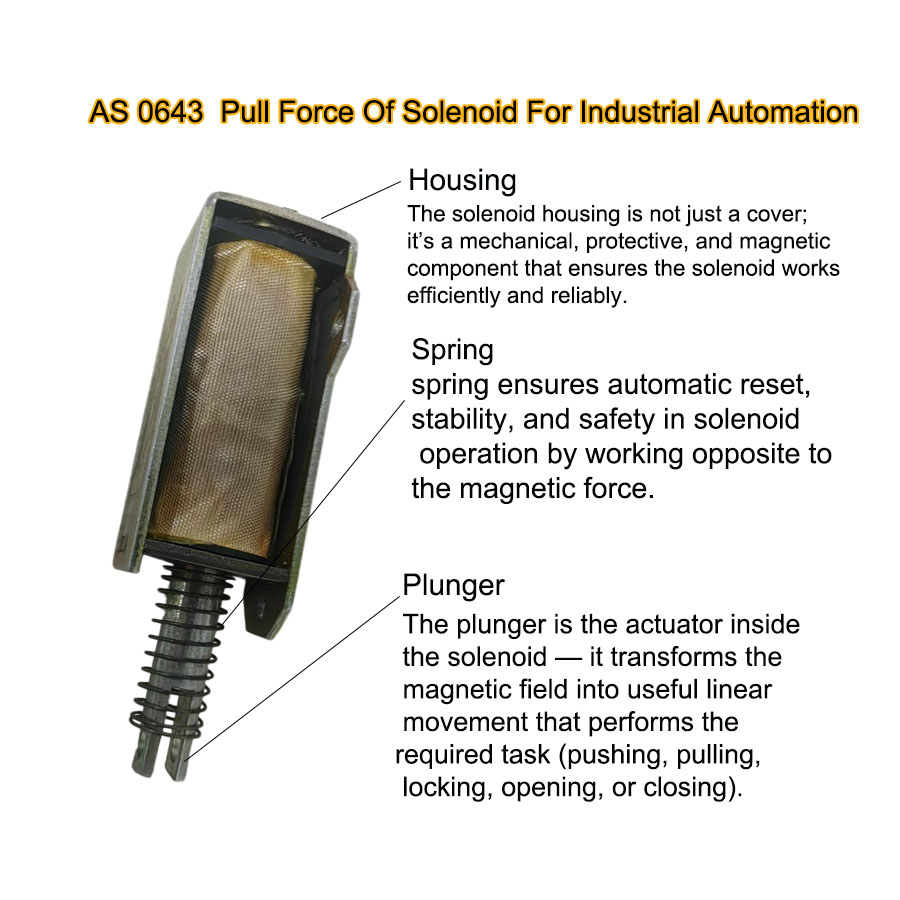

This solenoid is a pull-type solenoid. When the solenoid is switched on, the plunger is pulled inside the coil. There is a return spring that returns the plunger to its original position once the power is switched off.
3. What is the duty cycle of this solenoid?
The duty cycle depends on the application and the duration for which the solenoid has been energized. The AS-0643 solenoid can be used for intermittent, periodic, or continuous duty, provided the operating limits are not exceeded.
Could you please be specific about your requirements for the duty cycle when you inquire?
4. Can AS-0643 solenoids be used continuously?
Yes, it can, but to run continuously, there are design considerations and management of power and heat. Our engineering team can be consulted to achieve 100% duty cycle or ways to minimize the current, if needed.
5. What could be applications of AS-0643 solenoid?
This solenoid can be used in lock mechanisms, industrial automation, robots, vending machines, as well as amusement machines, such as pinball machines.
6. Is customization available for this solenoid?
Indeed! We also offer OEM/ODM customization services, including voltage, stroke, force, mounting type, connector type, housing type, and optimization of the duty cycle.
7. What is the definition of the pulling force?
The force produced by the solenoid depends on the stroke length and the voltage. The force produced depends inversely on the stroke length. We can offer the force-stroke relationship if required.

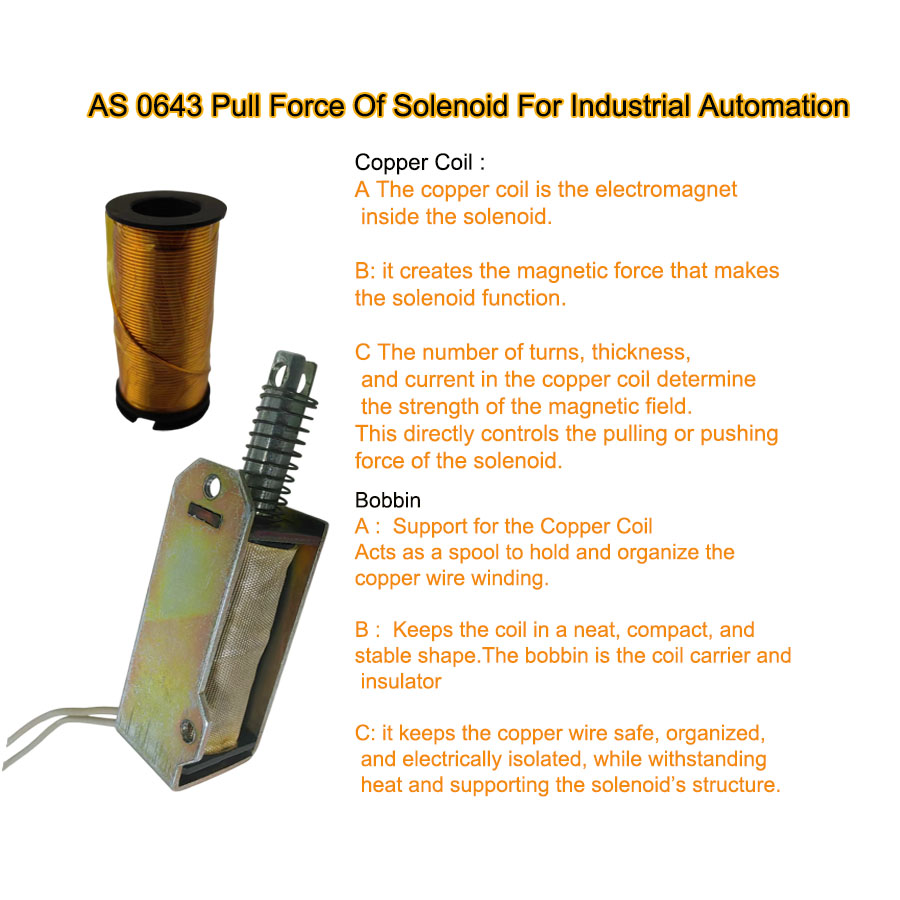

8. What is the coil and the plunger made of?
The coil is made from high-purity copper wire. The plunger, however, is made from either ferromagnetic steel or magnetic alloys. The reason for this choice is that these materials are capable of effectively conducting magnetic flux.
9. What is the expected life of the AS-0643 solenoid?
When driven under the appropriate voltage, duty cycle, and environmental conditions, the solenoid can withstand millions of cycles, thereby making it an appropriate option for both industry and business applications.
10. How do I select the solenoid suited to my application? To better serve you, we need to have the following parameters:
Voltage
The force you need
Stroke
Duty cycle
Ambient temperature
Installation restrictions
Our engineering team will then recommend a solenoid that is best suited to your application.
