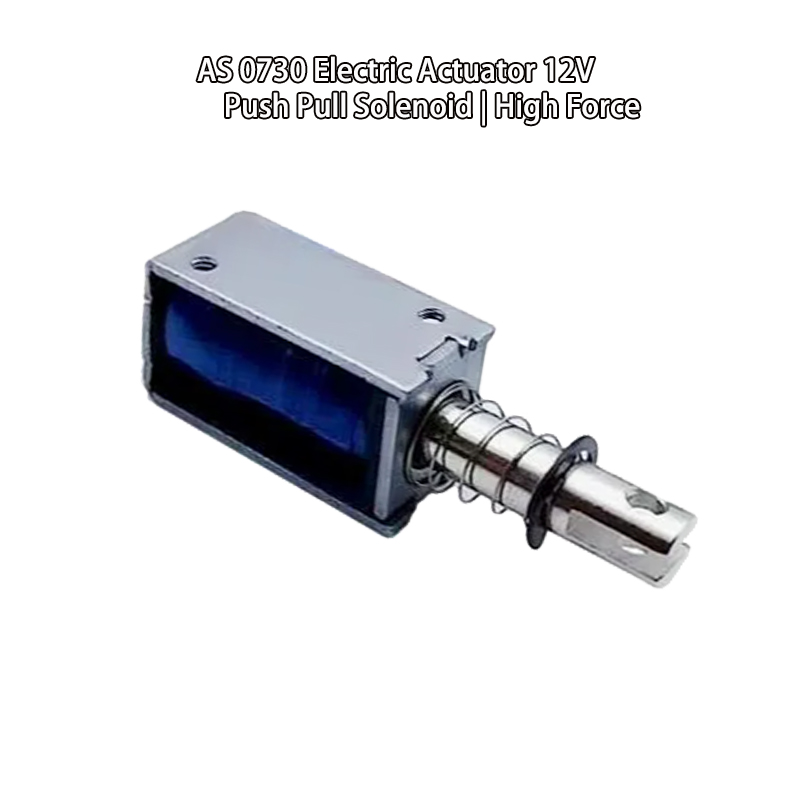

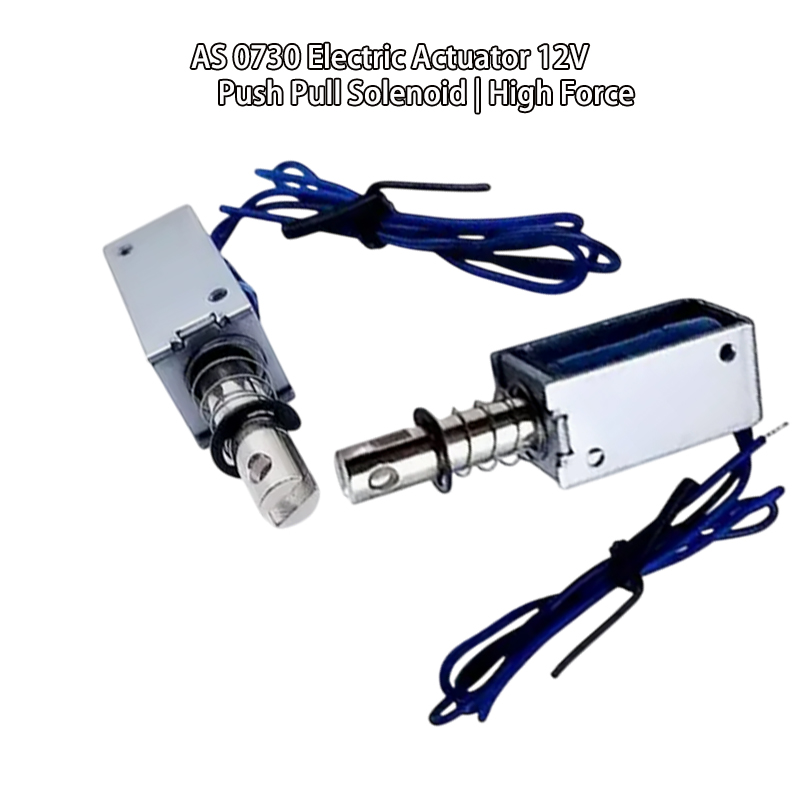

AS 0730 12V High Force Solenoid | Push Pull Electric Actuator for Equipment

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 0730
Rated Voltage (V)	DC12V  or 24V	Rated Power(W)	15–30W
Work Mode	Push and Pull	Holding Force (N)	2–5 N
Stroke(mm)	3-6 MM Customized	Reset Time(s)	1 S On，3 S OFF
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Superior Magnet Iron	Lead Wire Length(mm)	200 MM
Install Style	Mounting Hole	Tolerance of Dimension	+/-  0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-60%
Thread Depth(mm)	3 mm	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Product Description

Both advantages and disadvantages of The strong push-pull solenoid 12V

Advantage

High force output: They are designed to generate stroke force, making the solenoid suitable for applications that require strong actuation device, such as industrial machinery, automotive device systems, and heavy equipment.

Fast Response: High strength push-pull solenoids also features with respond quickly, allowing for quick actuation and precise control in applications where speed is critical. This is beneficial in applications such as robotics and automated manufacturing processes.

Precise Control: These strong push pull solenoids can relatively accurately control the applied force and position of the actuator. This makes them suitable for applications that require precise positioning or force regulation, such as certain medical devices and scientific instruments.

Compact Design: Despite the high force capabilities, it can be designed into relatively compact packages, which is a great advantage in applications where space is limited. This allows the unit for easy integration into a variety of systems without taking up excessive space.

Reliability: If properly designed and manufactured, strong push-pull solenoids can have high reliability and long service lifespan. They are often used in critical applications that require consistent performance.

Disadvantage

High Power Consumption: To generate high force, these solenoids typically require a significant amount of electrical power. This can lead to high energy consumption and may require additional power – conditioning equipment, increasing the overall cost and complexity of the system.

Heat Generation: The high power consumption can also result in significant heat generation. This may require additional cooling mechanisms to prevent overheating, which adds to the system’s complexity and cost. In some cases, excessive heat can also affect the performance and lifespan of the solenoid and other components in the vicinity.

Electromagnetic Interference: Solenoids can generate electromagnetic interference (EMI), which may affect the operation of nearby electronic devices. This requires proper shielding and filtering to minimize the impact on other components in the system.

Limited Stroke Length: While they can produce high force, the stroke length of high – force push – pull solenoids is often relatively limited compared to some other types of actuators. This may restrict their use in applications that require a long – distance movement.

Cost: High – force solenoids are generally more expensive than standard – force solenoids due to their specialized design and manufacturing requirements. This higher cost can be a limiting factor in some applications, especially those with budget constraints.

FAQ:
Q: Are you a trading company or manufacturer? And where is your factory located?
A: We are the professional solenoid and solenoid valve factory with 20 years’ experience. Our factory is located in HuiZhou City, 1.5 hours from Shenzhen or Guangzhou Airport by car.
Q: Do you have any certification approved?
A: For the certification, it depends on the product. Some we have CE along with Rohs.

Some Custom design, we can help and get third part approval.
Q: How to choose a suitable high force push pull solenoid quickly?
A: Please provided us the follow specification that meet your project requirement.:
Act form: pull or push type?
Frame type or tubular type?
Stroke Distance ?
Push force ?

Duty cycle, time for action and time for release
lead wire length and the type connector,
——————————-
For example: You can mention that I want purchase open frame solenoid as below:
Open frame type solenoid
Action Form: Pull type
Housing Size: L37xW26xH20
Stroke Distance : 10 mm
Pull Force: 1 N
DC Power Voltage:       DC 12V,2A
Duty Cycle:  10%, Energized time: 6S, de-energized time: 60s
Lead Wire:   side out 10 cm, with XH2.54 male connector.
Install Thread size: M3
—————————————
Q: How long is your delivery time for the sample and the production time ?
A: If we have sample in hands, Samples ready for delivery in 3 days or in 10-20 days for  customized product. It is according to quantity. Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized the solenoid product as Customer design ?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, we can help and do the logo on the housing
