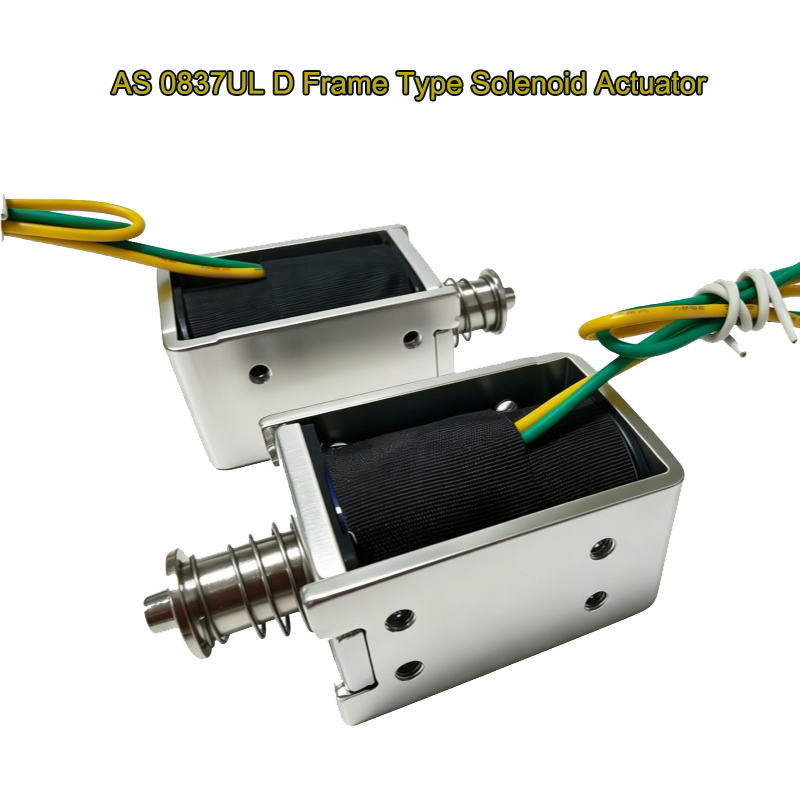

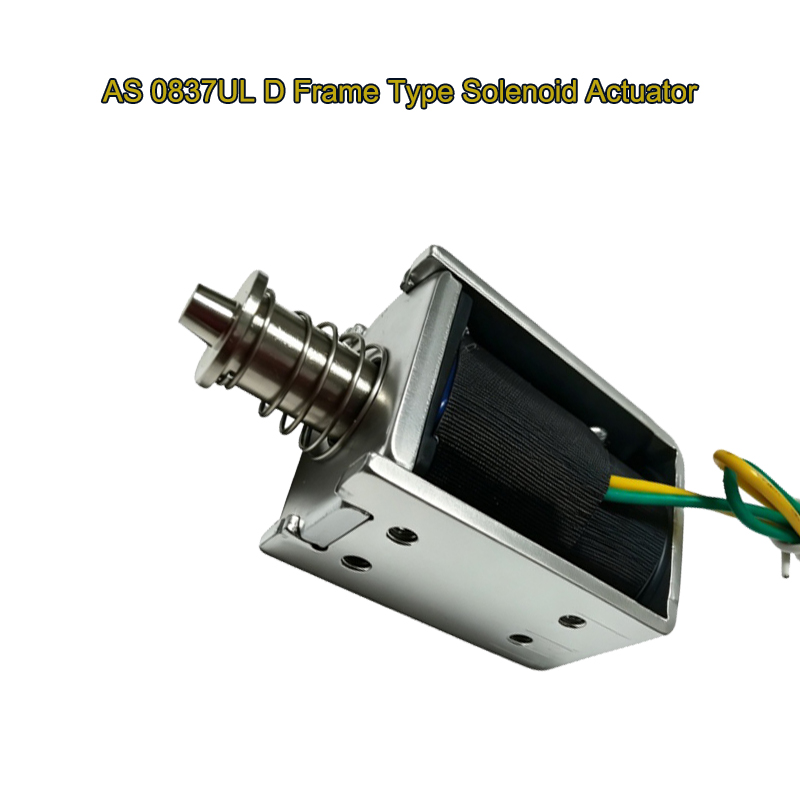

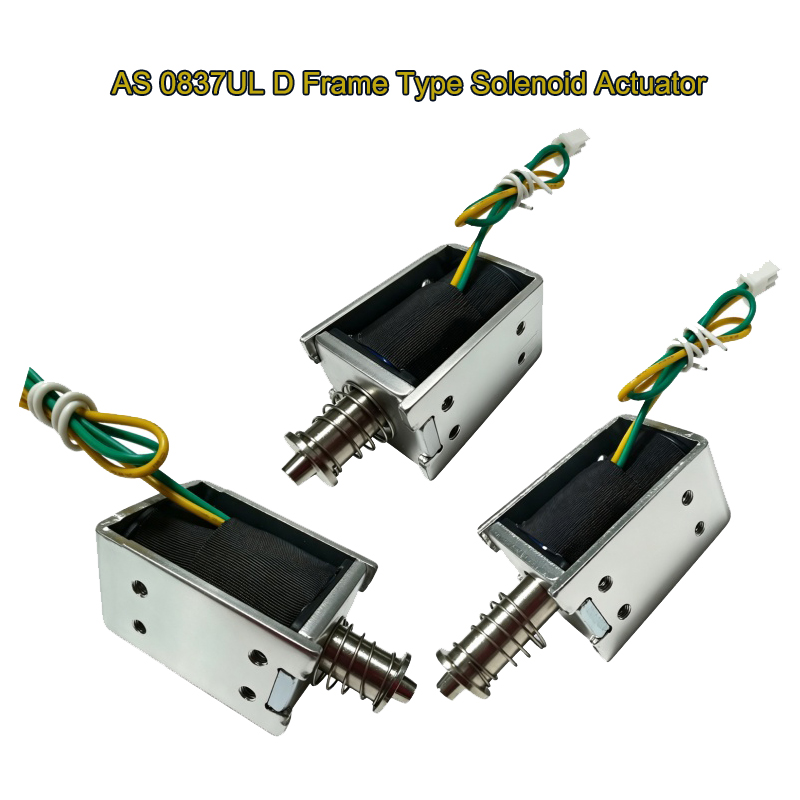

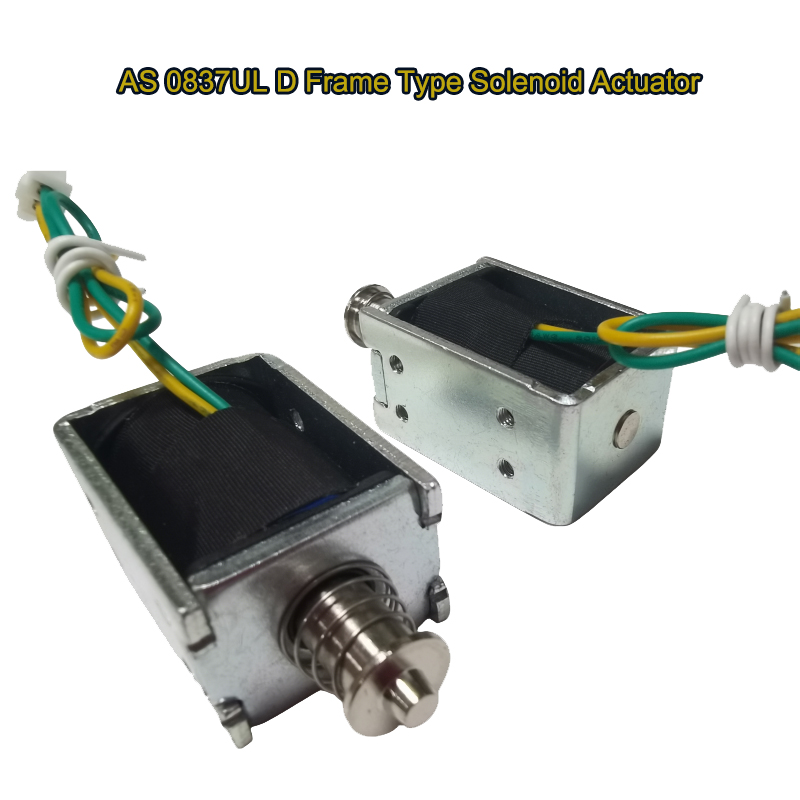

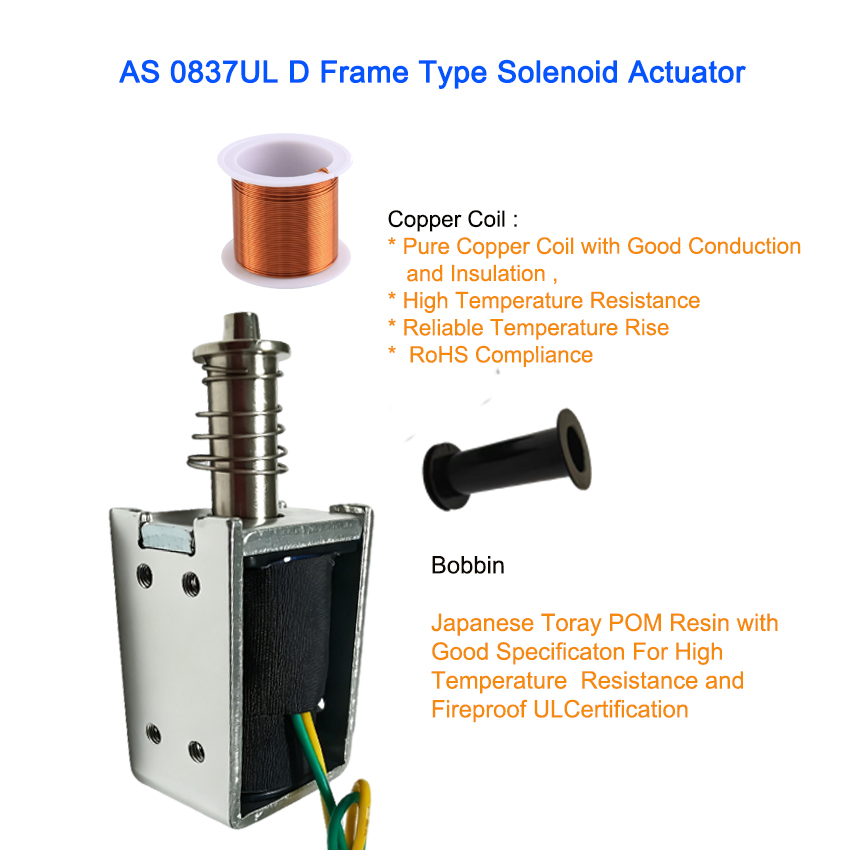

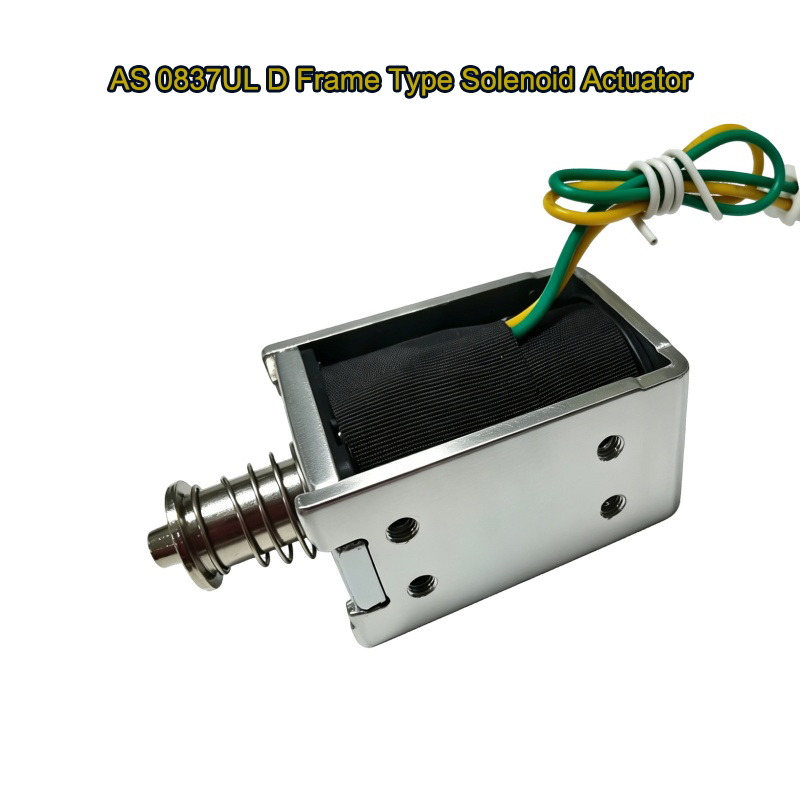

The AS 0837UL D Frame Solenoid Actuator is a slim open-frame linear push-pull electromagnet, designed specifically for industrial automation scenarios.It comes with a standard 10mm stroke, delivers steady output force while keeping power consumption low. It works with common 12V and 24V DC power supplies, featuring quick switch response and a long mechanical service life.Its solid D-frame design allows for simple, firm installation and accurate positioning, and it can run smoothly in both intermittent and continuous working modes.This solenoid is widely used in access control locks, vending machines, dispensing devices and automatic industrial equipment, as well as OEM electromechanical assemblies. We can also customize its terminals, springs and mounting structure to fit your different application requirements.
D Frame Type Push Pull Linear Solenoid: Key Advantages
The D Frame Type Push Pull Linear Solenoid is a practical and high-efficiency linear actuator for modern electromechanical systems. Built for industrial and civilian applications, it features stable bidirectional motion, compact sizing and outstanding cost performance. It is a better alternative to traditional single-action solenoids for automated mechanical designs.
Its greatest advantage is integrated bidirectional operation. It delivers both push and pull force in one unit, eliminating the need for two separate single-action solenoids. This greatly simplifies mechanical design and assembly. The precision D-shaped frame forms a premium closed magnetic circuit that concentrates magnetic flux efficiently. It generates stronger output force with lower power consumption and less heat buildup during continuous operation.

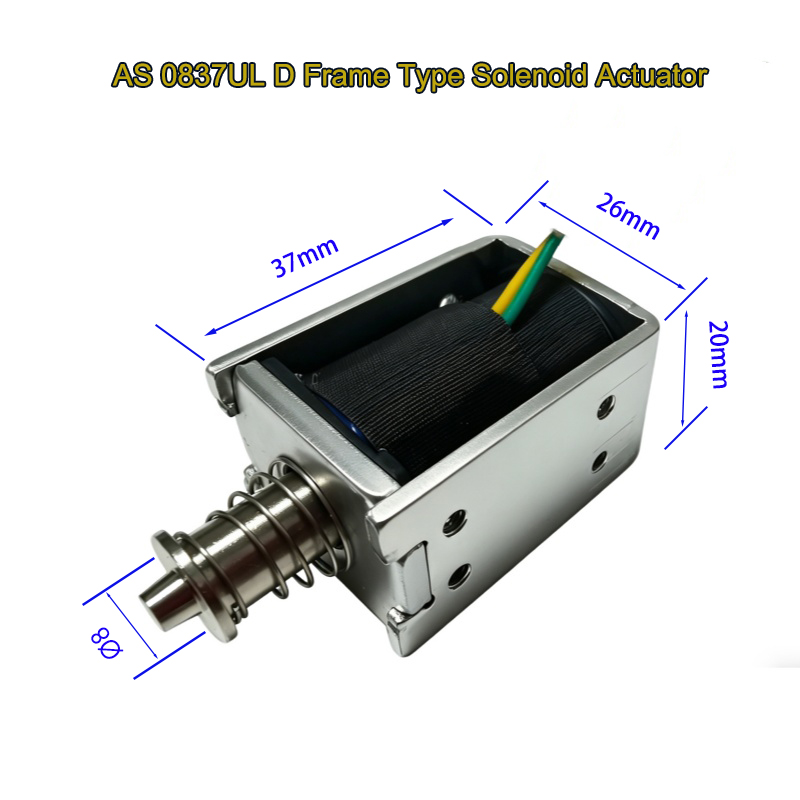

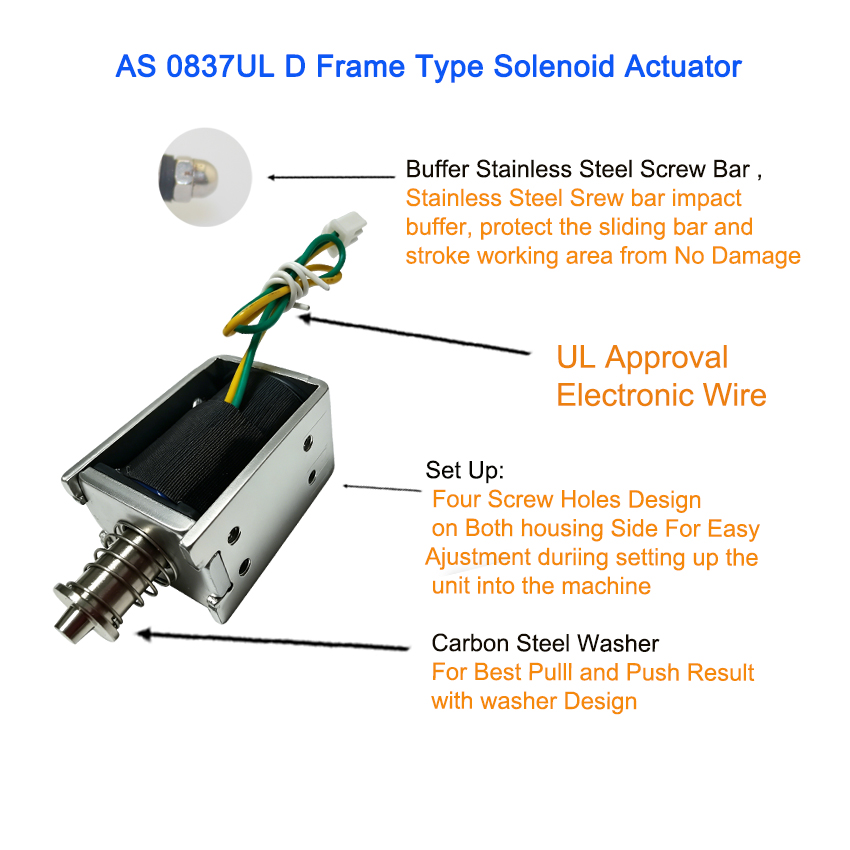

Designed with a streamlined structure, this solenoid saves significant installation space, ideal for compact devices with tight internal layouts. Its flat frame allows direct screw mounting without extra brackets, speeding up installation and ensuring stable, shake-free operation. It provides fast response and steady bidirectional force, supporting long-lasting, high-cycle repetitive work with consistent performance.
Thanks to its single-coil design, it effectively reduces material and control costs compared to conventional dual-coil bidirectional solenoids, while maintaining full push-pull functionality. It offers excellent compatibility with standard DC power supplies and simple polarity reversal circuits for easy integration.
Applications
This reliable solenoid has a wide range of applications, including access control locks, industrial automation units, smart household appliances, office retail equipment and precision electromechanical instruments. It acts as a space-saving, cost-effective linear actuation solution for all types of miniature machinery.
