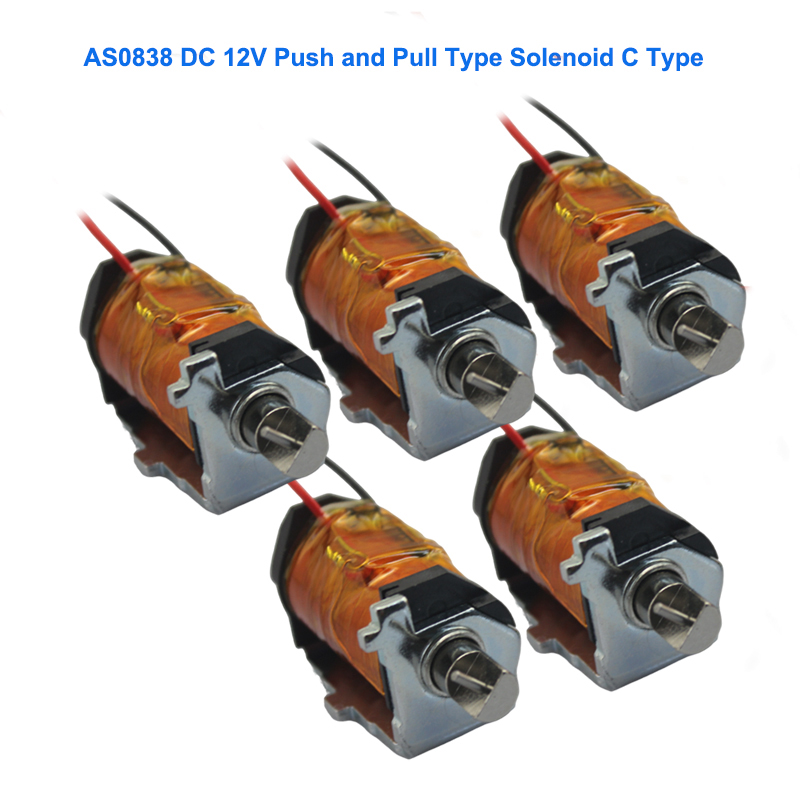

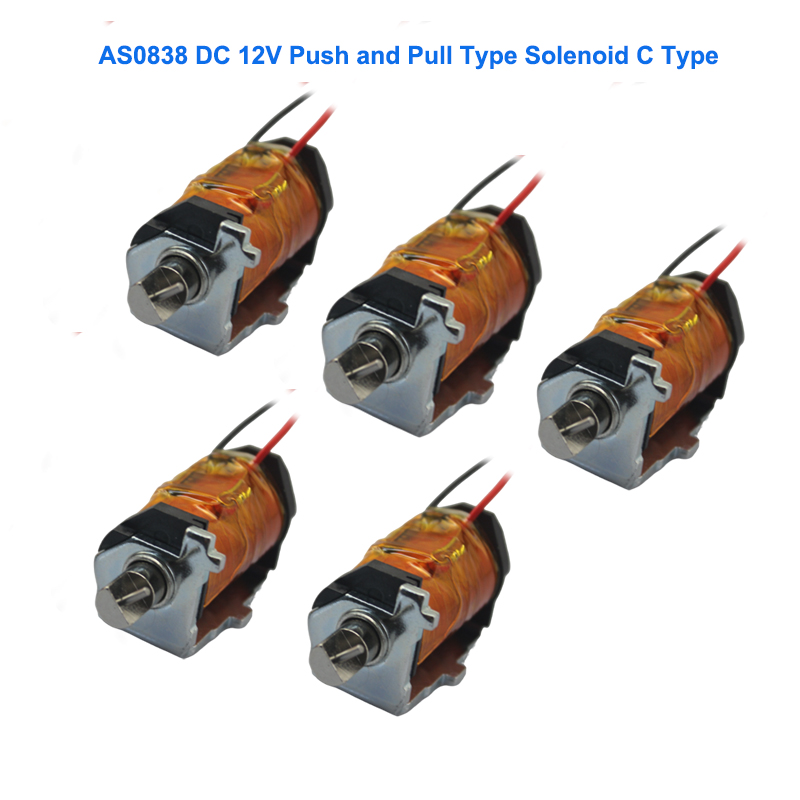

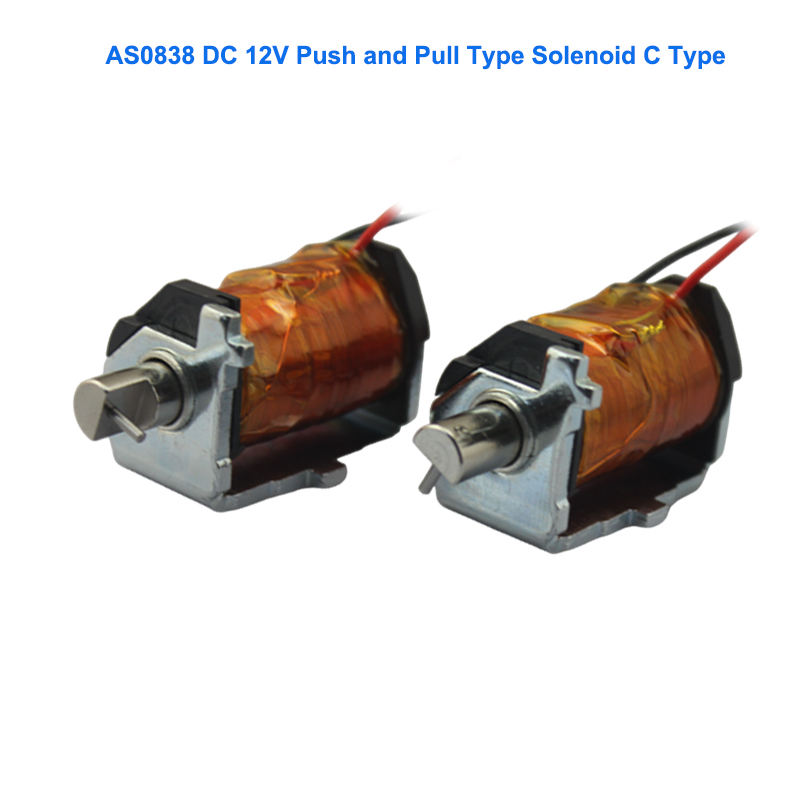

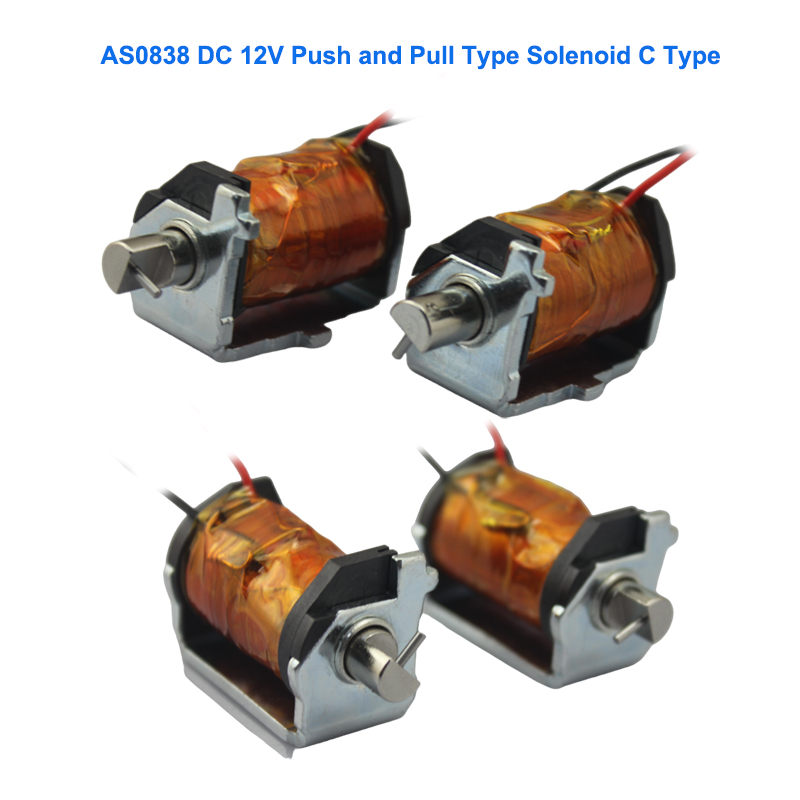

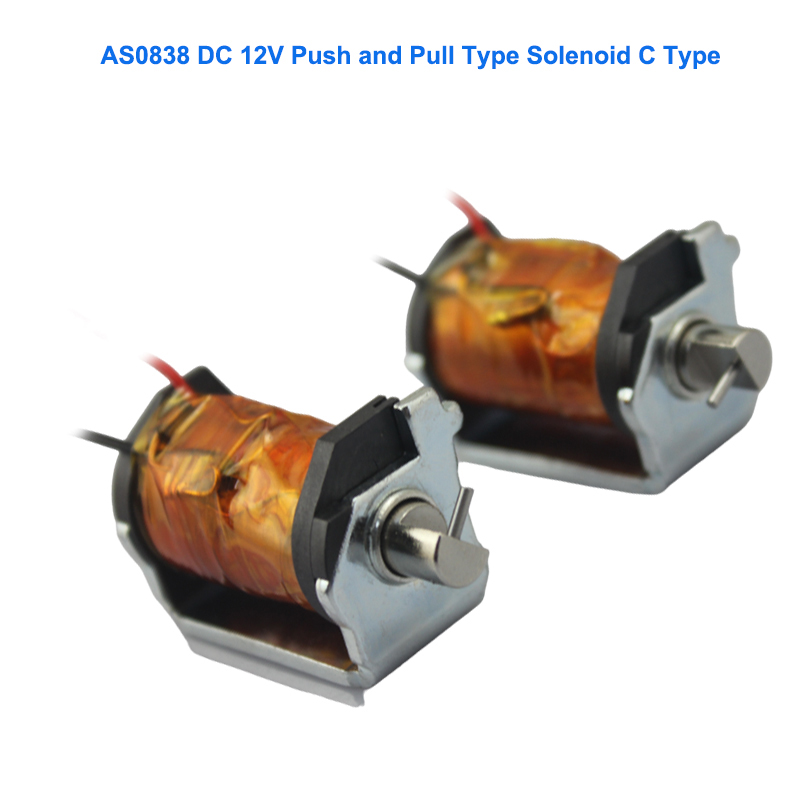

AS 0838 DC 12V C Type Push Pull Solenoid – High Performance

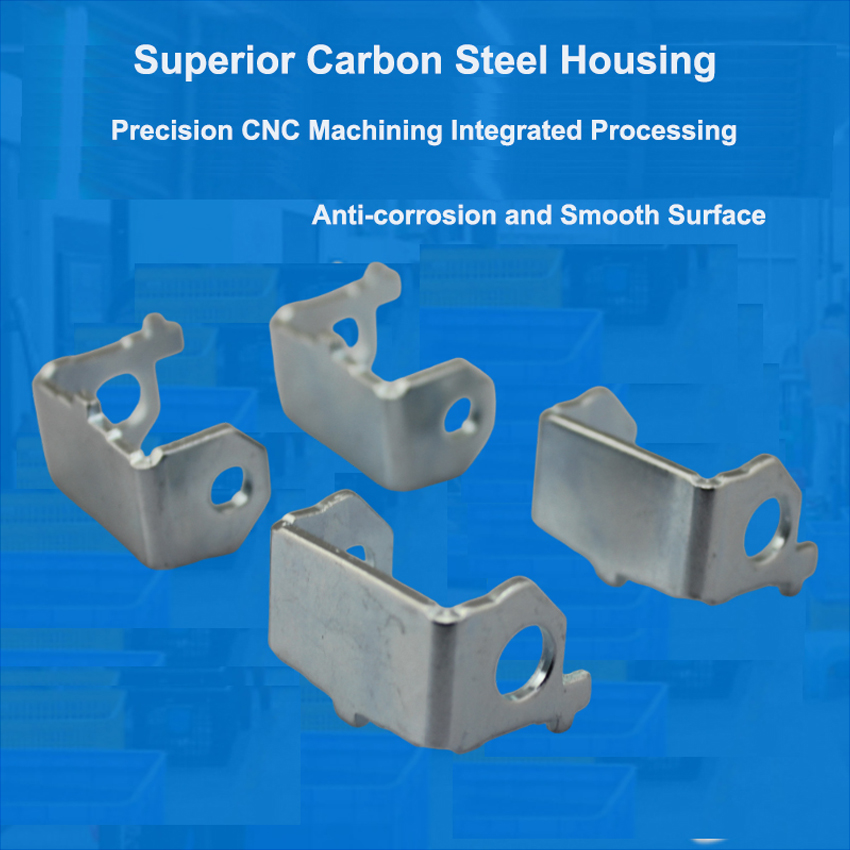

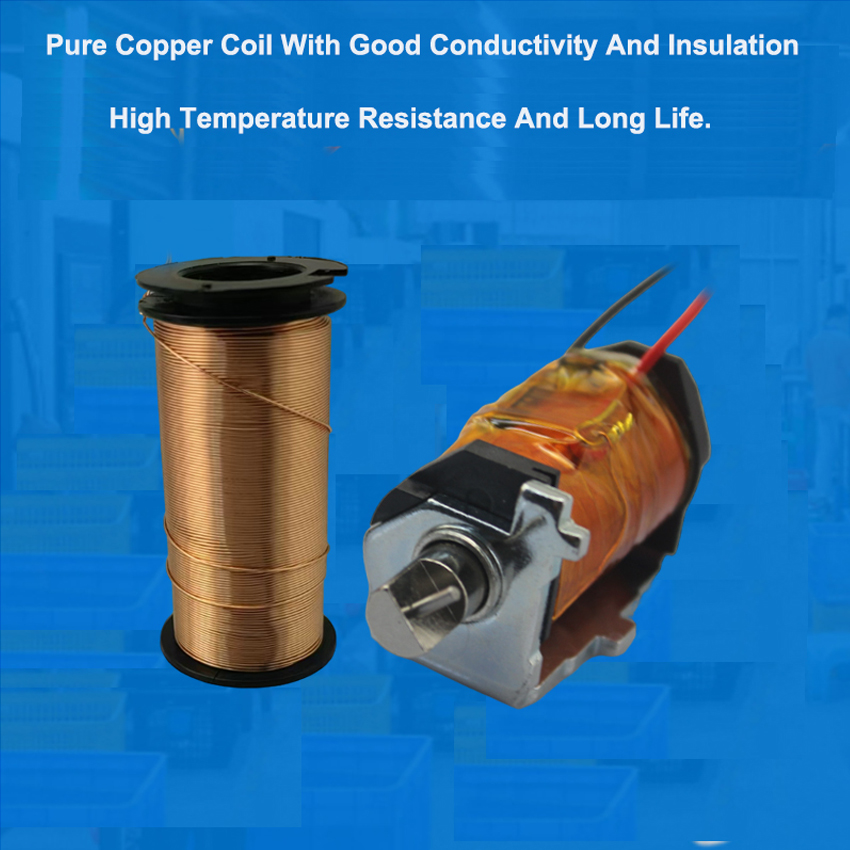

The AS 0838 DC 12V Push and Pull Type Solenoid C Type is an industrial-grade electromagnet engineered for precise linear motion control in automation, machinery and mechanical systems. Built with high-conductivity copper coil and zinc-plated carbon steel housing, it delivers stable push-pull force with low power consumption and excellent temperature resistance. Designed as a C Type solenoid, it features a robust structure for long-term intermittent/continuous duty cycles, with a reliable return spring for quick reset. This 12VDC solenoid offers consistent performance in harsh industrial environments, with easy mounting for seamless integration into existing equipment. Perfect for applications requiring accurate electromechanical conversion, the AS 0838 combines durability, efficiency and versatility for professional industrial use.

Categories: , Tags: , , , ,
Get a Quote

Product Video

Product Specification

Brand AstSolenoid Model Number AS 0838
Rated Voltage (V) DC 12 or 24V Rated Power(W) 10.28 W
Work Model Push and Pull Type Holding Force (N)  1000 GF
Stroke(mm) Customized Reset Time(s) 0.2
Service Life 500 Thousand Times Certification CE,ROHS,ISO9001,
Material Housing : Carbon Steel Lead Wire Length(mm) 200
Install Style screwing Hole Tolerance of Dimension  +/-  0.1 MM
Water-proof  None Insulation Class B
Hi-Pot Test AC 600V 50/60Hz 2s Non-excitation Holding Force 0
Working Temperature -10°C-100°C Duty Cycle 1-100%
Thread Depth(mm) / Payment Term TT, or LC At Sight
Sample Order Yes Warranty 1 Year
MOQ 500 pcs Supply Ability 5000 pcs per Week
Delivery Time 30 Days Port of Loading shenzhen

Product Description

Unit  Dimension : – 38 x 22.5 x 12 mm / 1.5 x 0.9 x 0.5 inch(L*W*H); Voltage: 12V; Force: 42N; Current: 1A;  Stroke : 10mm / 0.39 inch;
Unit Feature:
C type push solenoid has a push bar attached to the curved head of the plunger and when the plunger is pulled into the solenoid the push bar extends out the opposite end. The C Type Push solenoids have a return spring in place to return the plunger to a fixed position when no other force is applied to the plunger. The force applied by the return spring is included in the pull force – stroke relationship graph to the right.

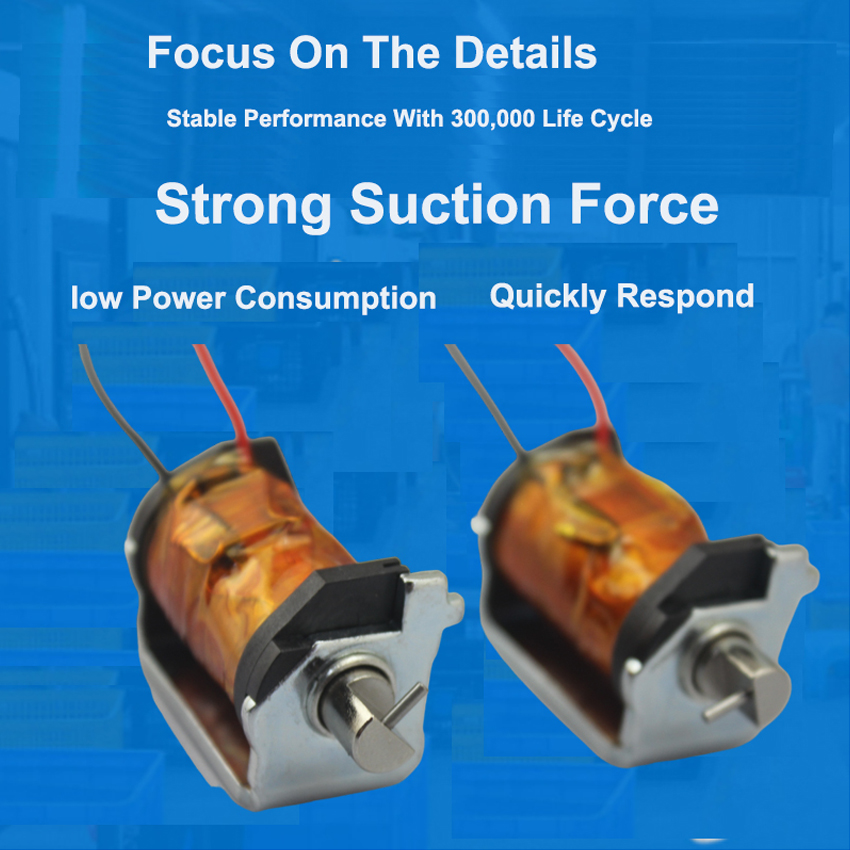

It is a stable performance and 300000 lifespan cycles for base application.
Maintains the open / closed state of the solenoid with short-time   energization, and achieves low power consumption by using a permanent magnet.
Power Source :  DC power-operated 12V
Push pull type, linear motion, plunger return, DC solenoid electromagnet.
Solenoids of this category work externally through pulling pushing in plunger.
When energized, doing work through pulling pushing in plunger joined object.
DC Frame type Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
