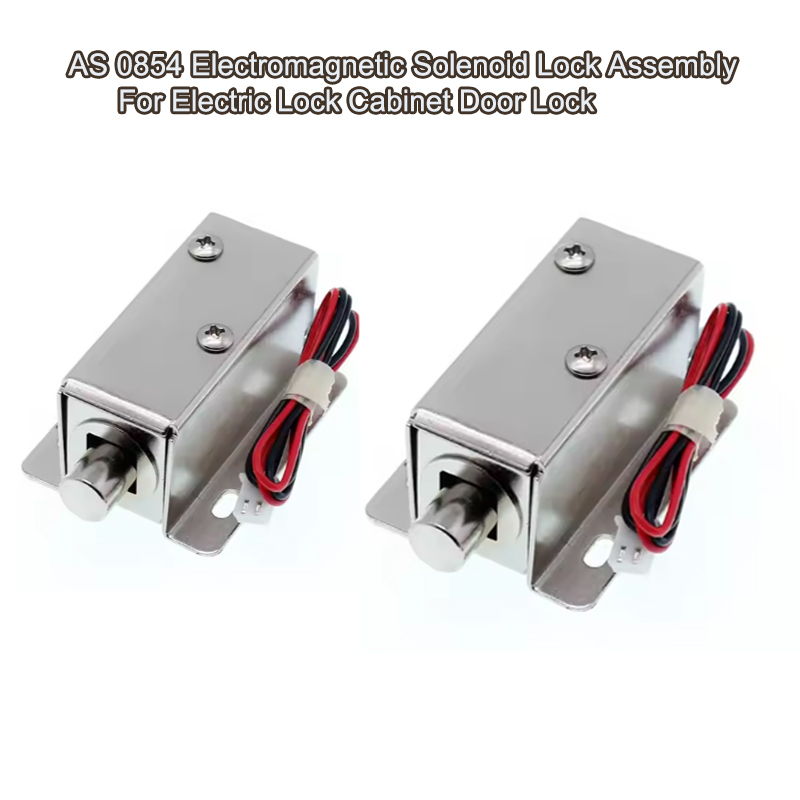

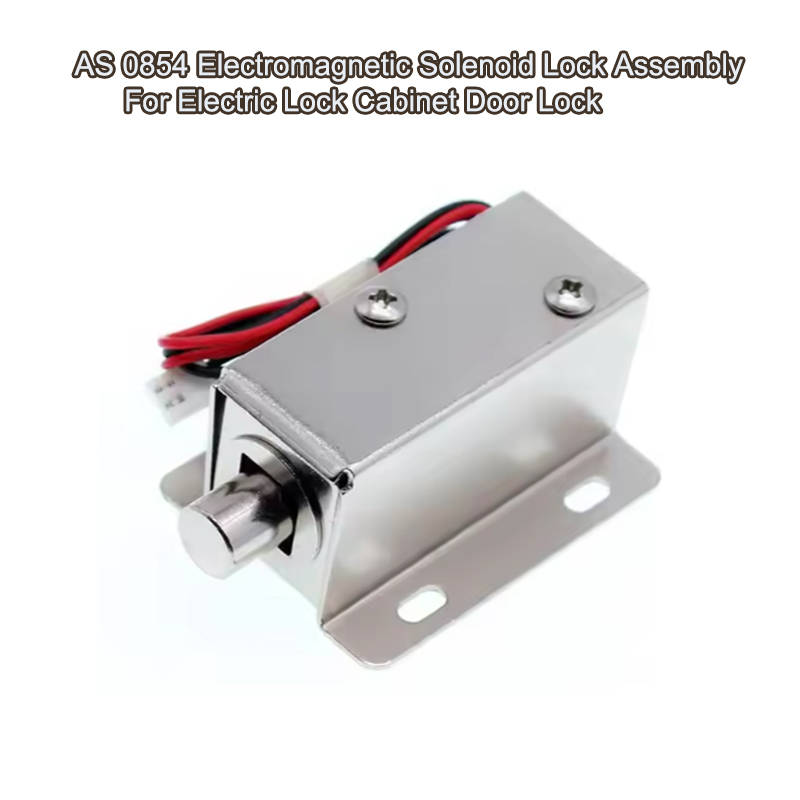

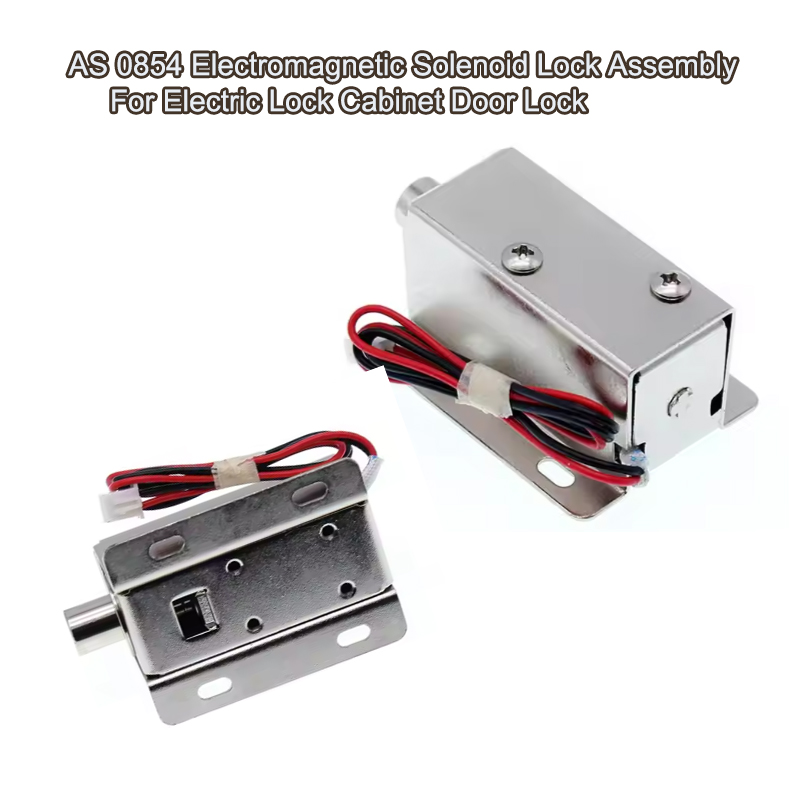

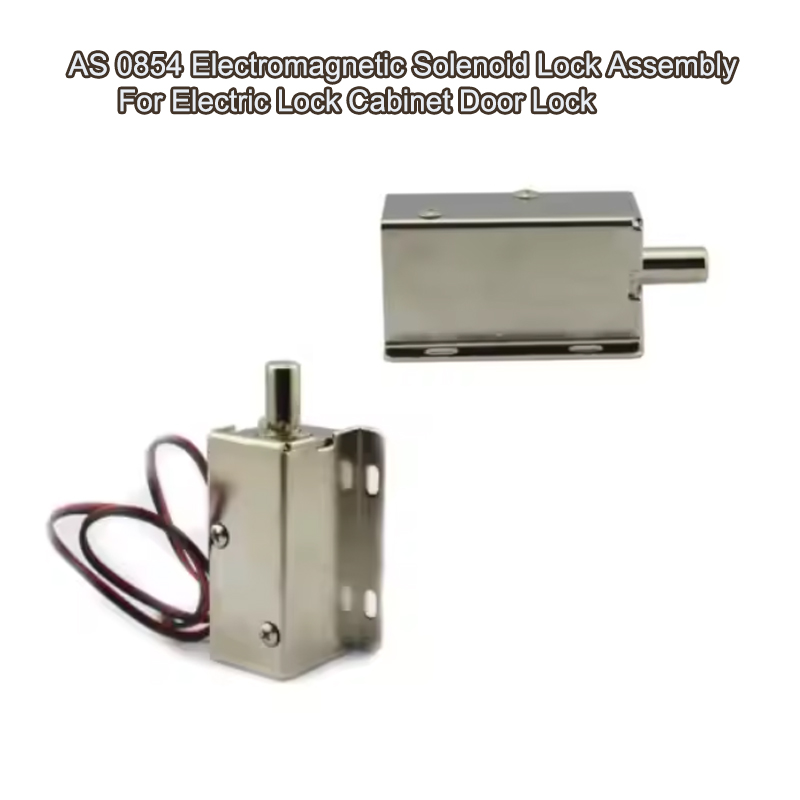

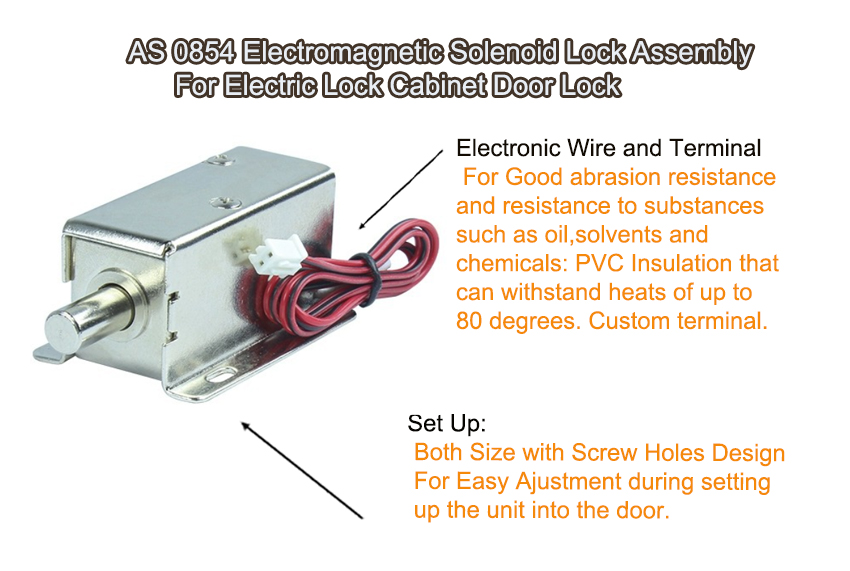

AS 0854 Electromagnetic Solenoid Lock Assembly – DC 12V/24V Cabinet Door Electric Lock

AS 0854 Electromagnetic Solenoid Lock Assembly is a high-performance electric lock for cabinet door security, available in DC 12V/24V with 13-20W rated power and 200-800gf holding force. Made of zinc-coated carbon steel, it resists rust and deformation, features over 500,000 operations service life and CE/ROHS/ISO 9001 certification. Equipped with a tamper-proof hidden locking mechanism for superior security, it has a push-type design and customizable stroke for flexible integration. Compatible with control circuit boards, it’s ideal for storage, filing, logistics and vending machine cabinets in industrial and commercial scenes, and works stably at -10°C to 100°C for reliable, long-lasting security.

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 0854
Rated Voltage (V)	DC 12 V or 24V	Rated Power(W)	13–20 W

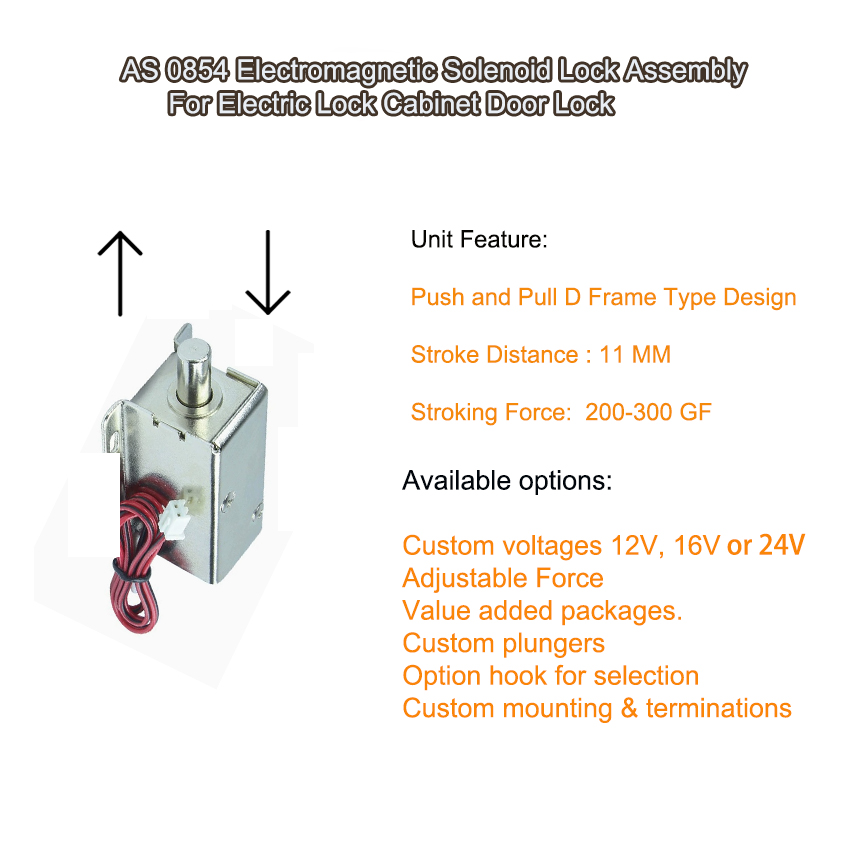

Work Model	Push Type	Holding Force (N)	200 —800 GF
Stroke(mm)	Customized	Reset Time(s)	20 S
Service Life	300 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Carbon Steel Housing with Zinc Coating	Lead Wire Length(mm)	200
Install Style	Mounnted Screw Holes	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	F 155 Degree 9 Cel. )
Hi-Pot Test	AC 600V 50/60Hz 1 s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	15 %
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Product Description

Working Principle

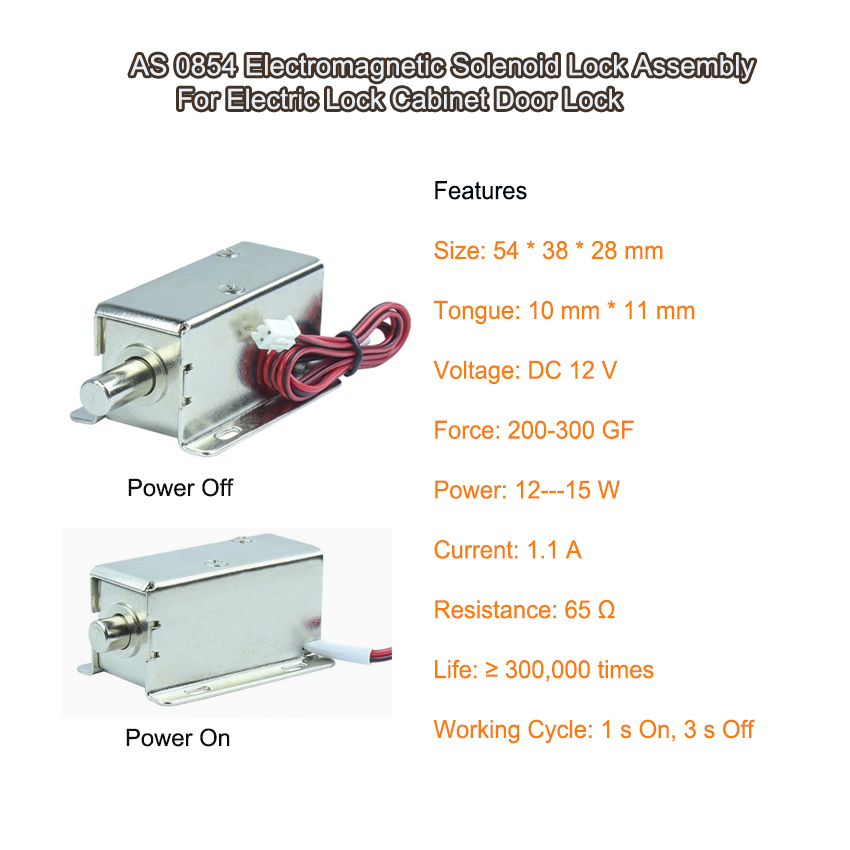

This cabinet electromagnetic door lock operates on electromagnetic principles (similar to electromagnets/DC solenoid valves). When current flows through the lock’s electromagnetic coil, strong magnetic force is generated, attracting the adsorption iron plate to lock the door securely.

Control Circuit

The microcontroller (e.g., single-chip) based control circuit is the core. It receives/processes unlock signals (fingerprint, password, RFID), controls lock on/off, and some models record access logs for added functionality.

Power Supply

Powered by mains (via adapter) or batteries, with optional backup power to ensure normal operation during power outages for uninterrupted security.

Wide Application

Requires matching control circuit board; ideal for storage, mail, logistics, filing cabinets, vending machines, shoe cabinets. Used in schools, communities, hotels, factories, supermarkets and more.

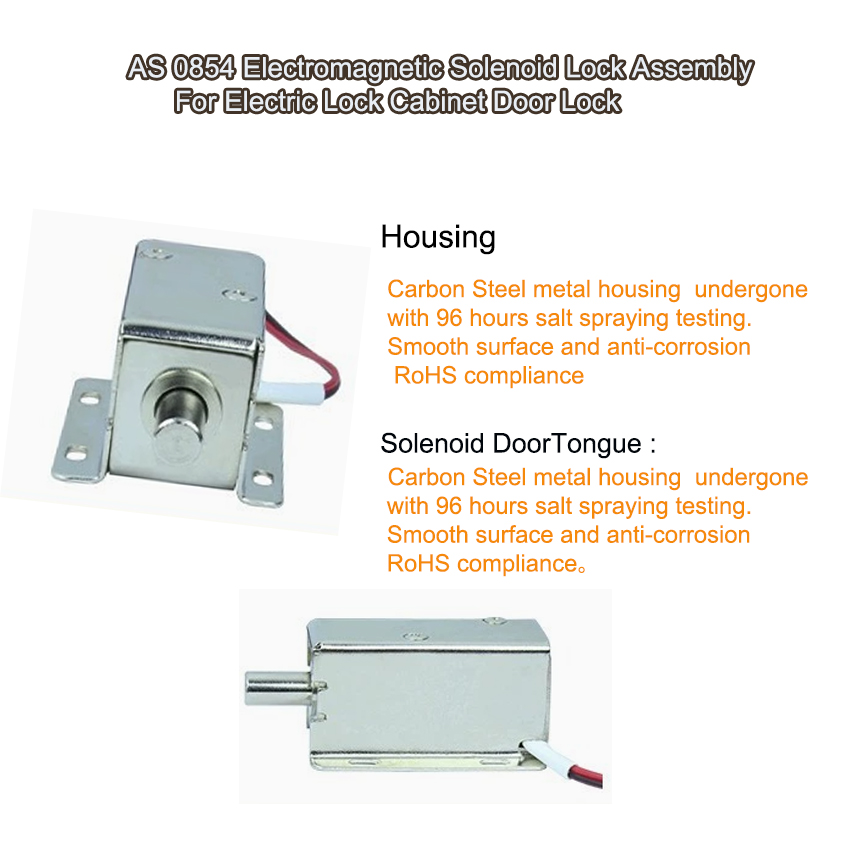

Premium Material

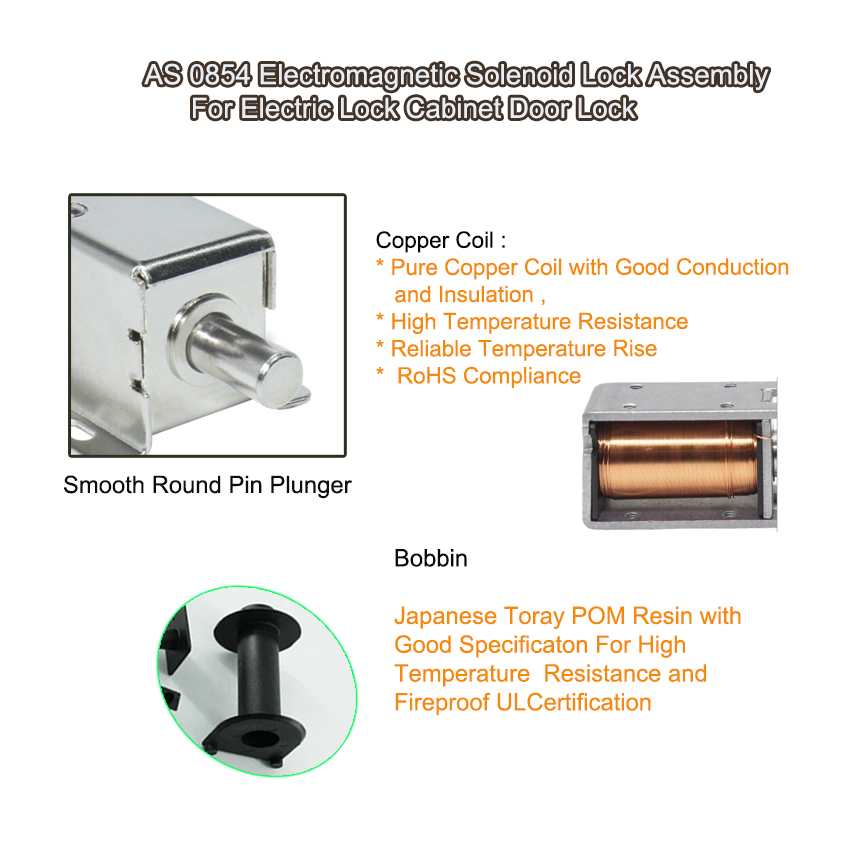

Shell and internal components are all carbon steel, anti-deformation and rust-proof for long-term durability.

Long Service Life

Supports no less than 500,000 operations under normal use for reliable long-term performance.
