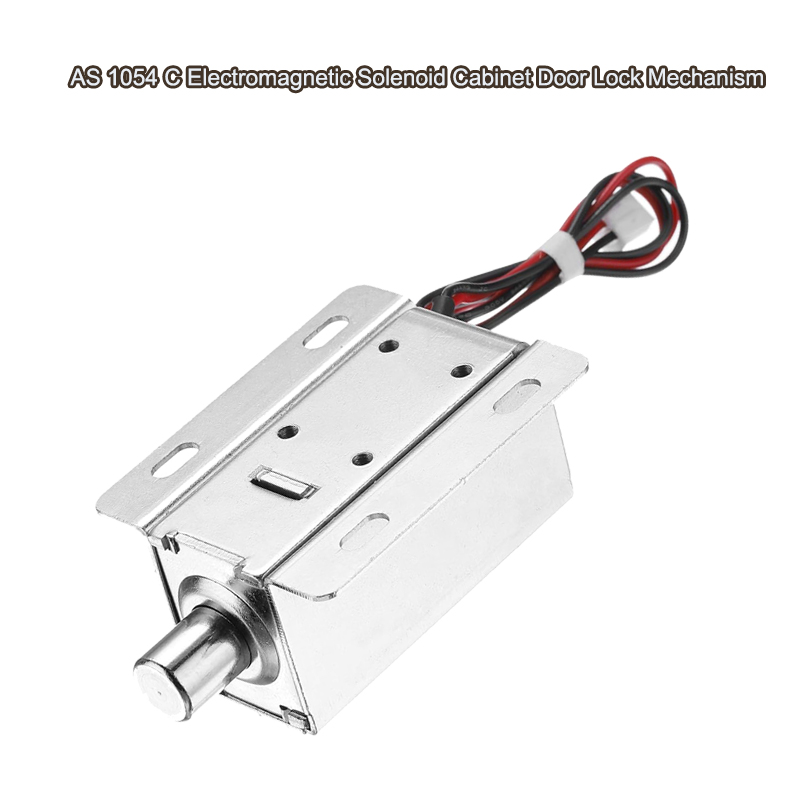

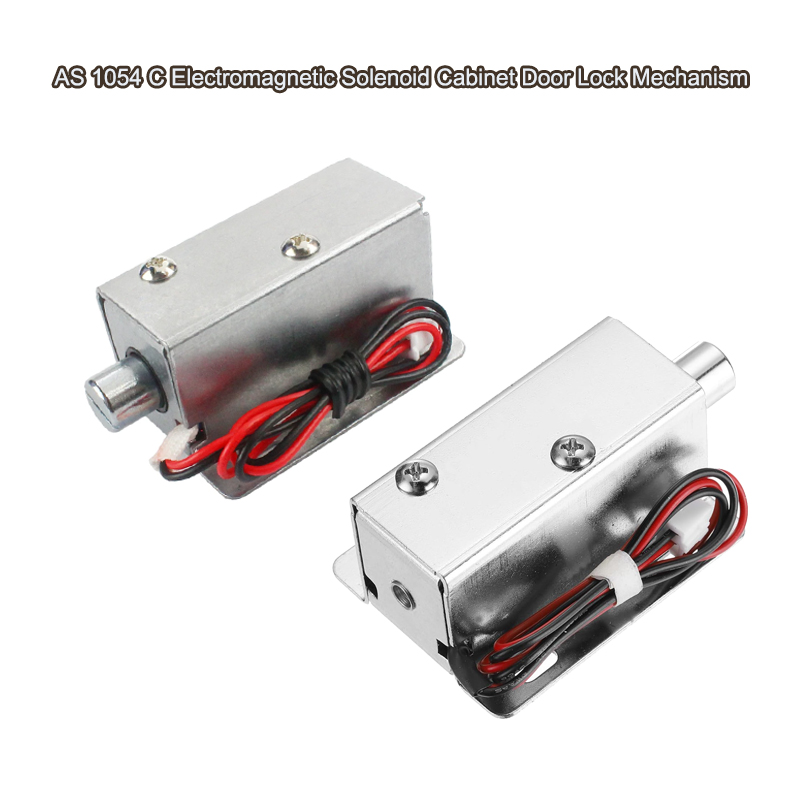

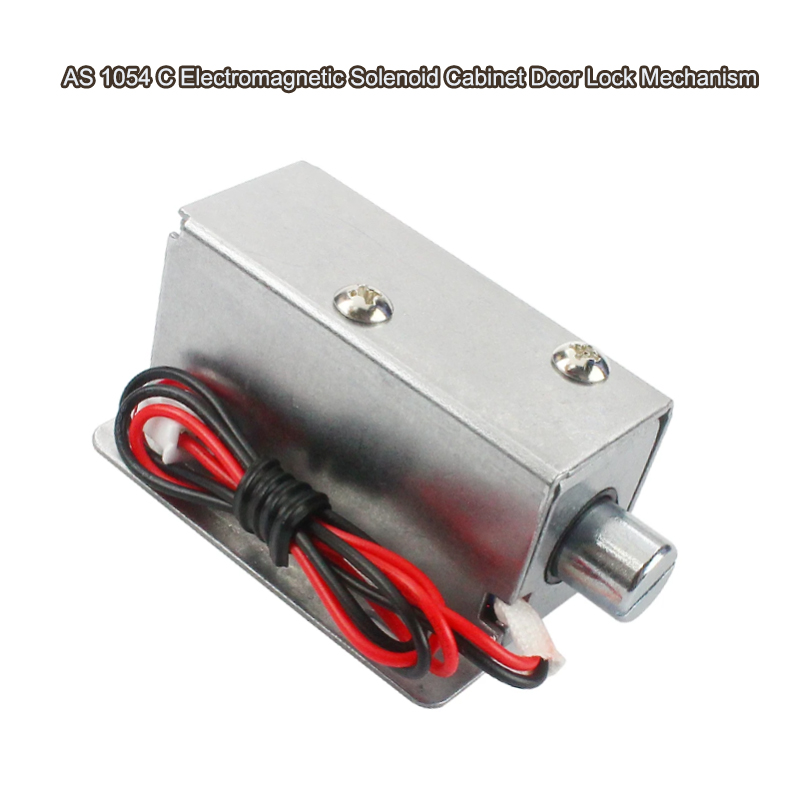

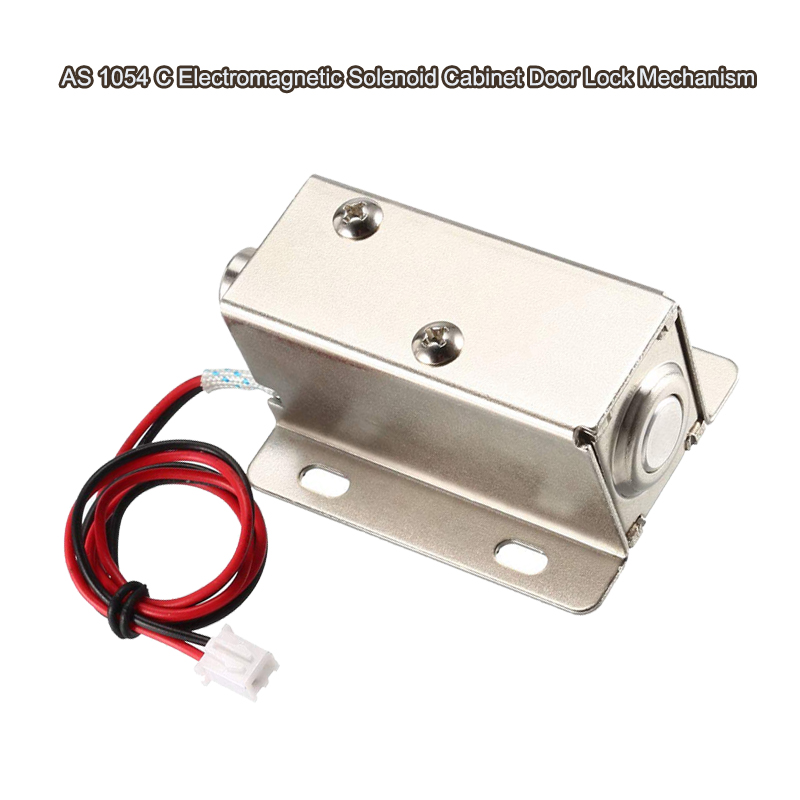

AS 1054 C Cabinet Door Electromagnetic Solenoid Lock Mechanism, High Durability

Product Video

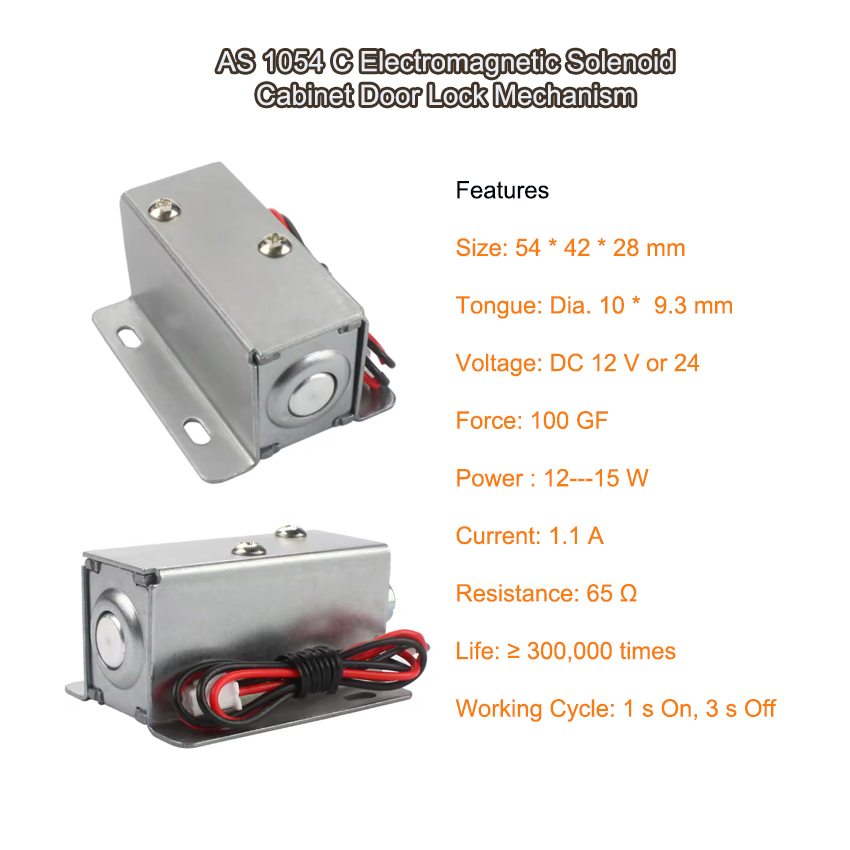

Product Specification

Brand	AstSolenoid	Model Number	AS 1054 C
Rated Voltage (V)	DC 12 V	Rated Power(W)	13–20 W
Work Model	Push Type	Holding Force (N)	200 —800 GF

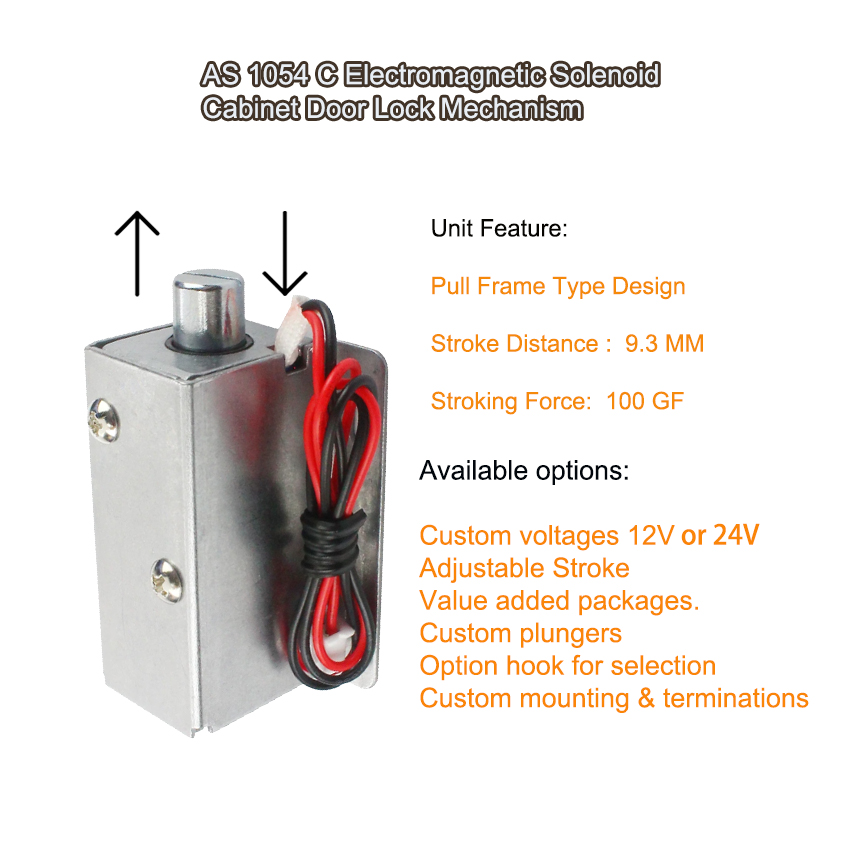

Stroke(mm)	Customized	Reset Time(s)	20 S
Service Life	300 Thousand Times	Certification	CE,ROHS,ISO9001,

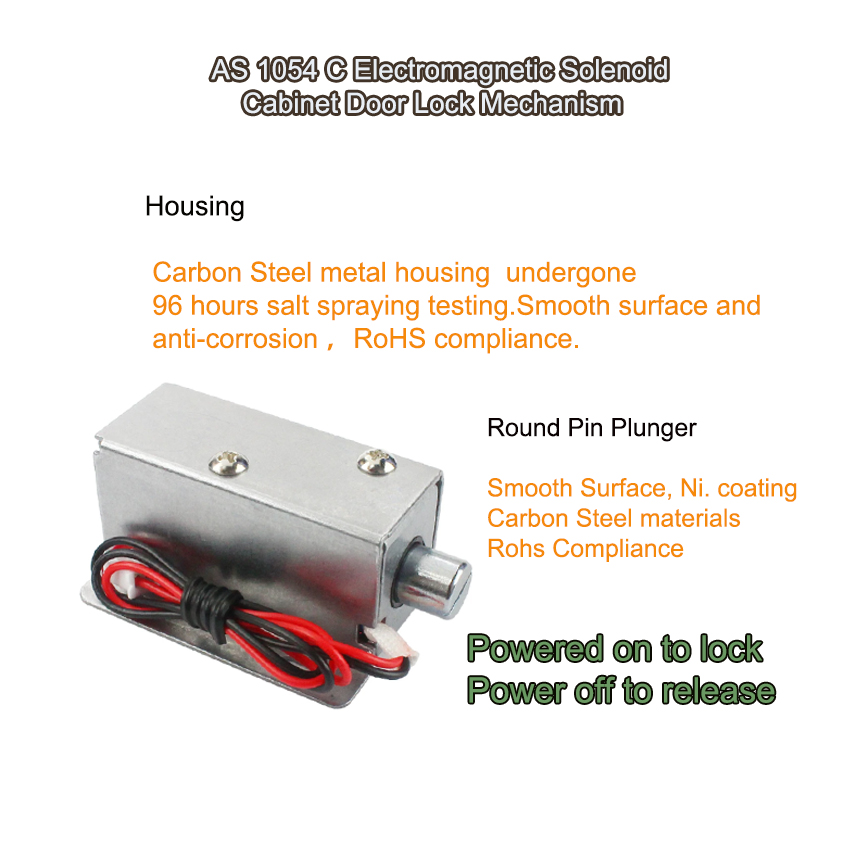

Material	Carbon Steel Housing with Zinc Coating	Lead Wire Length(mm)	200

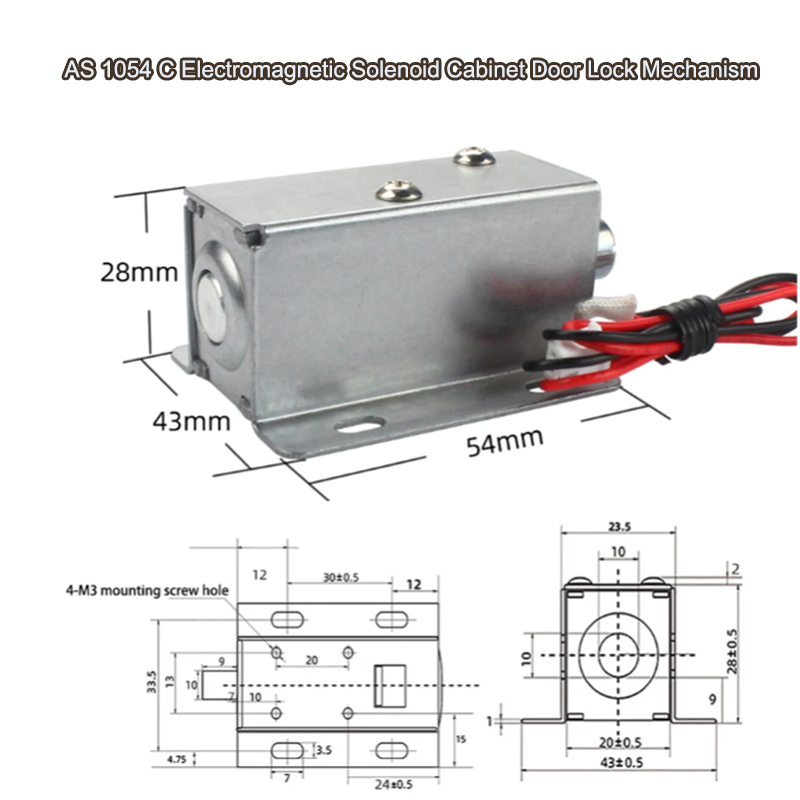

Install Style	Mounted Screw Holes	Tolerance of Dimension	+/-  0.1 MM
Water-proof	None	Insulation Class	F 155 Degree 9 Cel. )
Hi-Pot Test	AC 600V 50/60Hz 1 s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	15 %
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Product Description

Unit Features

This DC 12V cabinet door lock solenoid valve assembly fits vending machines, storage racks, filing cabinets and more. It has a hidden unlock function for emergencies, with normally locked mode (locks when power off, unlocks when power on). Stable, durable, energy-saving and long-lasting, it features premium anti-theft and shockproof design. Simply connect the wires to power on and control cabinet door opening/closing effortlessly.

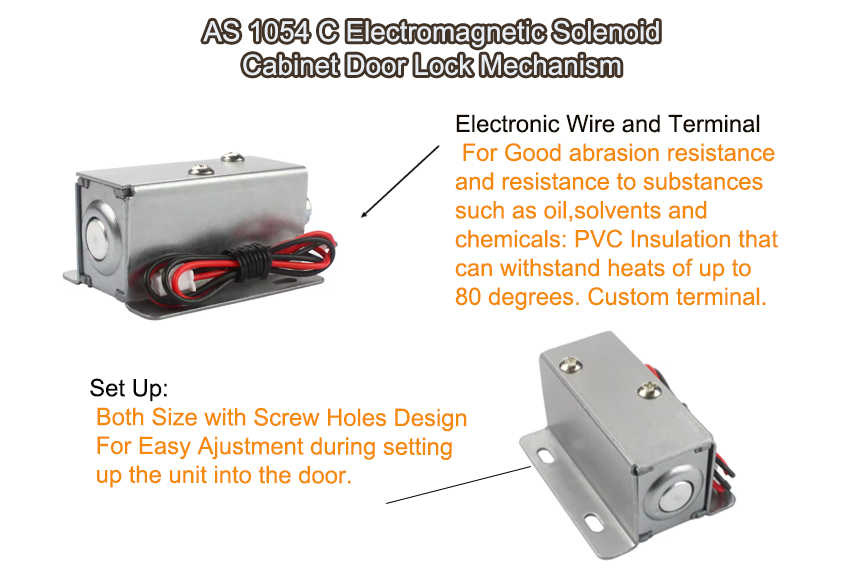

Note: Polarity must be observed for non-connector wiring—red wire to positive terminal, black wire to negative terminal.

Wide Application

Requires a matching control circuit board; widely used for storage, mail, logistics, filing, shoe cabinets and vending machines. Suitable for schools, community service stations, hotels, factories, supermarkets and other commercial/industrial venues.

Premium Material

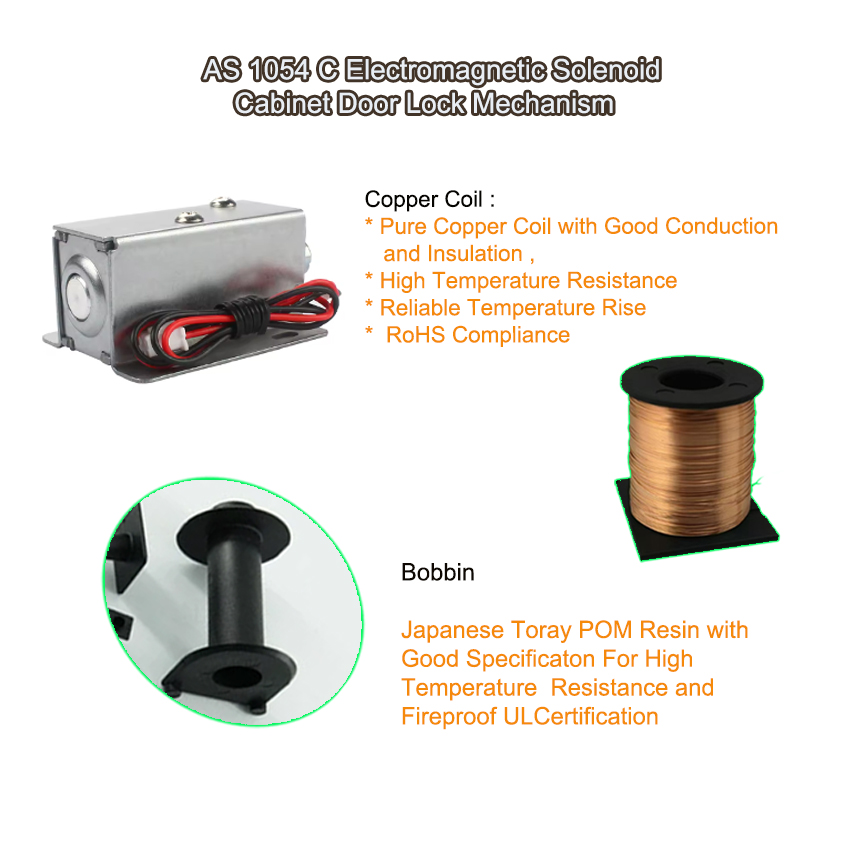

Shell is carbon steel plate, internal components are solenoid coils—anti-deformation and rust-proof for long-term use.

Long Service Life

Supports no less than 500,000 operations under normal use for reliable performance.
