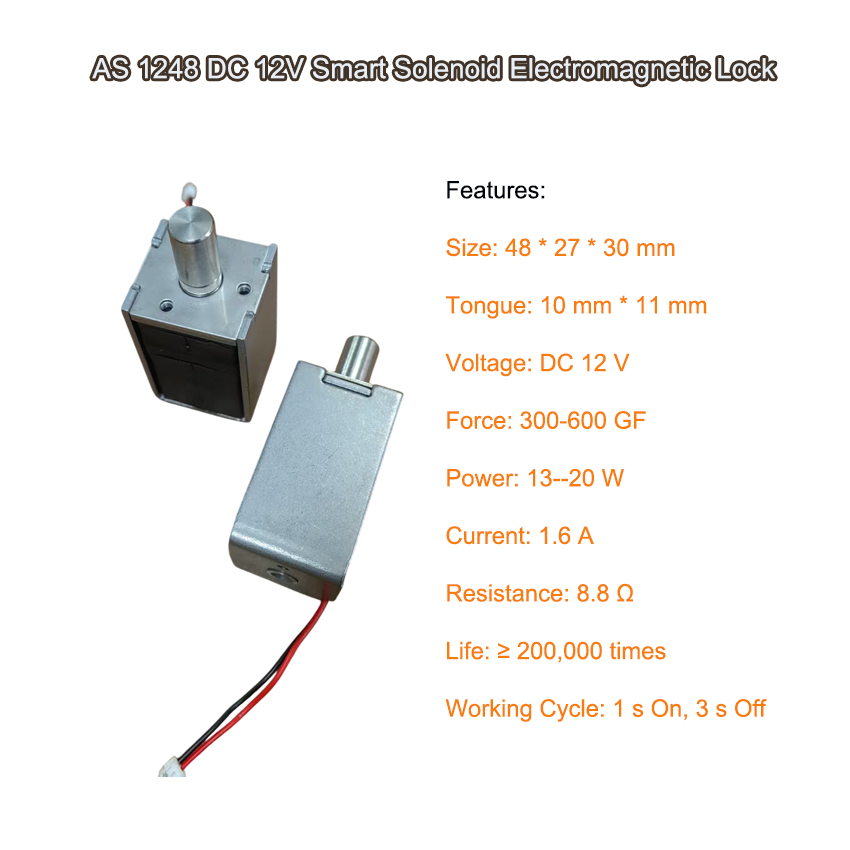

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock

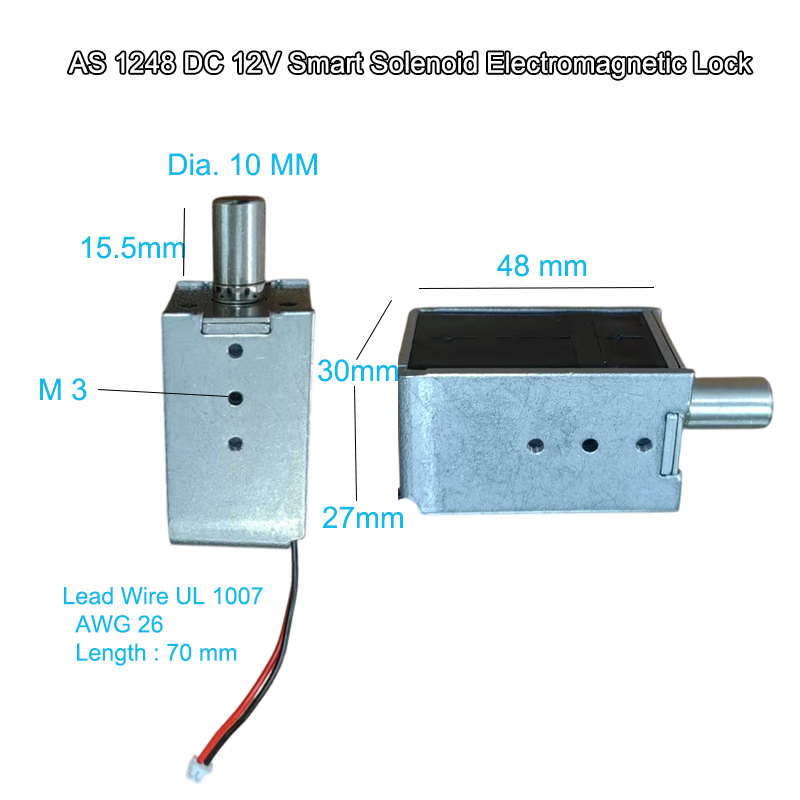

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock - Image 2

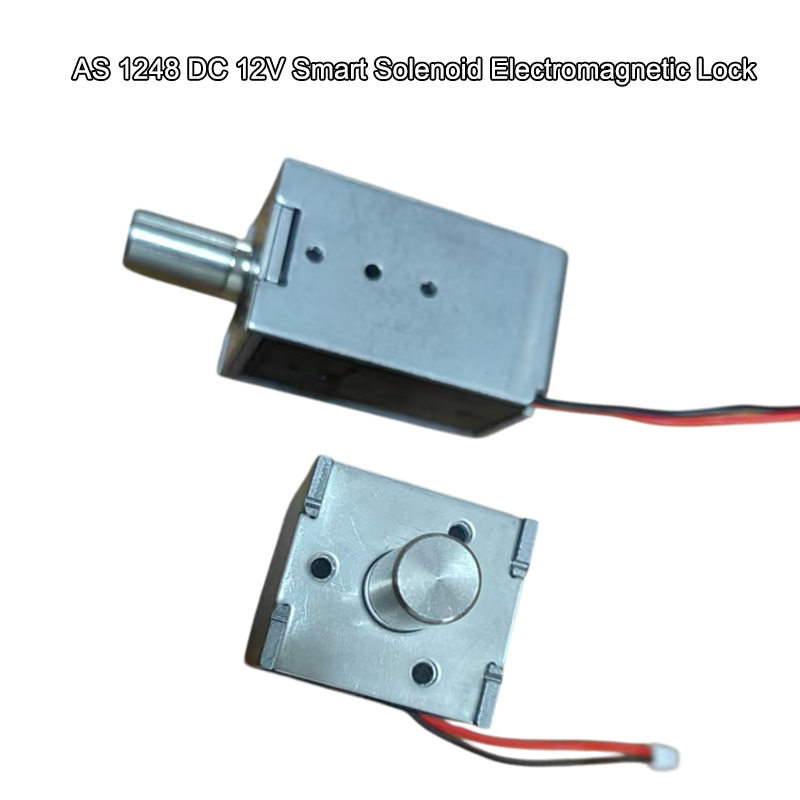

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock - Image 3

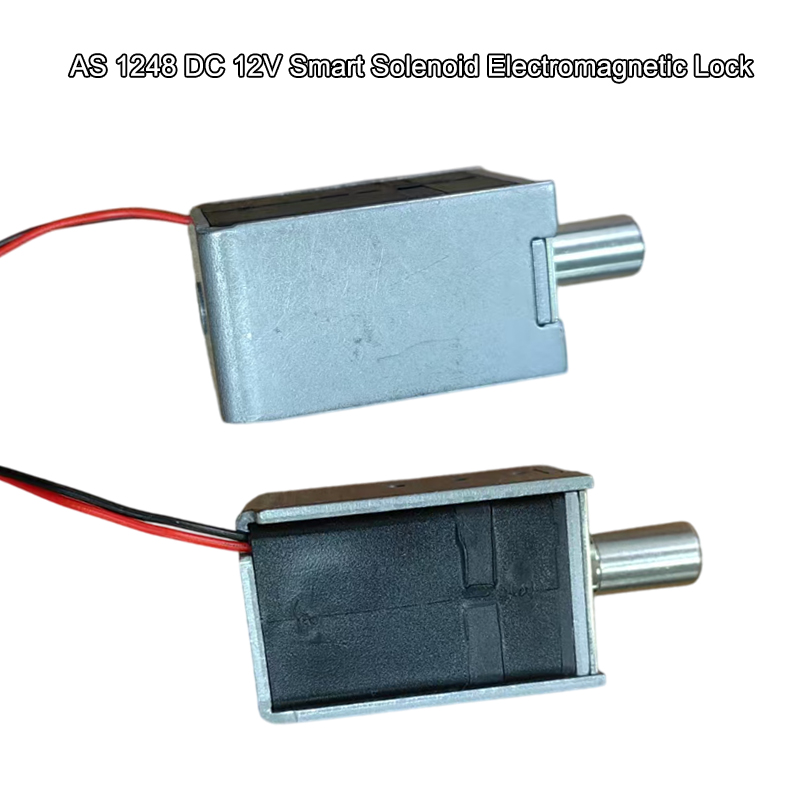

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock - Image 4

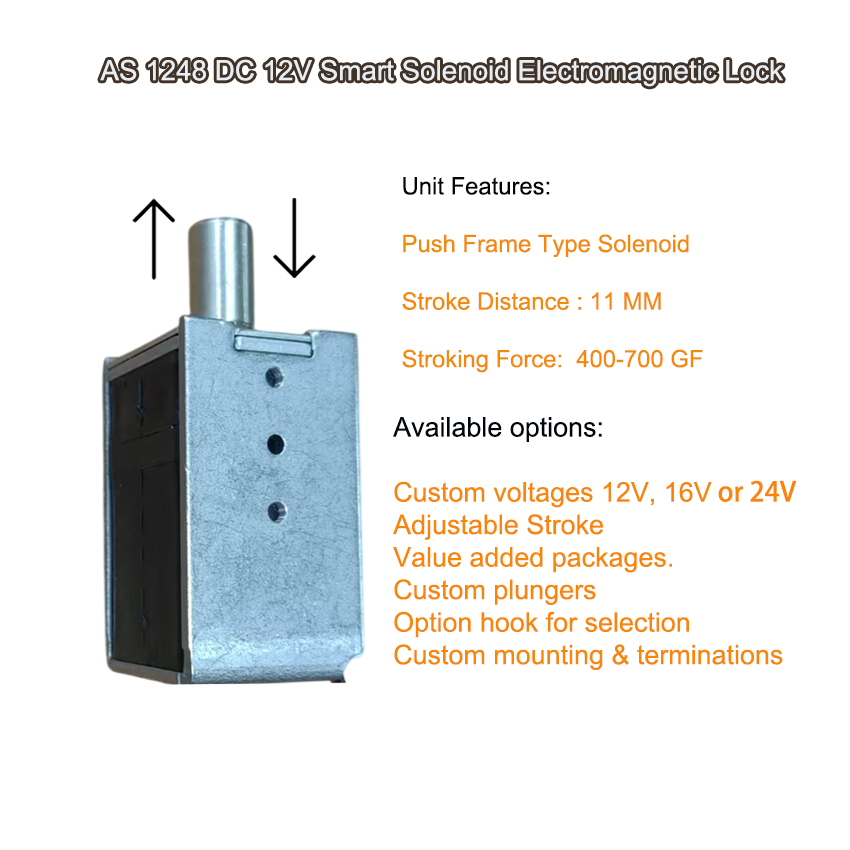

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock - Image 5

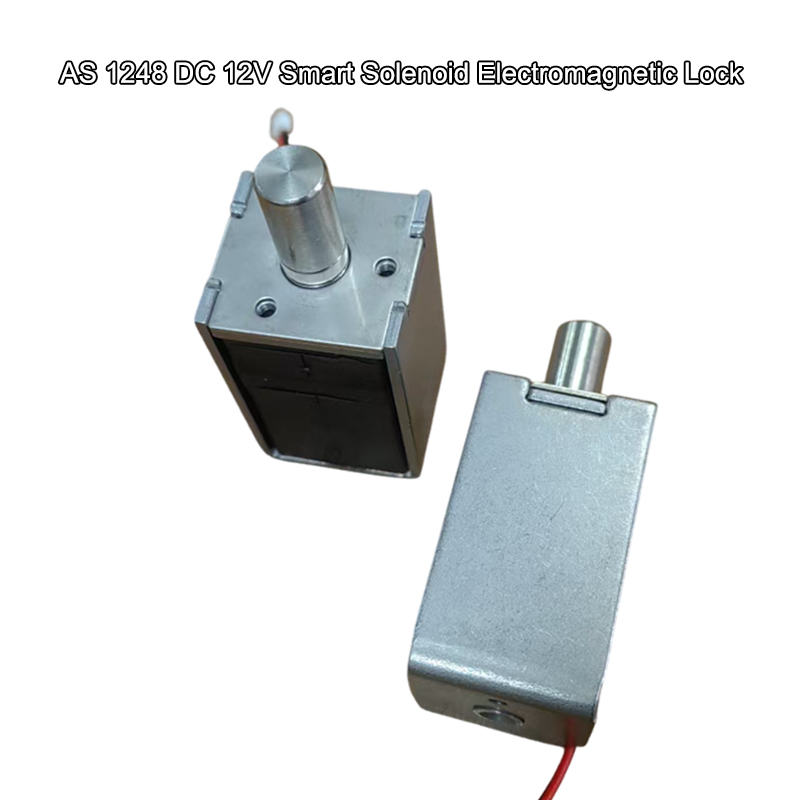

AS 1248 DC 12V Smart Electromagnetic Lock - High Precision Solenoid Lock - Image 6
,

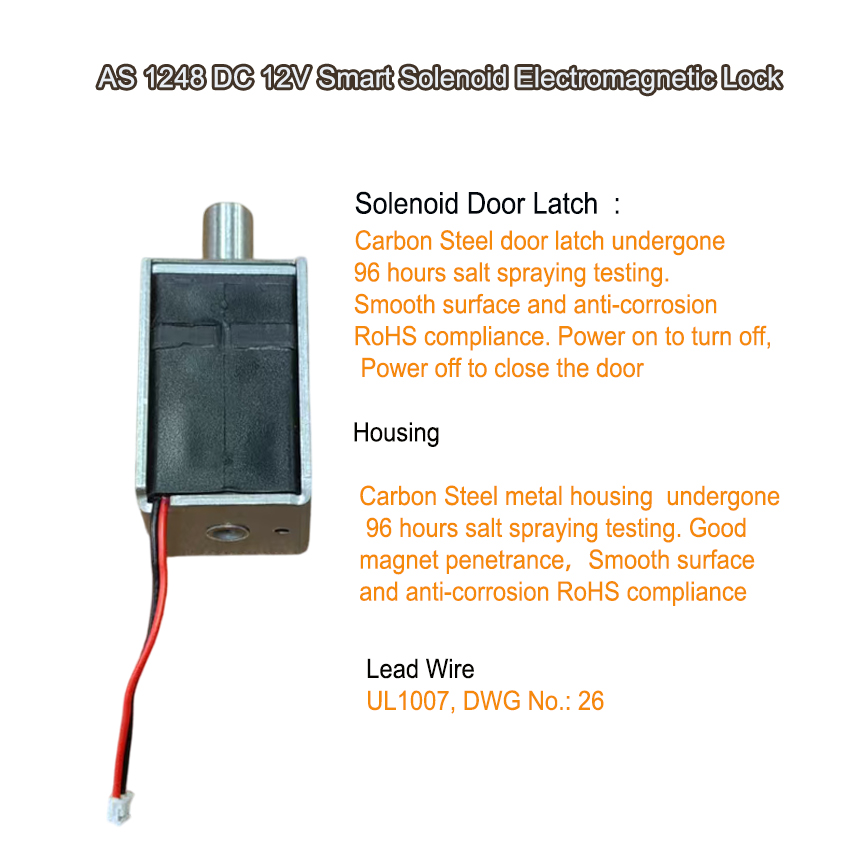

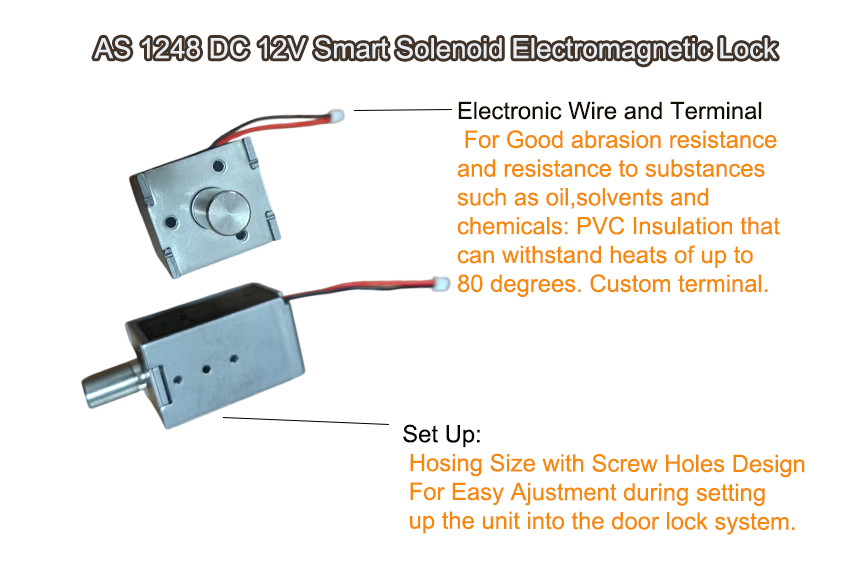

AS 1248 DC 12V Smart Electromagnetic Lock – High Precision Solenoid Lock

AS 1248 DC 12V Smart Solenoid Electromagnetic Lock is an industrial-grade smart security solenoid, engineered for cabinet and light door systems. Constructed with durable rust-proof materials, this DC 12V solenoid lock features energy-efficient design and stable, high-precision electromagnetic actuation for reliable locking and unlocking. It has a reinforced anti-theft and shockproof structure, with seamless integration with control circuit boards for smart system deployment. Ideal for storage, logistics, filing cabinets and vending machines in schools, factories, hotels and supermarkets. With over 500,000 cycle service life and CE certification, it’s a dependable, cost-effective electromagnetic security solution for commercial and industrial use.

Categories: , Tags: , , , ,
Get a Quote

Product Video

Product Specification

Brand AstSolenoid Model Number AS 1248
Rated Voltage (V) DC 12 V Rated Power(W) 13–20 W
Work Model Push Type Holding Force (N)  200 —800 GF
Stroke(mm) Customized Reset Time(s) 20 S
Service Life 300 Thousand Times Certification CE,ROHS,ISO9001,
Material Carbon Steel Housing with Zinc Coating Lead Wire Length(mm) 200
Install Style Mounnted Screw Holes Tolerance of Dimension  +/-  0.1 MM
Water-proof  None Insulation Class F 155 Degree 9 Cel. )
Hi-Pot Test AC 600V 50/60Hz 1 s Non-excitation Holding Force 0
Working Temperature -10°C-100°C Duty Cycle 15 %
Thread Depth(mm) / Payment Term TT, or LC At Sight
Sample Order Yes Warranty 1 Year
MOQ 500 pcs Supply Ability 5000 pcs per Week
Delivery Time 30 Days Port of Loading shenzhen

Product Description

A Complete Guide to Solenoid Lock Systems
A solenoid lock system is an electromechanical device that uses electric current to control its locking mechanism, widely applied to doors, cabinets, safes and security systems. It works by energizing a solenoid coil to produce a magnetic field that activates the lock.
Core Components: Solenoid (electromagnetic coil core), locking mechanism (latch/bolt), power supply (battery/mains), control circuit (regulates current), access control (keypad/card/fingerprint scanner).
Working Principle: Current through the coil creates a magnetic field that pulls the metal bolt/latch to lock the door; cutting power dissipates the field and releases the lock for opening.
Installation Steps: Select a suitable lock → Modify door/frame for fit → Mount solenoid and locking mechanism (align precisely) → Wire to control circuit & power supply → Configure access control settings.
Implementation Considerations: Meet security standards (tamper/anti-tamper features); add power backup; select fail-safe/fail-secure mode; conduct regular maintenance to avoid malfunctions.
Key Advantages: Fast, reliable operation (ideal for high-security use); seamless integration for remote access control; robust, durable build with long service life; customizable fail-safe/fail-secure design for diverse applications.
