| Specification | |||
| Brand | Dr. Solenoid | Model Number | AS 2214 |
| Rated Voltage (V) | DC 12 V | Rated Power(W) | 5.8 W |
| Work Model | 2 Ways Valve | Holding Force (N) | 1500 GF |
| Valve | 2 Ways Liqid Control | Reset Time(s) | 0.3 Sec. On, 0.3 Sec. Off |
| Service Life | I Millioin Times | Certification | CE,ROHS,ISO9001, |
| Material | Carbon Steel Housing with Telfon Plated Coating | Lead Wire Length(mm) | 200 |
| Install Style | Adjustable Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | F 155 Degree |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |
All Solenoids

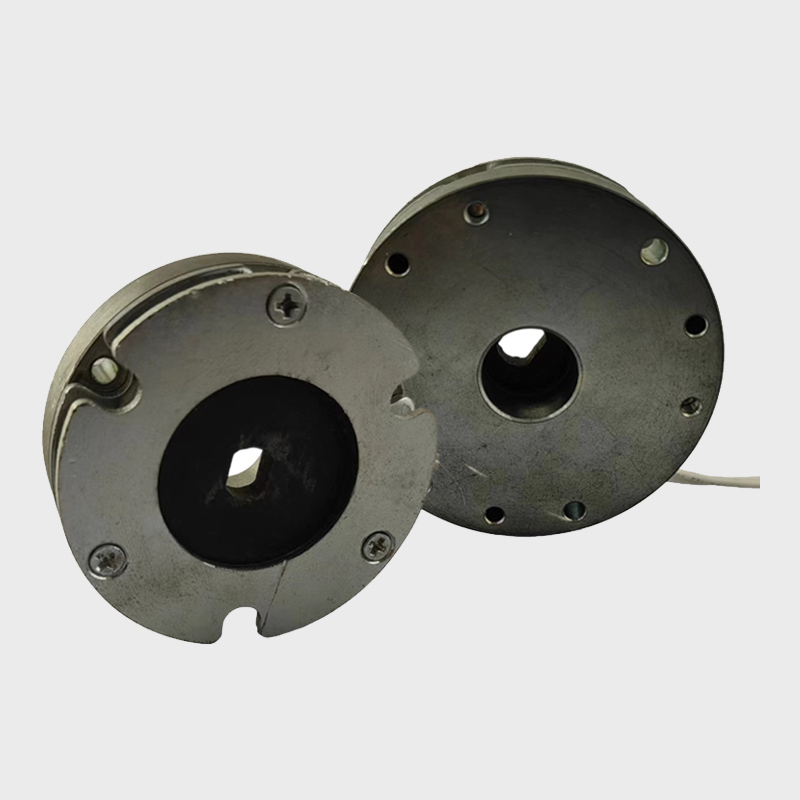

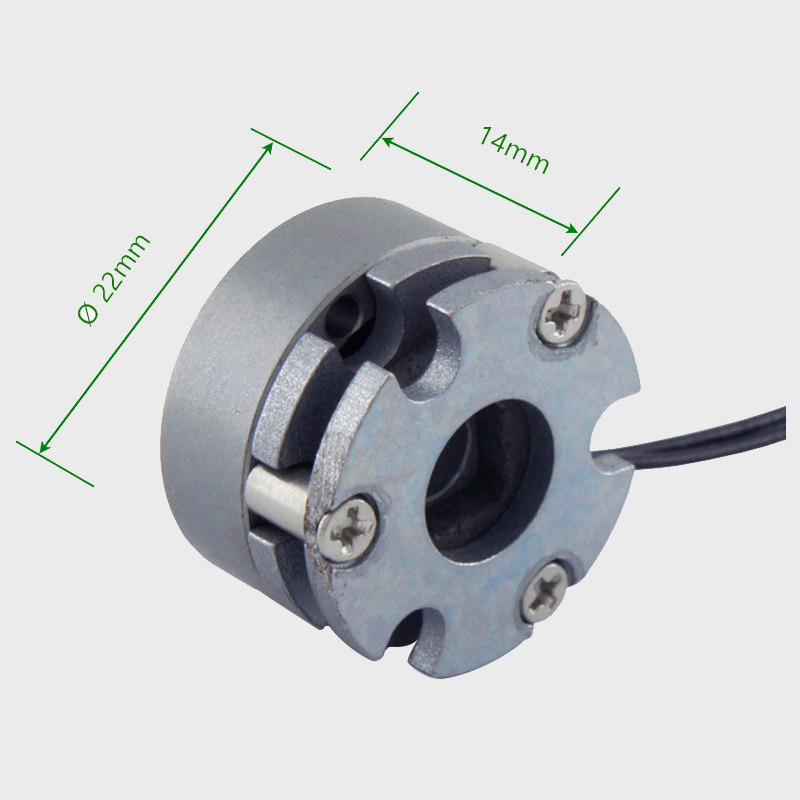

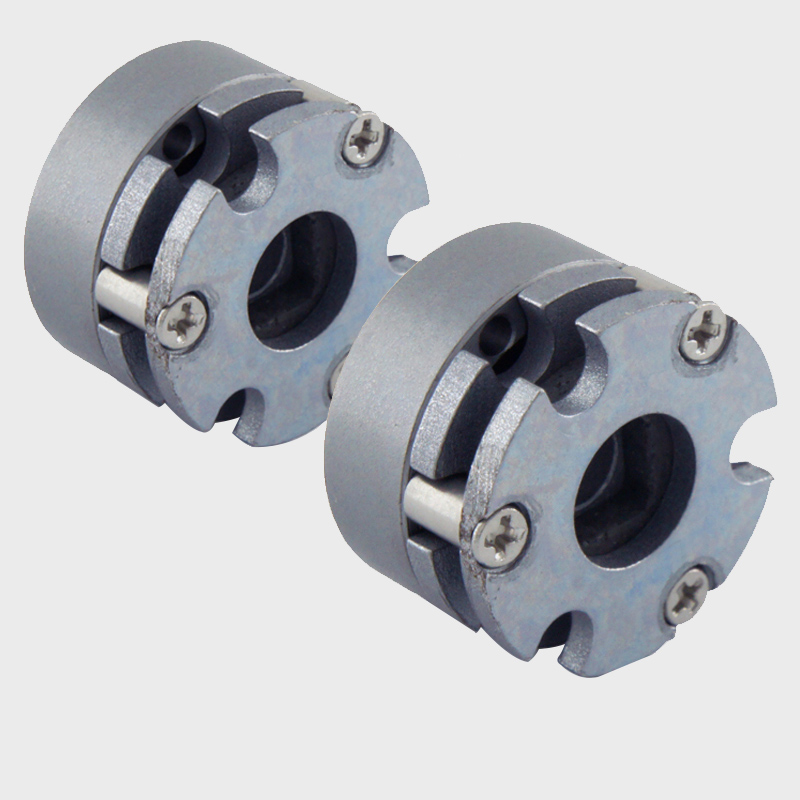

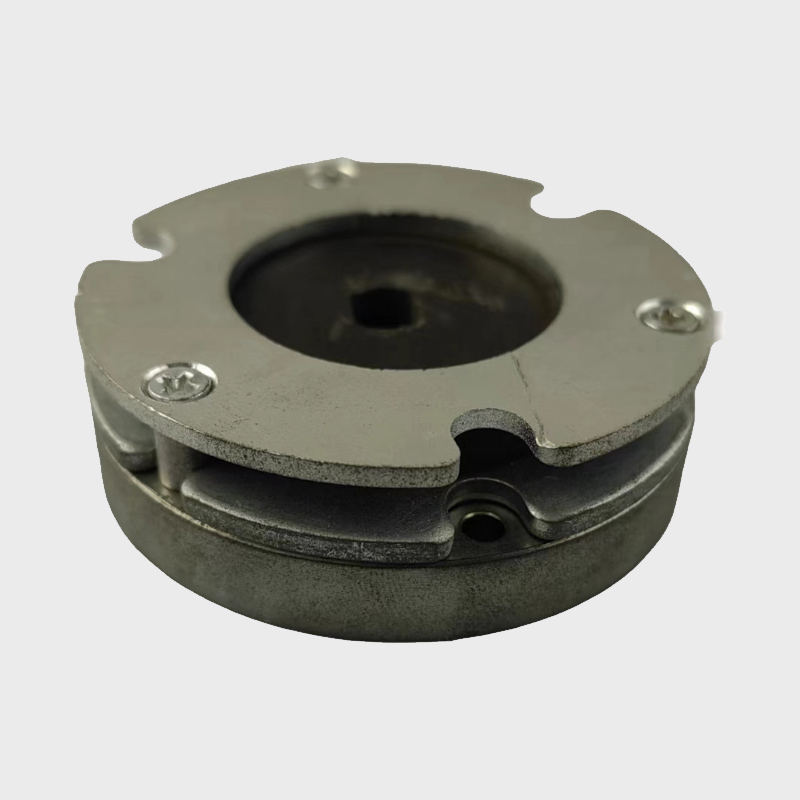

AS 2214 DC 24V Electromagnetic brake Clutch holding for Forklift Stacker Small Electric Wheelchair
When the copper coil of the brake is energized, the copper coil generates a magnetic field, the armature is attracted to the yoke by magnetic force, and the armature is disengaged from the brake disc. At this time, the brake disc is normally rotated by the motor shaft; when the coil is de-energized, the magnetic field disappears and the armature disappears. Pushed by the force of the spring toward the brake disc, it generates friction torque and brakes.
