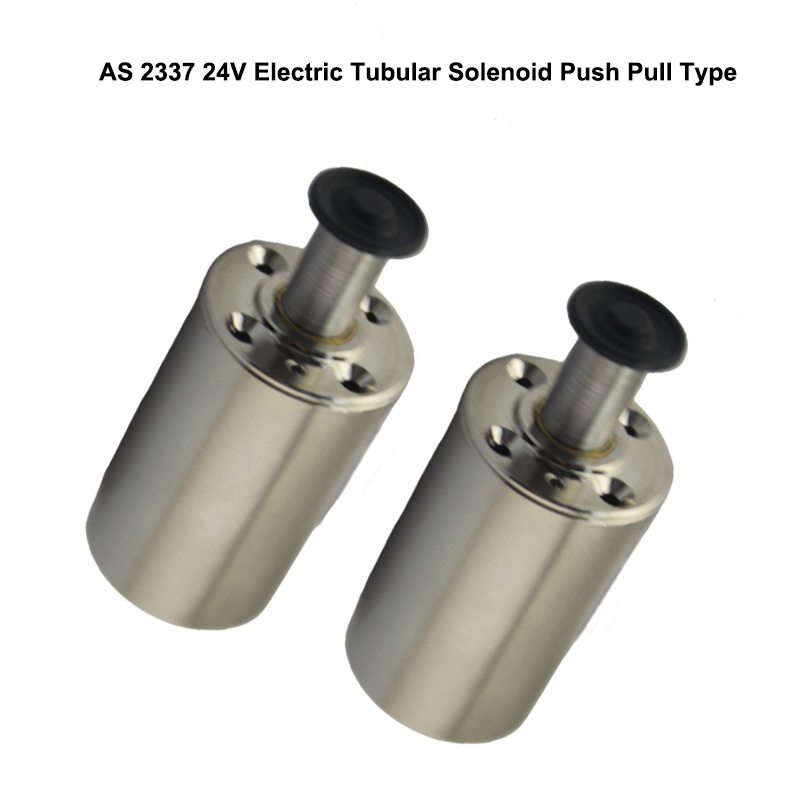

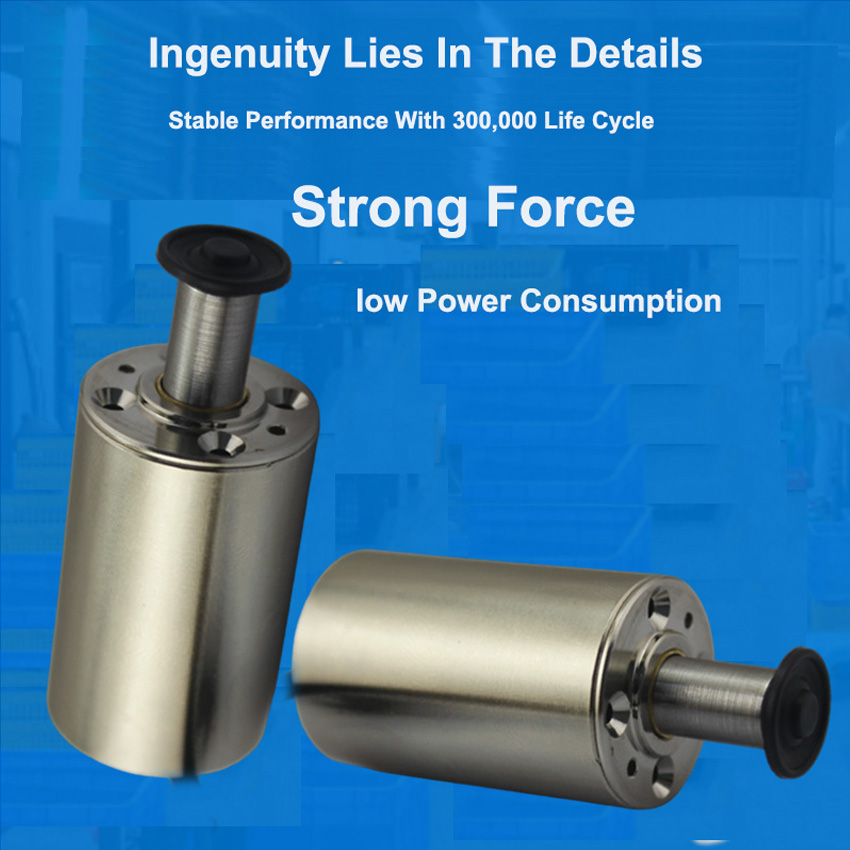

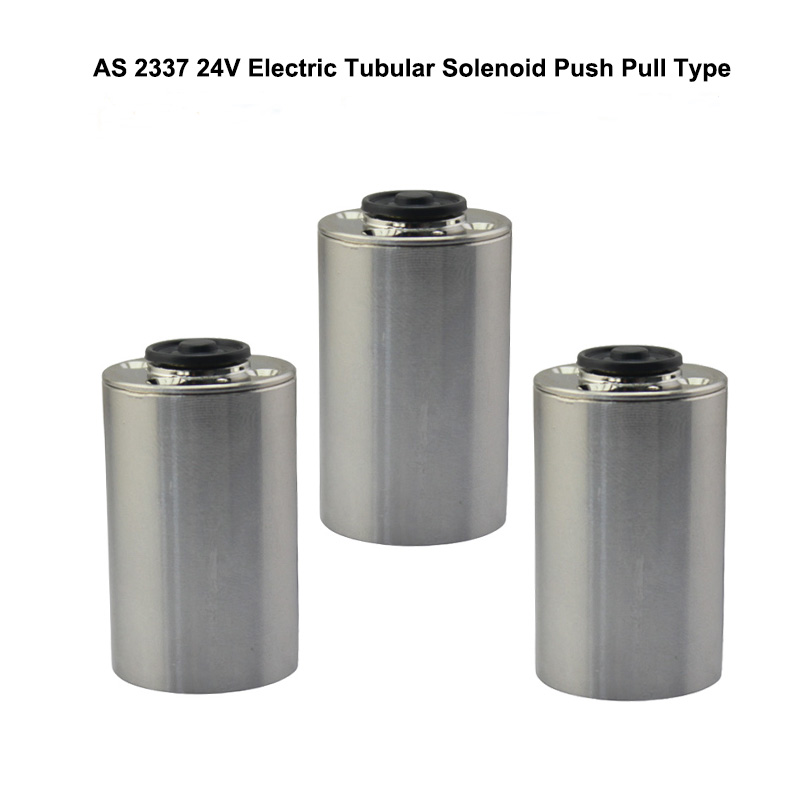

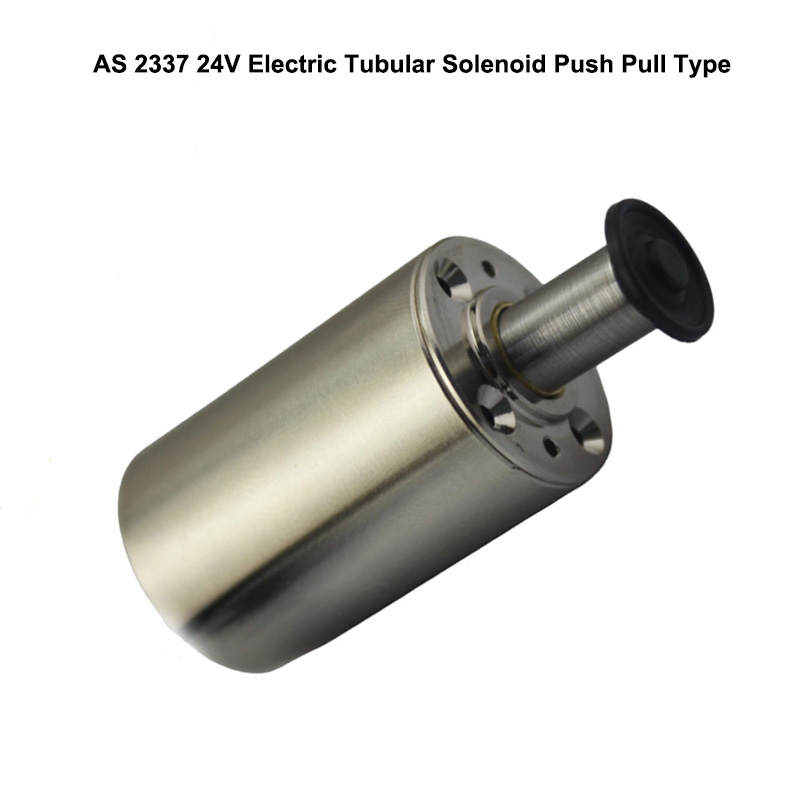

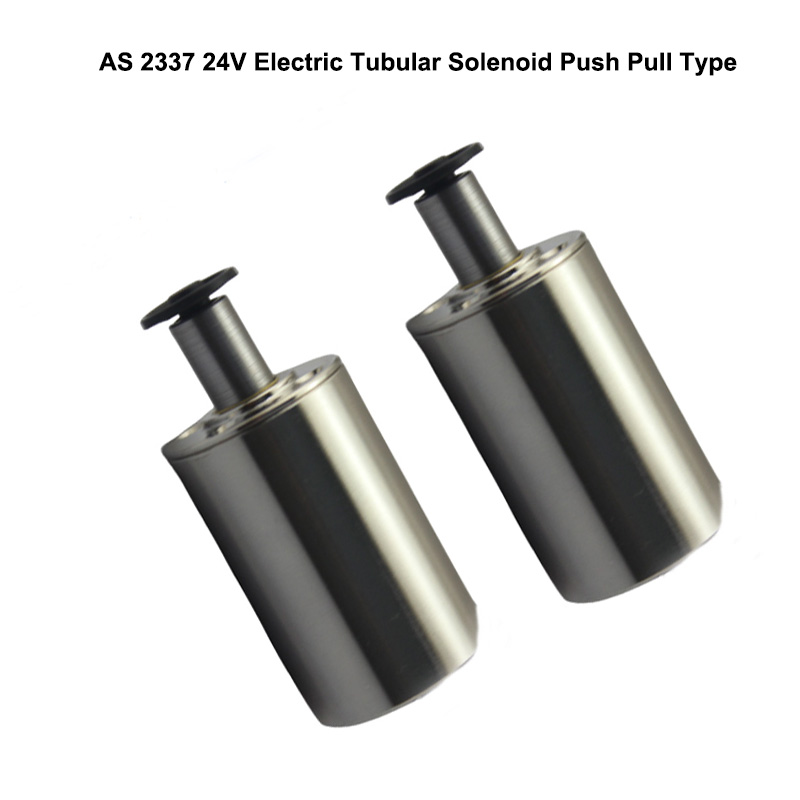

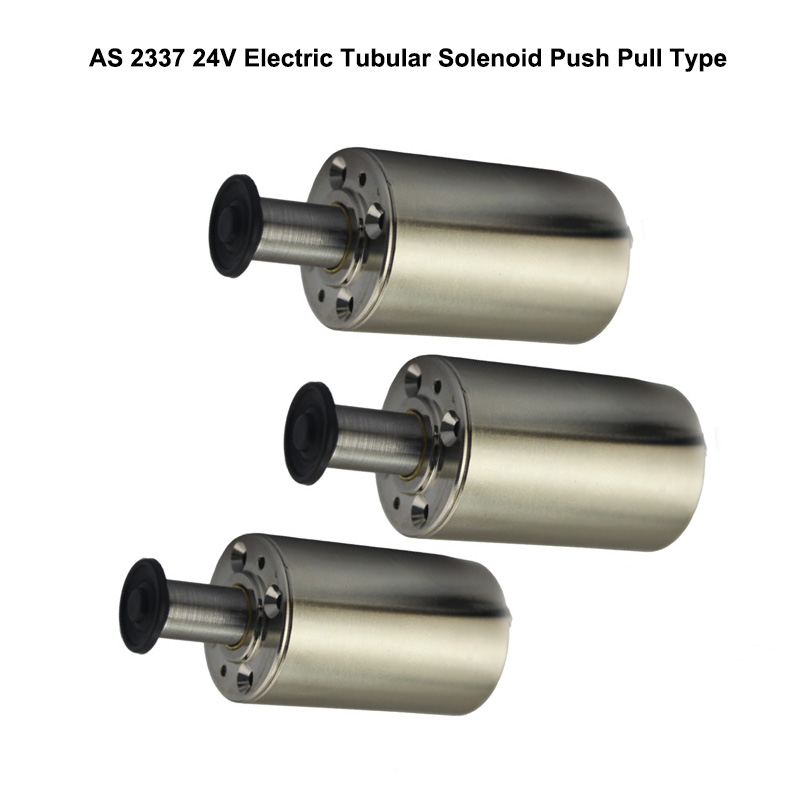

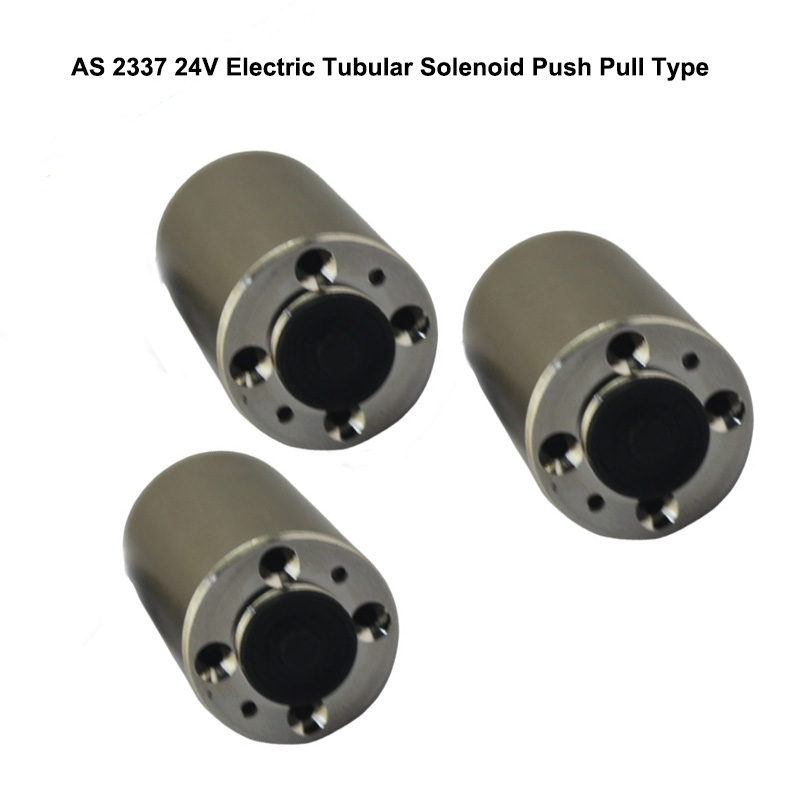

AS 2337 Electric DC 24V Push Pull Tubular Solenoid

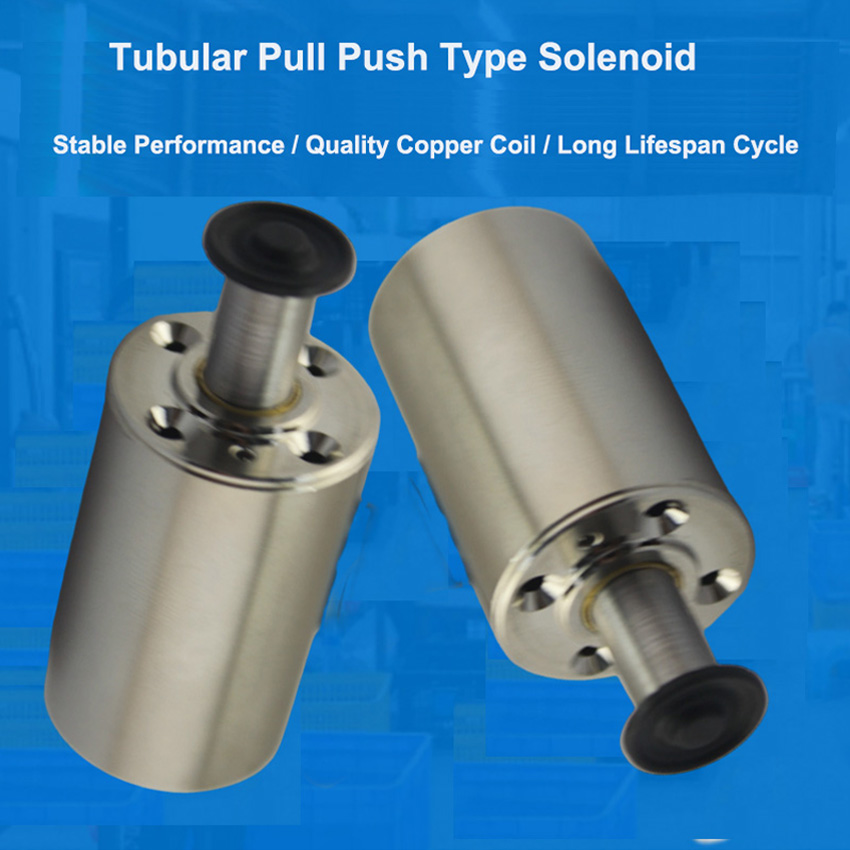

AS 2337 DC 24V Electric Tubular Solenoid Push Pull Type is a high-performance electromagnetic actuator designed for stable push‑pull motion in industrial automation and mechanical equipment. It features reliable structure, fast response, strong thrust, long service life, and low energy consumption, ensuring stable operation under long‑time working conditions. With standard DC 24V voltage, it has wide compatibility and easy installation, widely used in automation machinery, medical devices, textile equipment, vending machines, and electronic control systems. Its compact tubular design saves installation space while delivering consistent performance. This solenoid provides stable and precise linear movement, making it an ideal component for industrial control, automation solutions, and equipment replacement.

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 2337
Rated Voltage (V)	DC 24V	Rated Power(W)	18 W
Work Model	Pull Push Type	Holding Force (N)	150 GF
Stroke(mm)	Customized	Reset Time(s)	0.2
Service Life	500 Thousand Times	Certification	CE,ROHS,ISO9001,

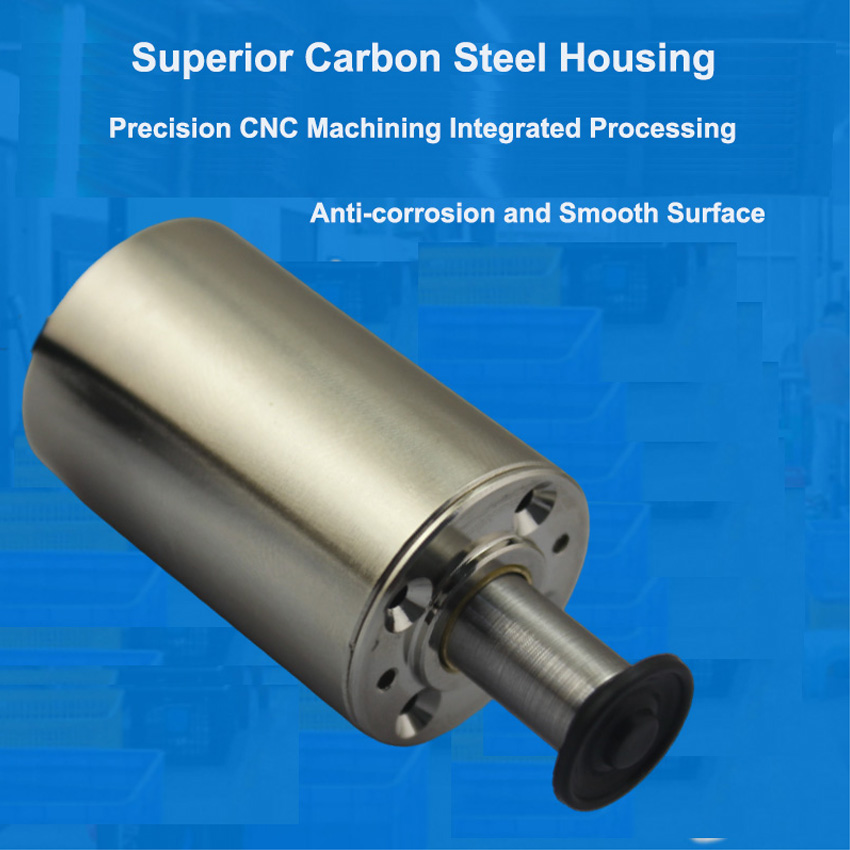

Material	Iron	Lead Wire Length(mm)	200

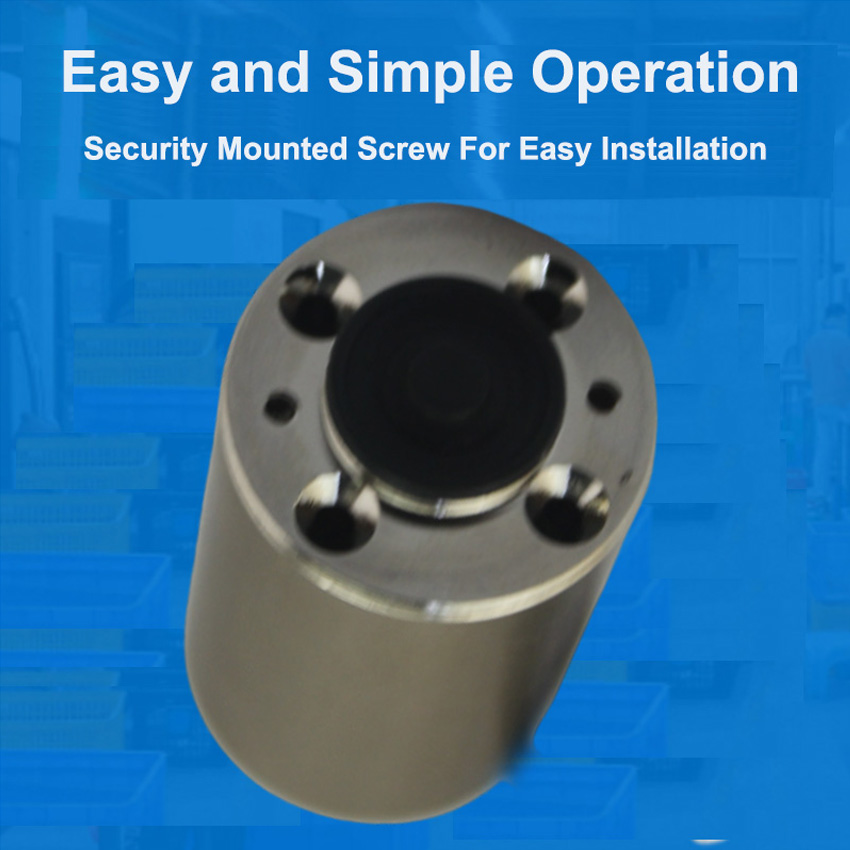

Install Style	screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen
