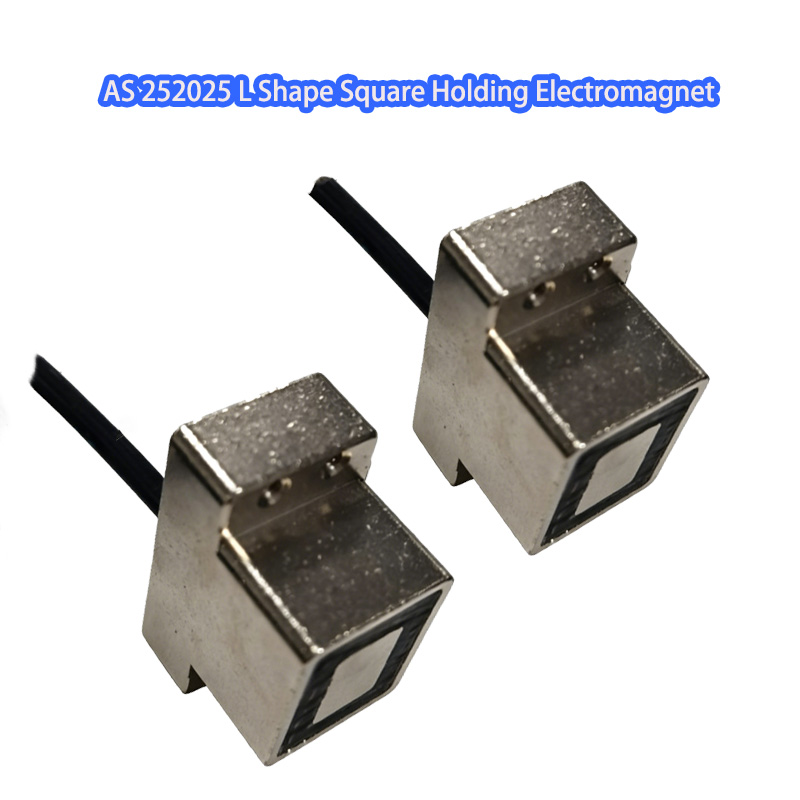

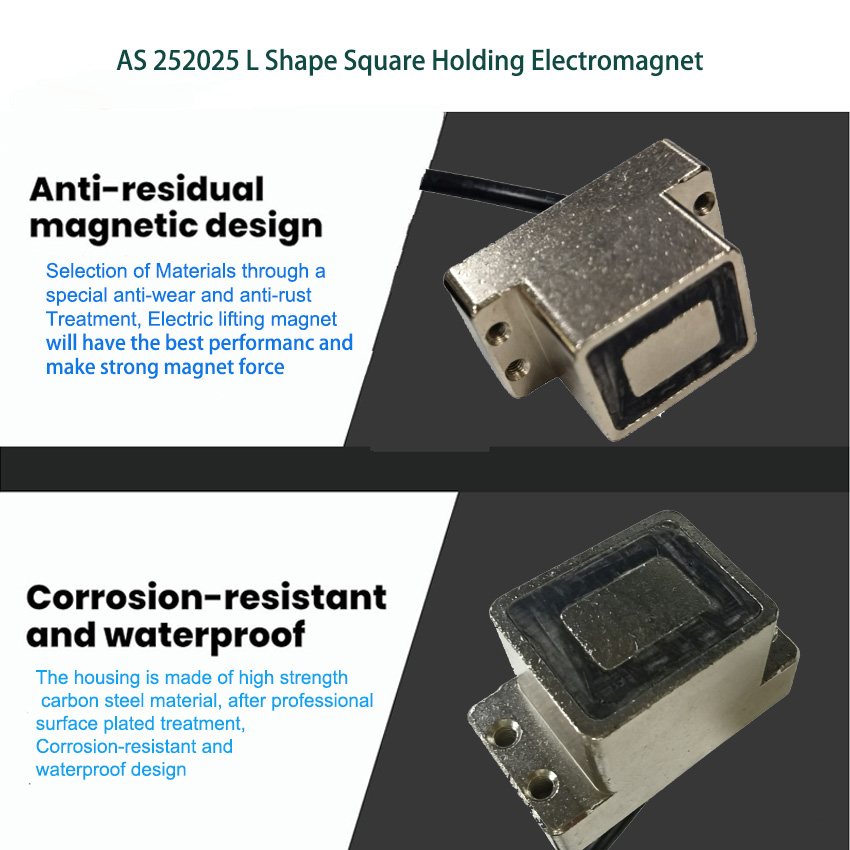

AS 252025 L Shape Square Holding Electromagnet

AS 252025 L Shape Square Holding Electromagnet is a compact L-bracket structured DC electromagnetic holder engineered for industrial fixed holding applications, available in standard 24VDC working voltages with customizable power options. Its unique L-shaped square casing enables flexible surface mounting on automation frames, equipment cabinets and assembly fixtures, solving installation limits of regular flat electromagnets. Built with high permeability silicon steel core and insulated copper coil, this model features stable holding force, low heat generation and long service life. Widely deployed in automated production lines, robotic part clamping, access control electromagnetic locks and small machinery workpiece positioning; we support OEM dimension, voltage and holding force customization to match bespoke industrial project demands.

Product Video

Product Specification

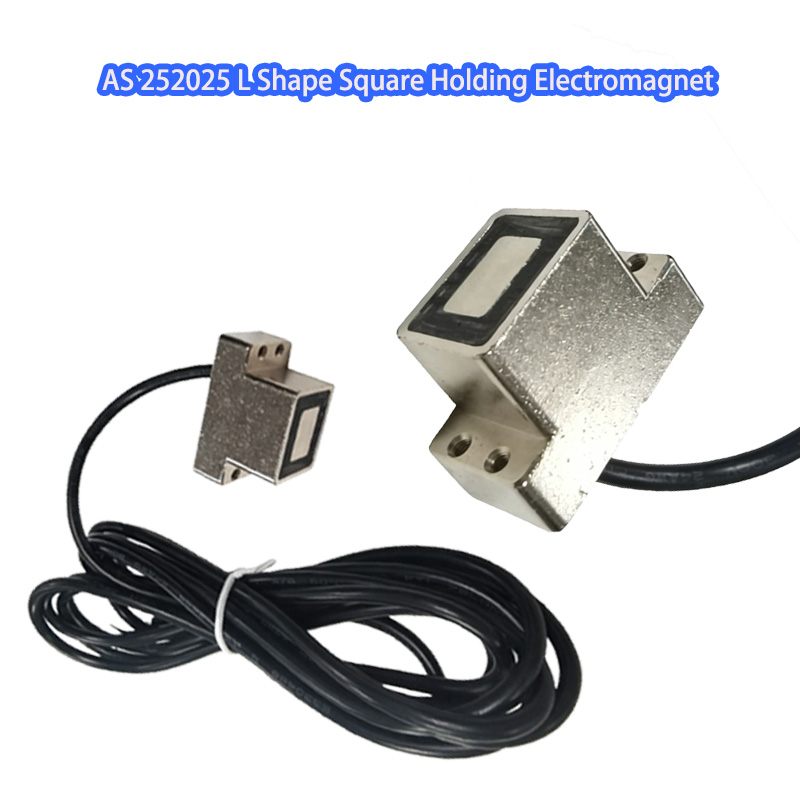

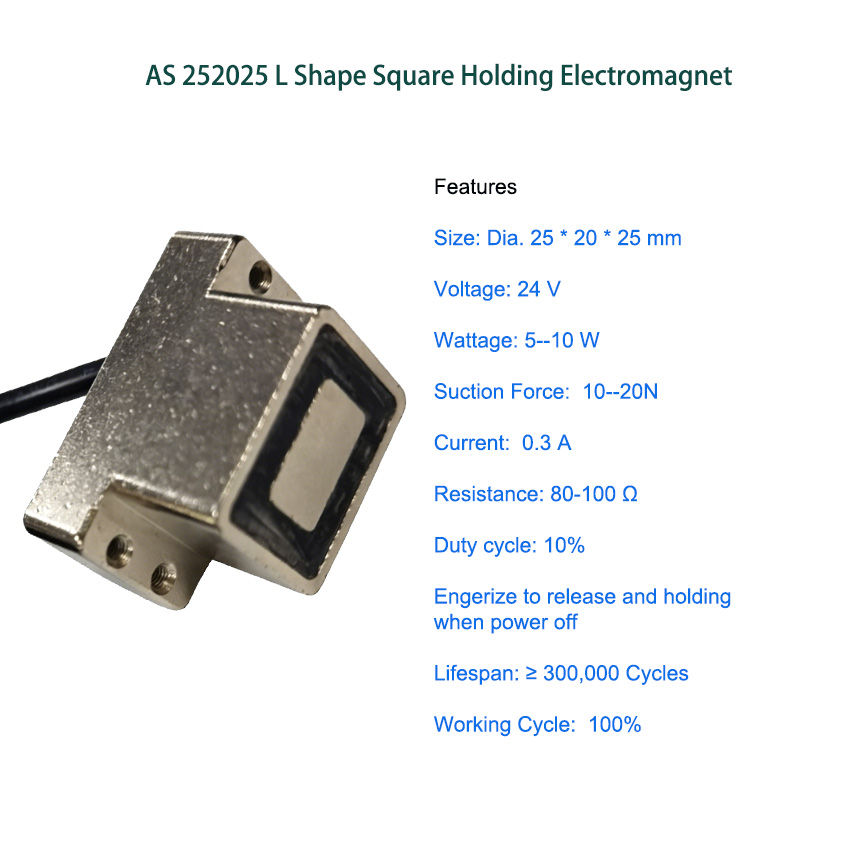

Brand	AstSolenoid	Model Number	AS 252025
Rated Voltage (V)	DC 24V	Rated Power(W)	7.2 W

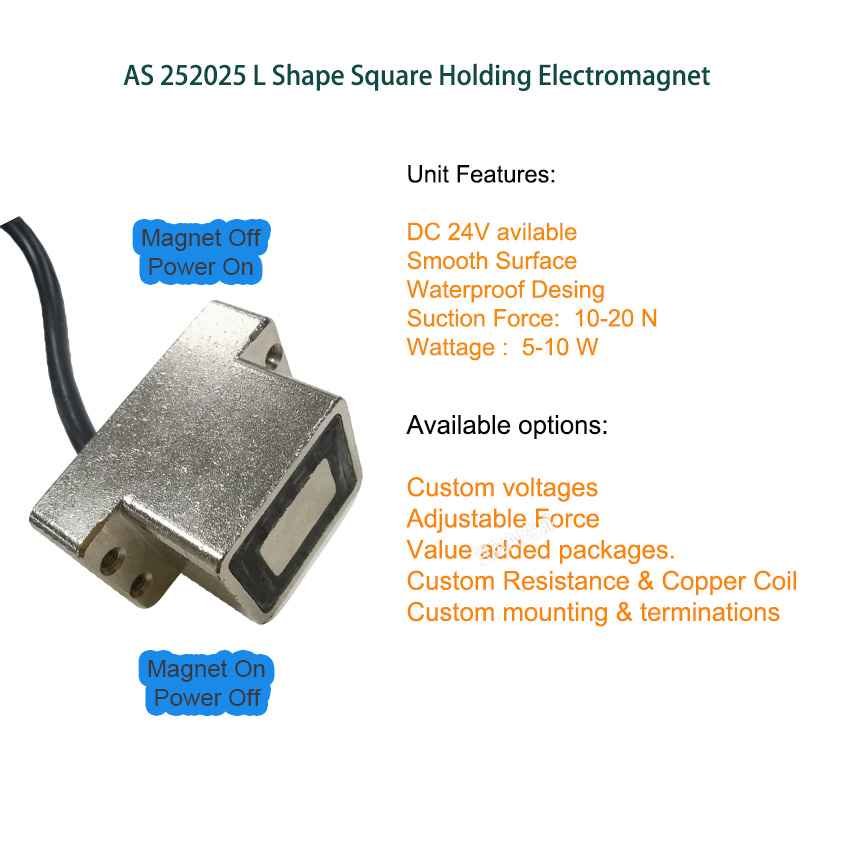

Work Mode:	Power on, Magnet on	Holding Force (N)	10-20 N
working duty	100%	Resistance	80 Ω
Service Life	100 Thousand Times	Certification	CE,ROHS,ISO9001,

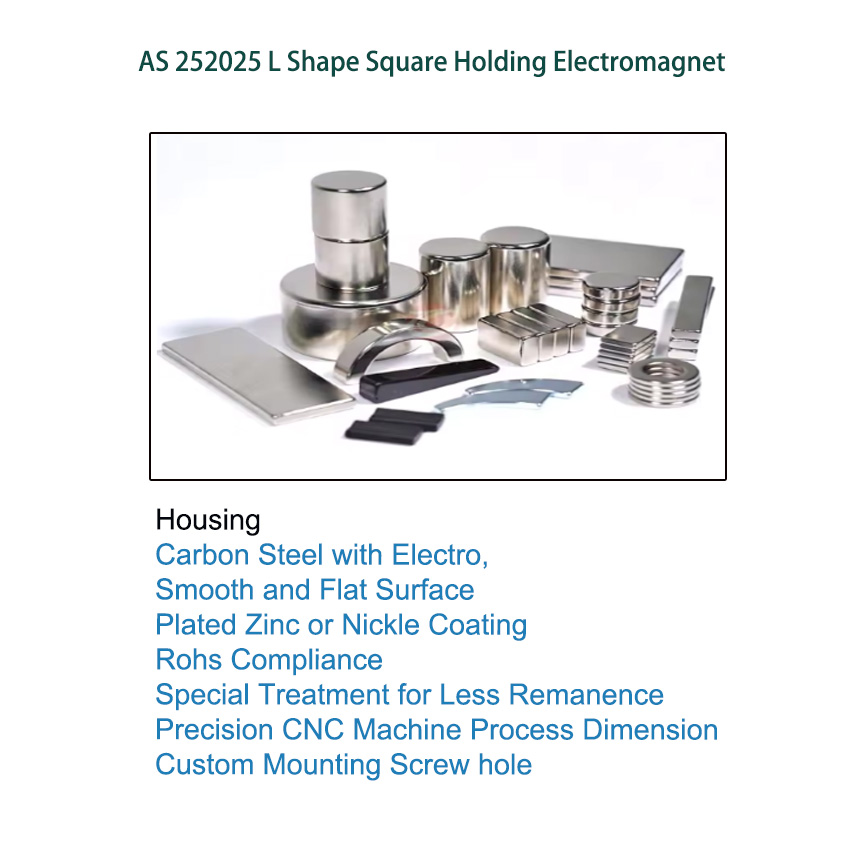

Material	Superior Magnet Carbon Steel Housing	Lead Wire Length(mm)	200 MM

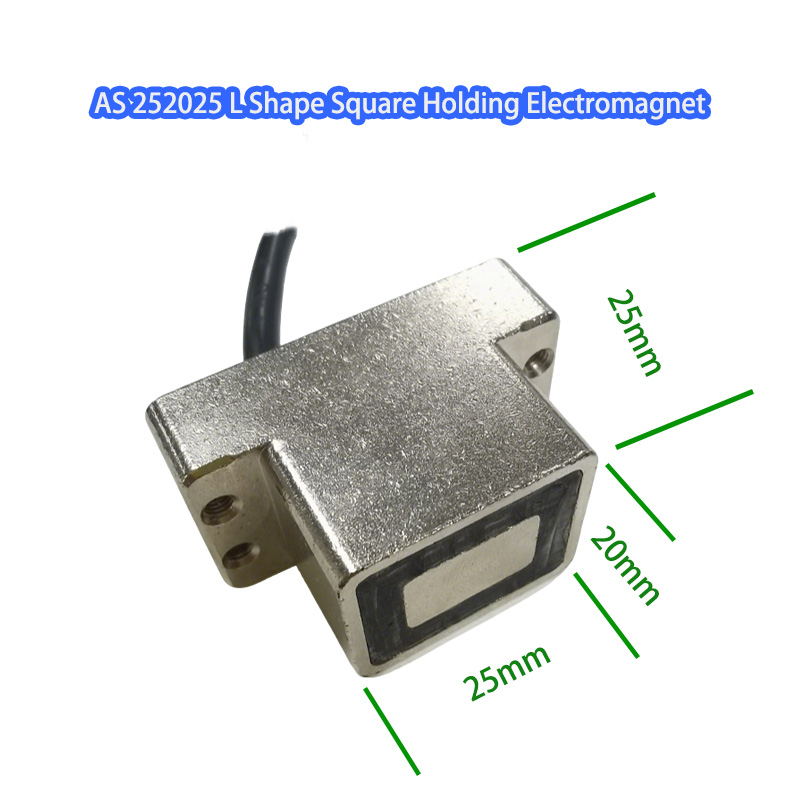

Install Style	Screw Hole	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

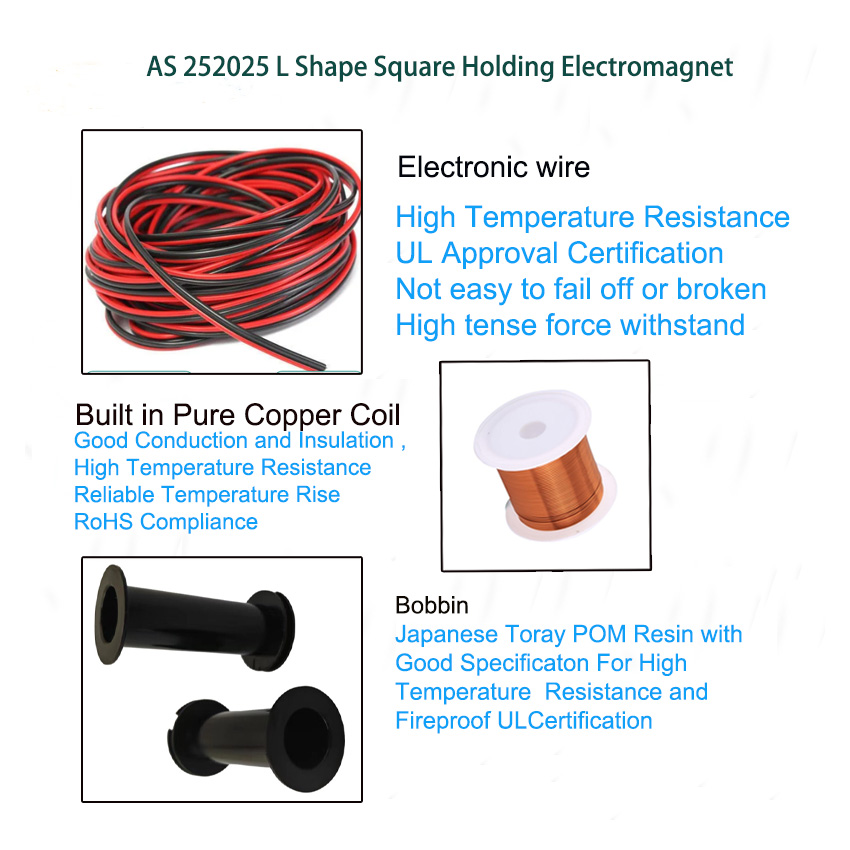

Product Description

L Shape Square Holding Electromagnet vs Regular Flat & Round Holding Electromagnet

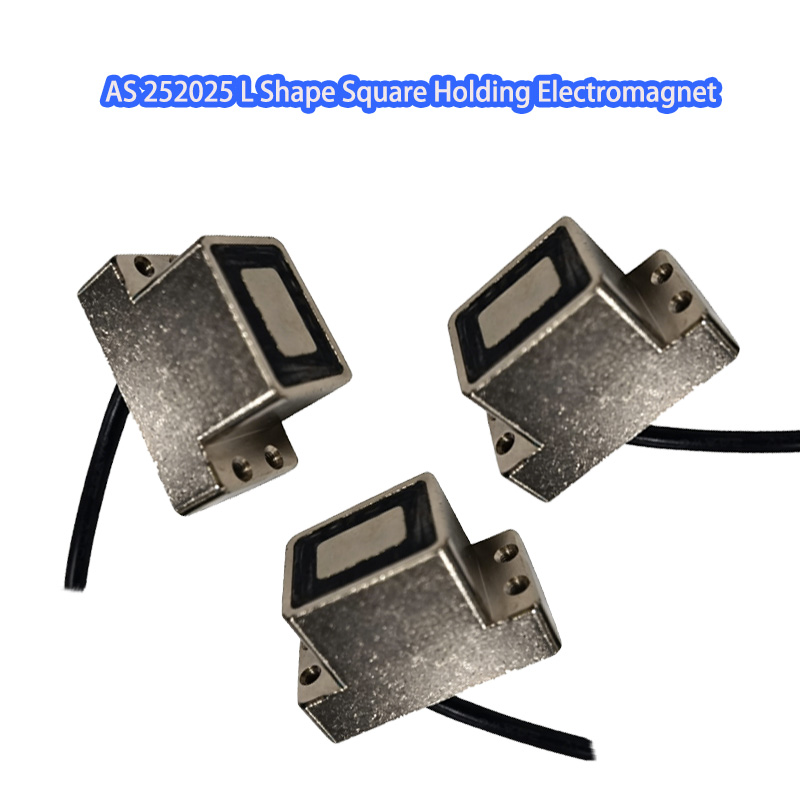

Unique Structural Design

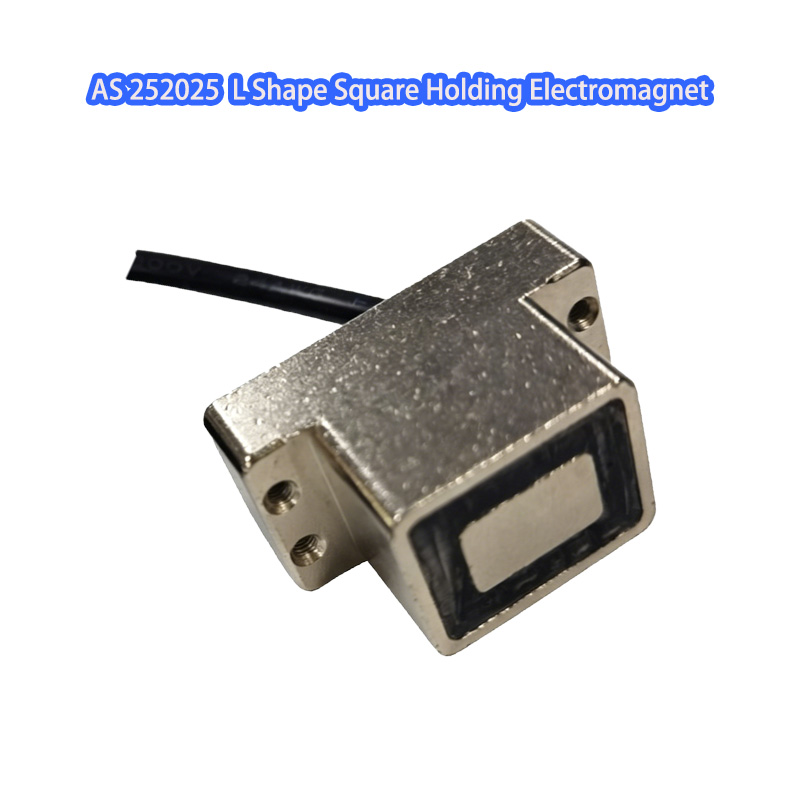

The L-shape square holding electromagnet adopts a special L-bent iron core structure. It has a flat working surface for magnetic attraction and a vertical flange for easy mounting. This separated structure distinguishes it from ordinary holding electromagnets.

Regular flat and round holding electromagnets feature an integrated solid structure. They come in block or cylindrical disc shapes with no bent mounting flanges. The bottom side of these standard magnets works as both the mounting base and the suction surface.

Mounting Advantage

L-Shape Holding Electromagnet

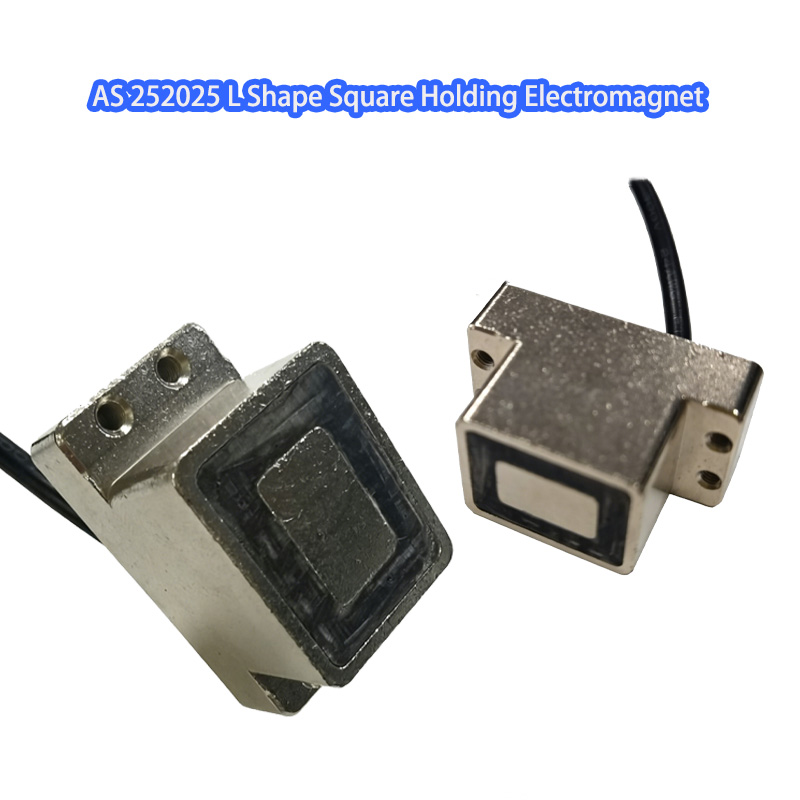

The L-shaped electromagnet supports practical side installation. Users can secure the device to equipment side panels using pre-drilled holes on the vertical flange. This method requires no drilling on the magnetic suction surface.

It effectively prevents magnetic leakage caused by surface damage. The slim structure fits compact installation spaces and narrow fixture slots perfectly.

Regular Flat & Round Magnets

Standard flat and round electromagnets only support flat surface mounting. Users must attach the entire suction face to flat mounting benches for fixation.

Drilling on their magnetic attraction surface will damage the structure. It also directly weakens the overall magnetic holding power during operation.

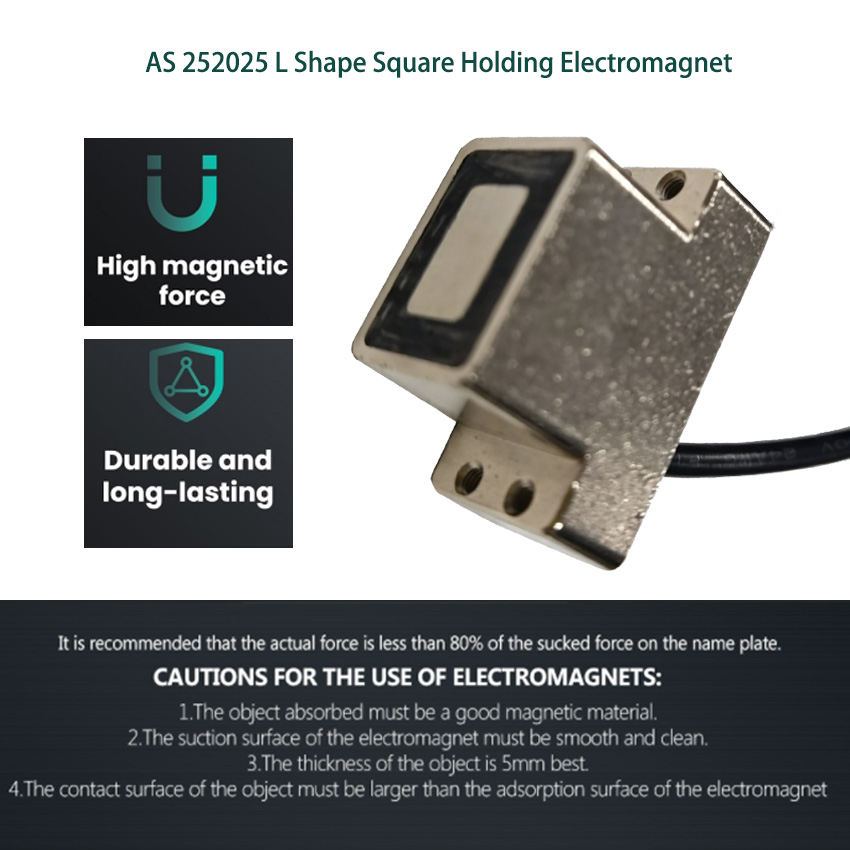

Application Scenarios

L-shape square holding electromagnets suit narrow and limited installation environments. They are commonly used for bread slicer cutter positioning, small mold clamping and automated workpiece holding in narrow spaces.

Regular flat and round holding electromagnets fit general flat working conditions. They work best for horizontal metal sheet grabbing, automatic conveyor loading and unloading, and flat workpiece fixing on production lines.
