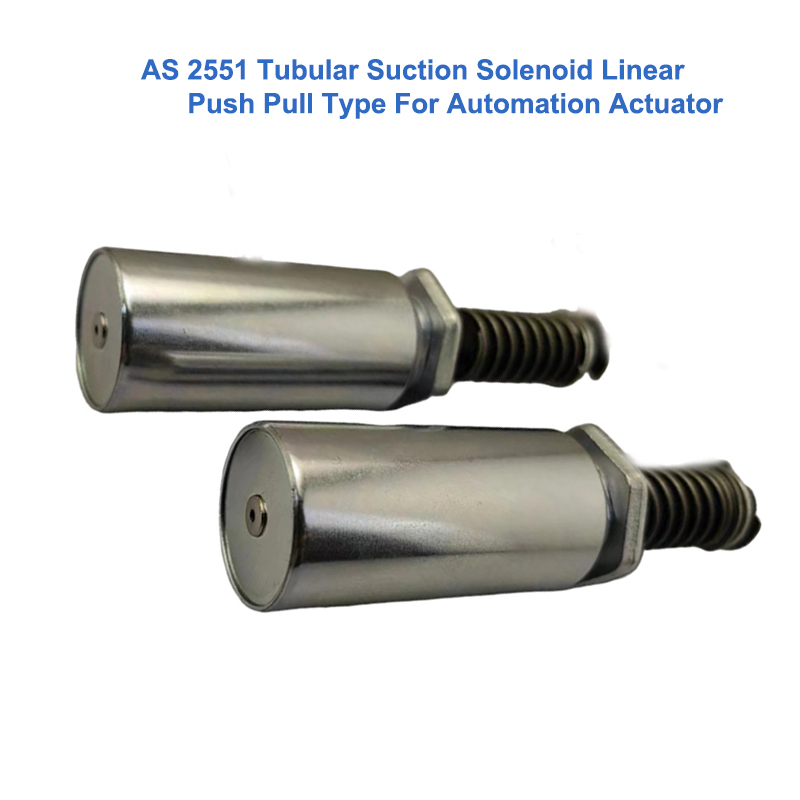

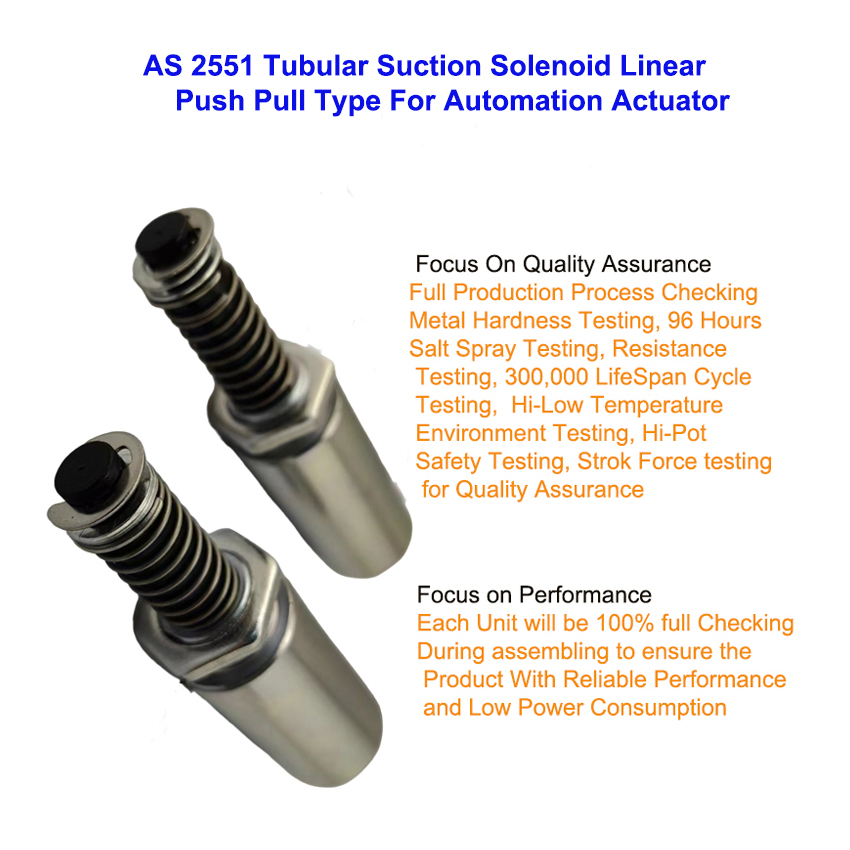

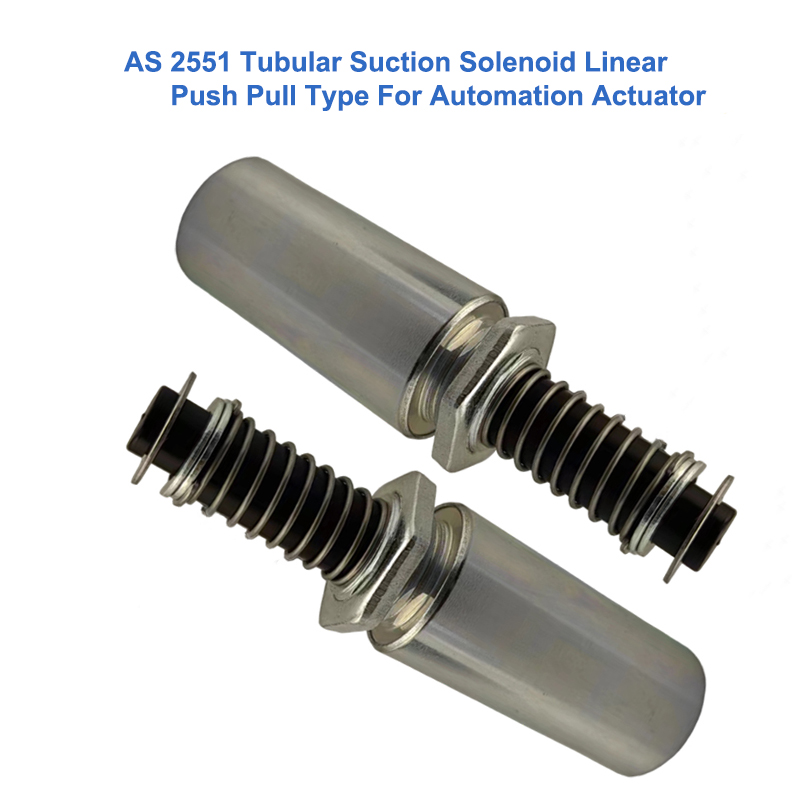

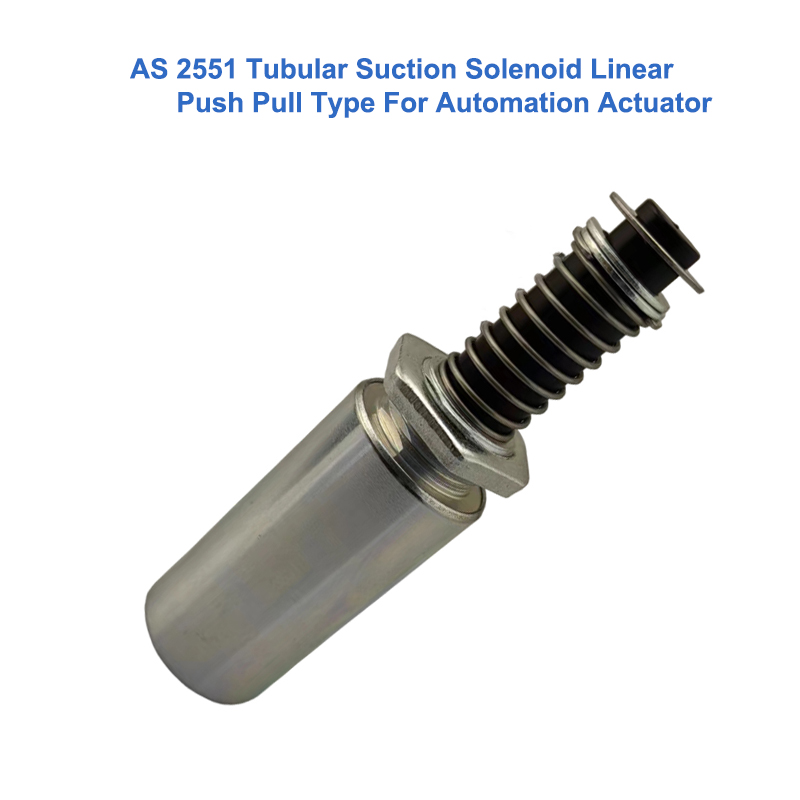

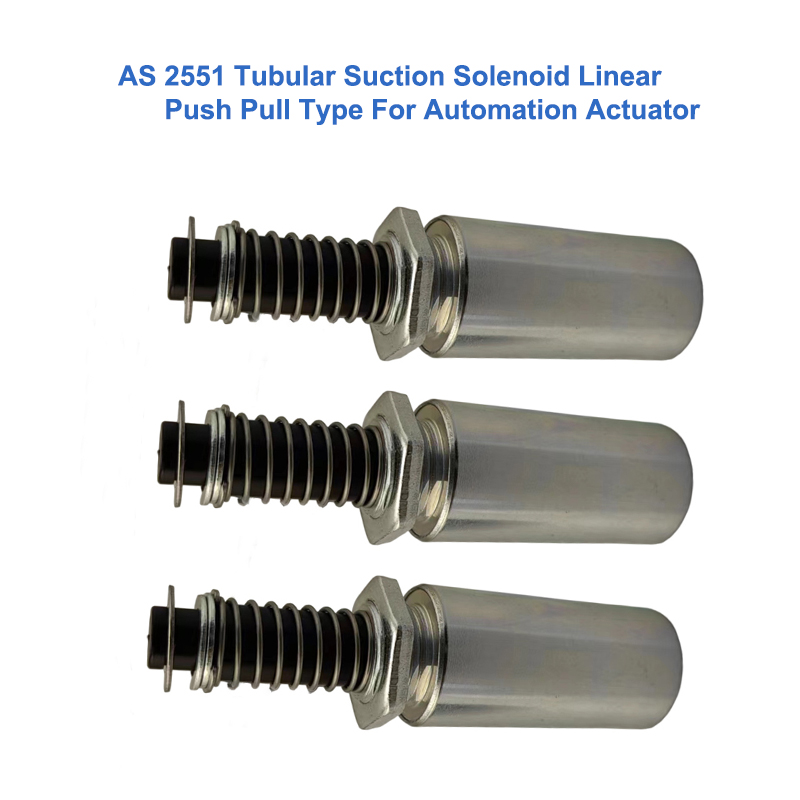

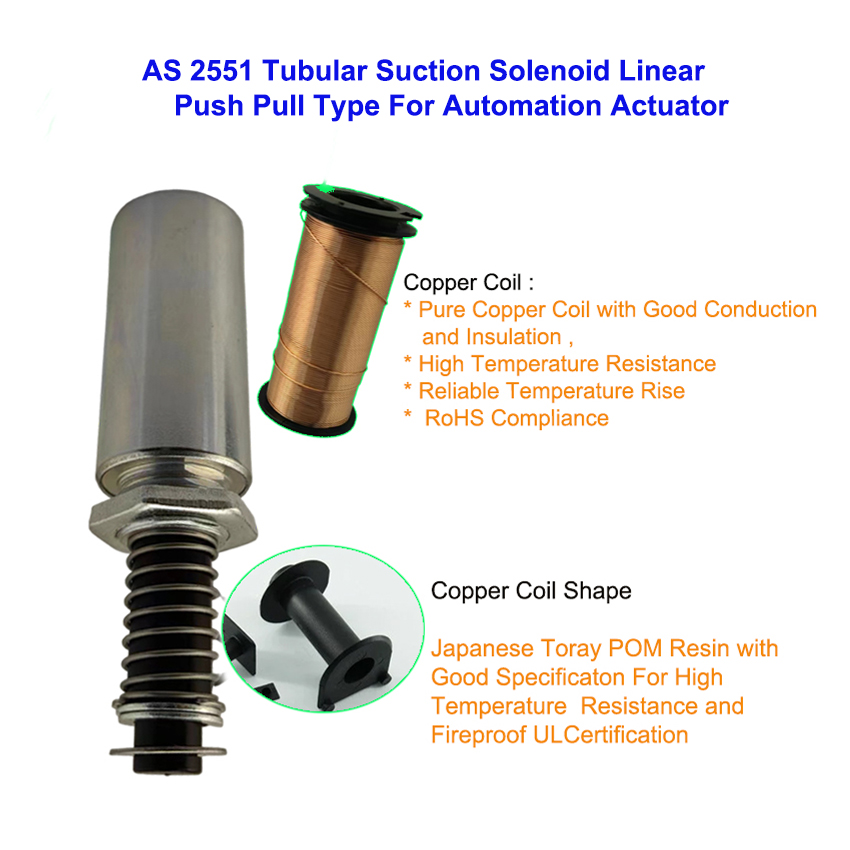

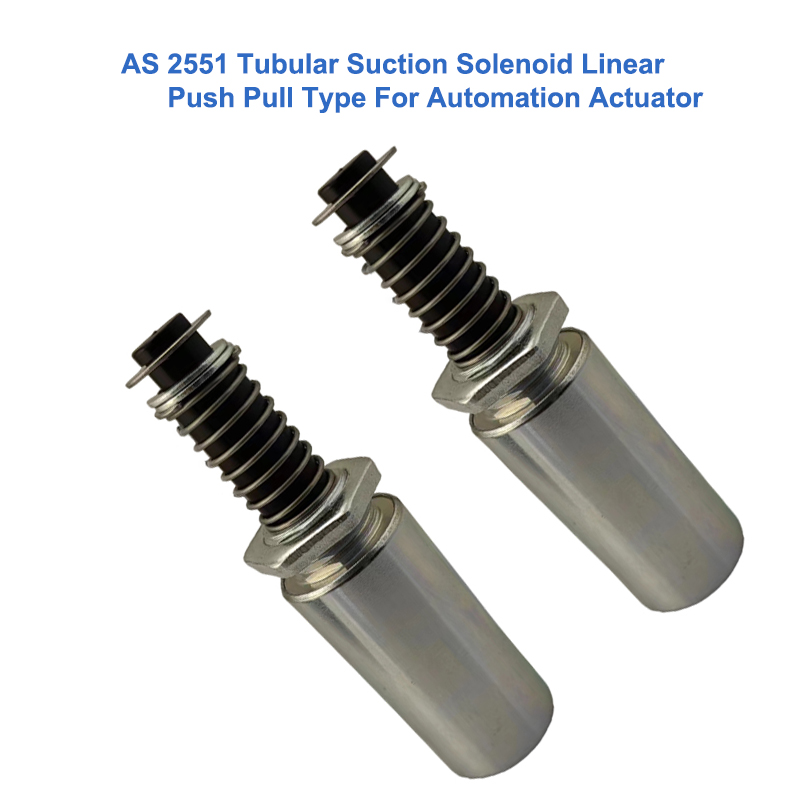

AS 2551 Linear Push Pull Tubular Suction Solenoid Electromagnet for Automation Actuator

The AS 2551 tubular suction solenoid is a high‑performance linear push‑pull actuator designed for reliable automation applications. It features stable suction, consistent push‑pull action, and durable construction for long service life. Ideal for automated machinery, valves, door locks, medical equipment, and industrial control systems. This compact tubular solenoid delivers stable performance, low power consumption, and fast response. Engineered for precision and reliability, it supports consistent operation in demanding automation environments. A cost‑effective solution for linear actuation needs in automation equipment.

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 2551
Rated Voltage (V)	DC 24V	Rated Power(W)	18 W

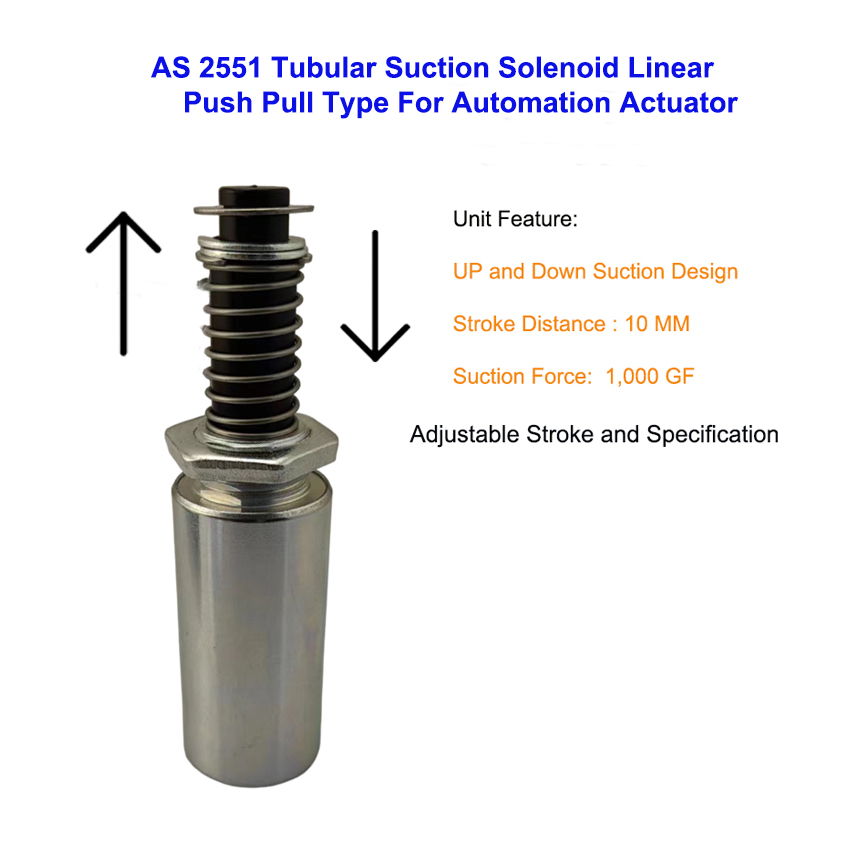

Work Model	Tubular Pull Push Type	Holding Force (N)	1000 GF
Stroke(mm)	Customized	Reset Time(s)	0.1
Service Life	300 Thousand Times	Certification	CE,ROHS,ISO9001,

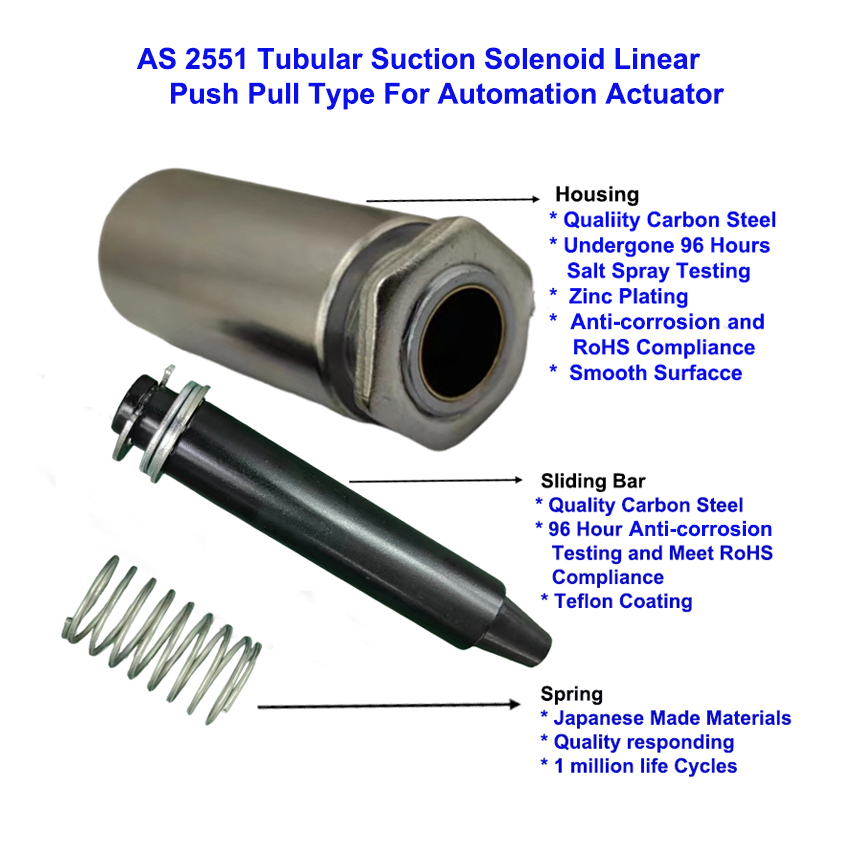

Material	Carbon Steel Housing with Zinc Plated Coating	Lead Wire Length(mm)	200

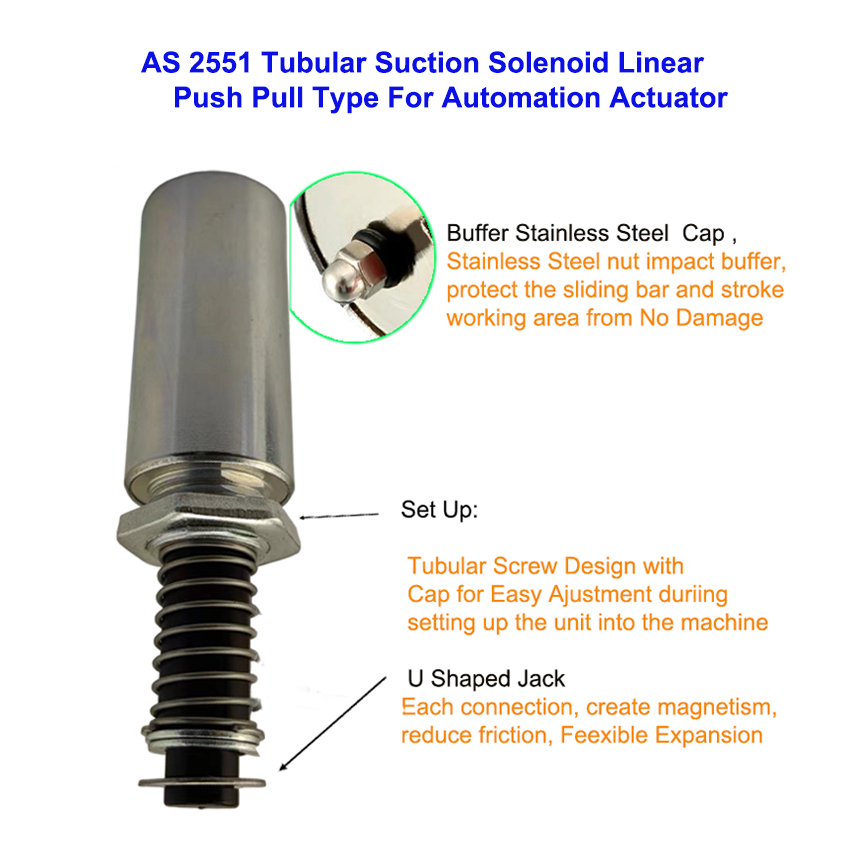

Install Style	Adjustable Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen
