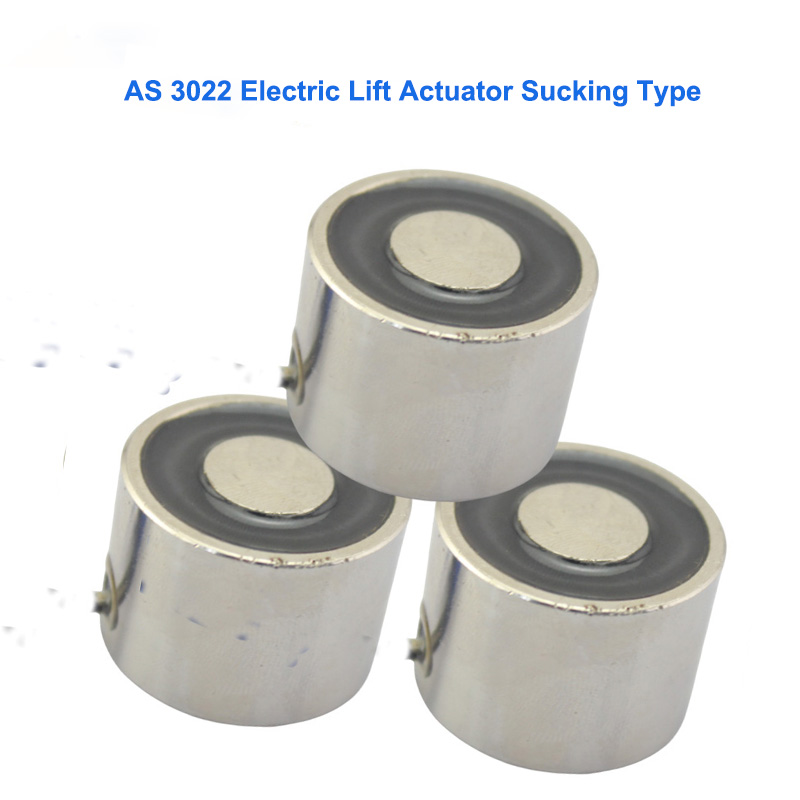

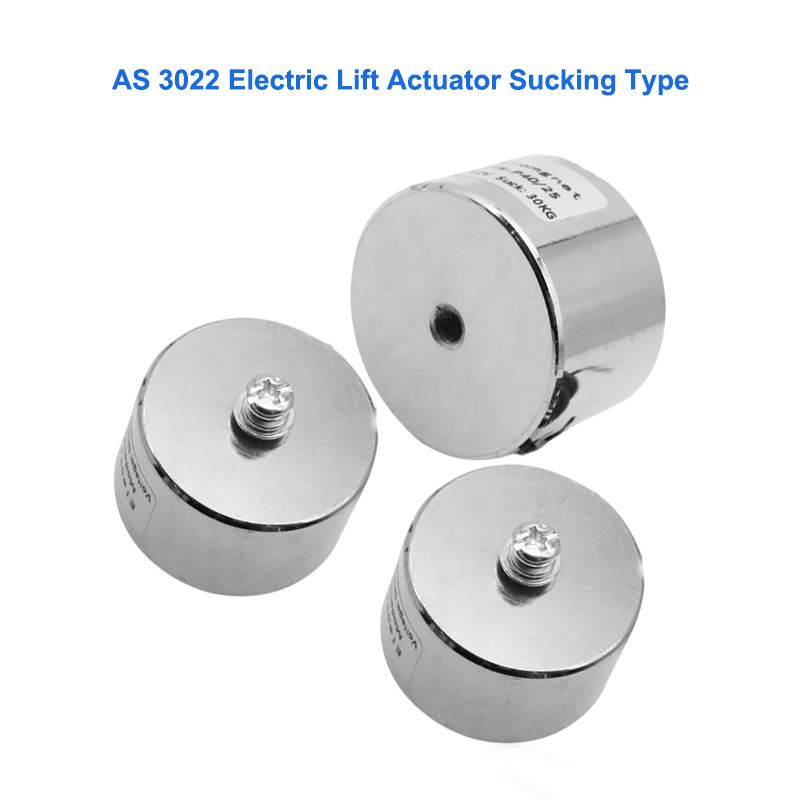

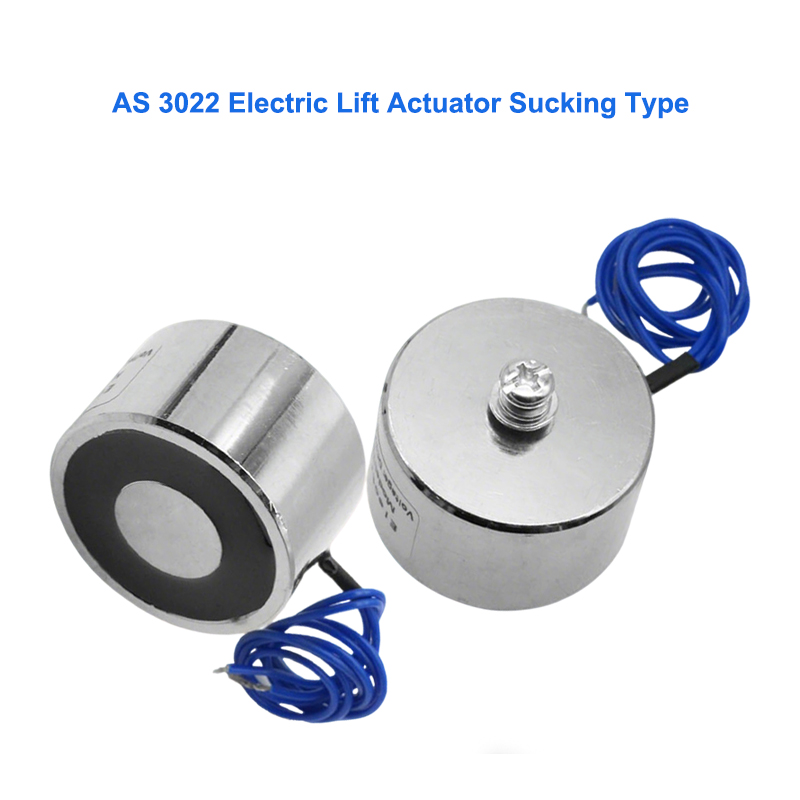

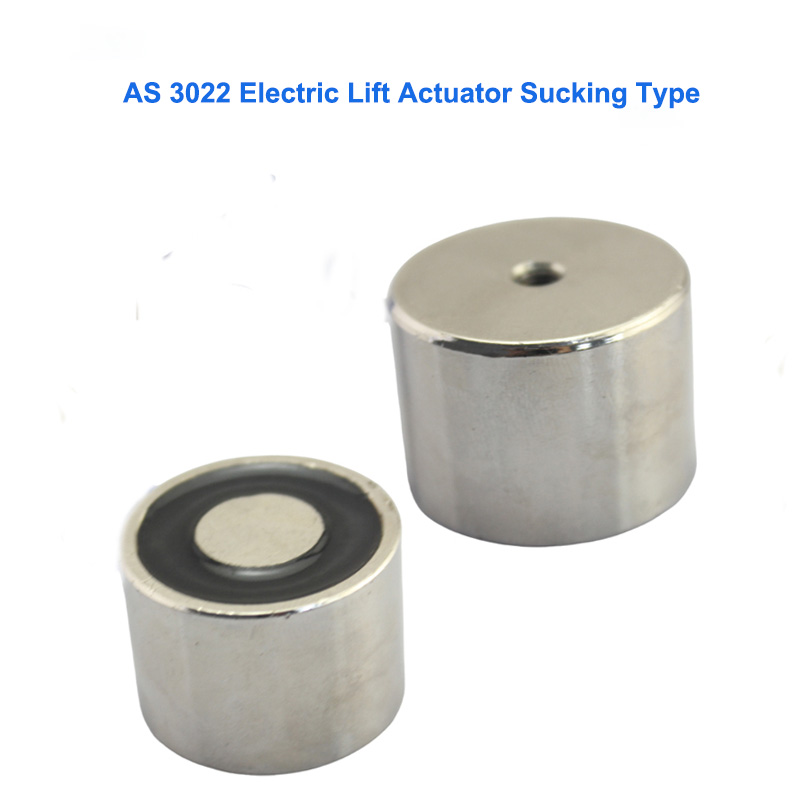

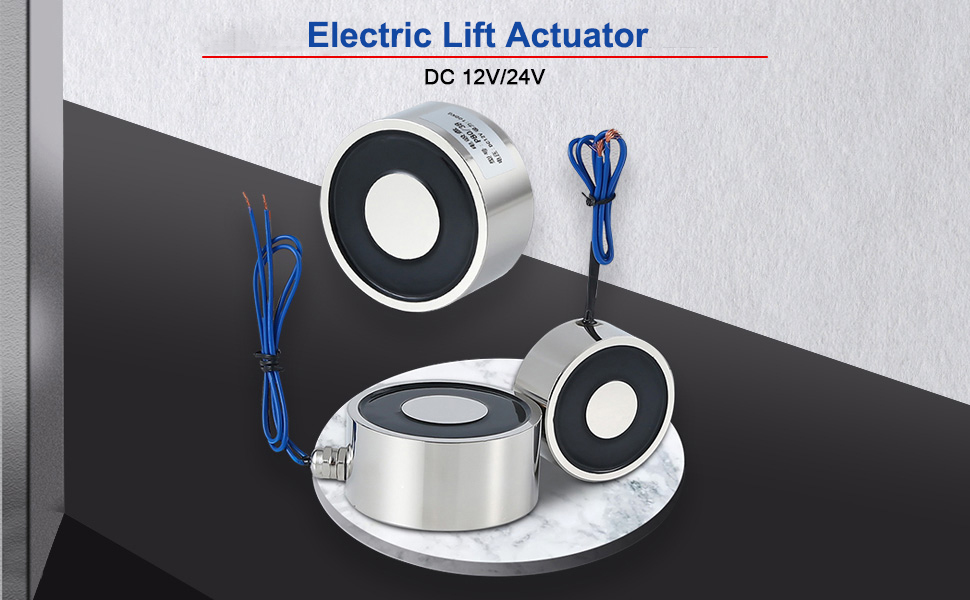

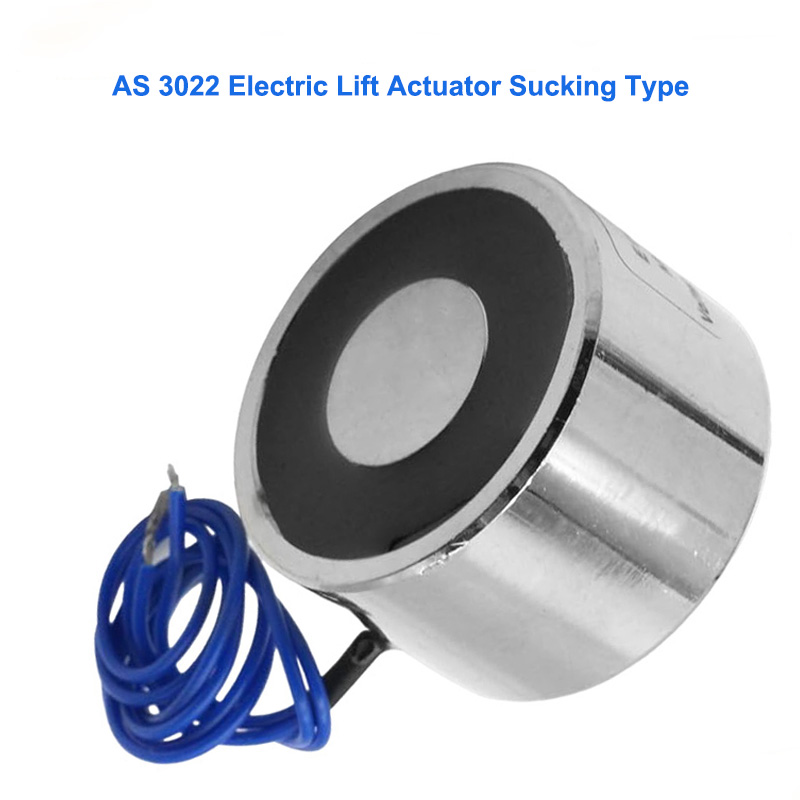

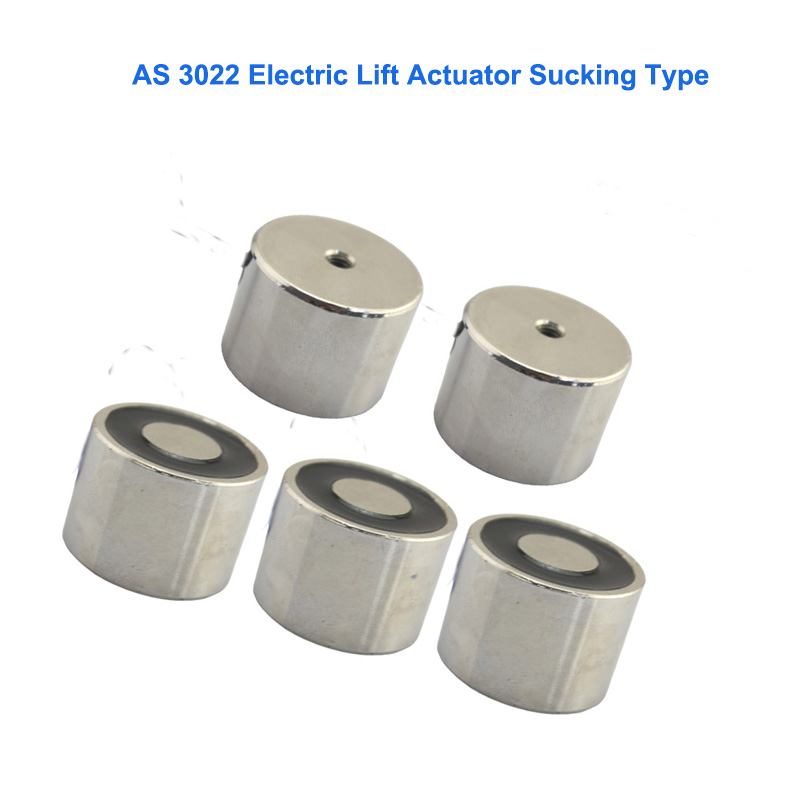

AS 3022 Sucking Type Actuator | Electric Lift for Industrial Automation

The AS 3022 Electric Lift Actuator Sucking Type is a high-performance industrial component engineered for reliable, precise lifting and adsorption operations in automation, material handling and machinery applications. Its advanced sucking type electromagnetic design delivers strong, stable suction force for secure object lifting and positioning, with smooth electric lift movement for accurate control. Built with a robust structure to withstand industrial working conditions, it offers durable performance and easy integration into existing lifting and automation systems. Compact in design for flexible installation, this actuator ensures efficient operation for light to medium load lifting tasks. We provide flexible OEM customization for specific lifting requirements, along with fast global delivery and competitive bulk pricing for industrial manufacturers and system integrators.

Categories: , Tags: , , , ,
Get a Quote

Product Video

Product Specification

Brand AstSolenoid Model Number AS 3022
Rated Voltage (V) DC 24V Rated Power(W) 2.3 W
Work Model Sucking Type Attraction Force 100 N
Stroke(mm) Customized Reset Time(s) 1 S
Service Life 500 Thousand Times Certification CE,ROHS,ISO9001,
Material Iron Lead Wire Length(mm) 200
Install Style screw Tolerance of Dimension  +/-  0.1 MM
Water-proof  None Insulation Class B
Hi-Pot Test AC 600V 50/60Hz 2s Non-excitation Holding Force 0
Working Temperature -10°C-100°C Duty Cycle 1-100%
Thread Depth(mm) / Payment Term TT, or LC At Sight
Sample Order Yes Warranty 1 Year
MOQ 1000 PCS Supply Ability 5000 pcs per Week
Delivery Time 30 Days Port of Loading shenzhen

Product Description

Unit Dimension: Diameter 20, High 22 Mm

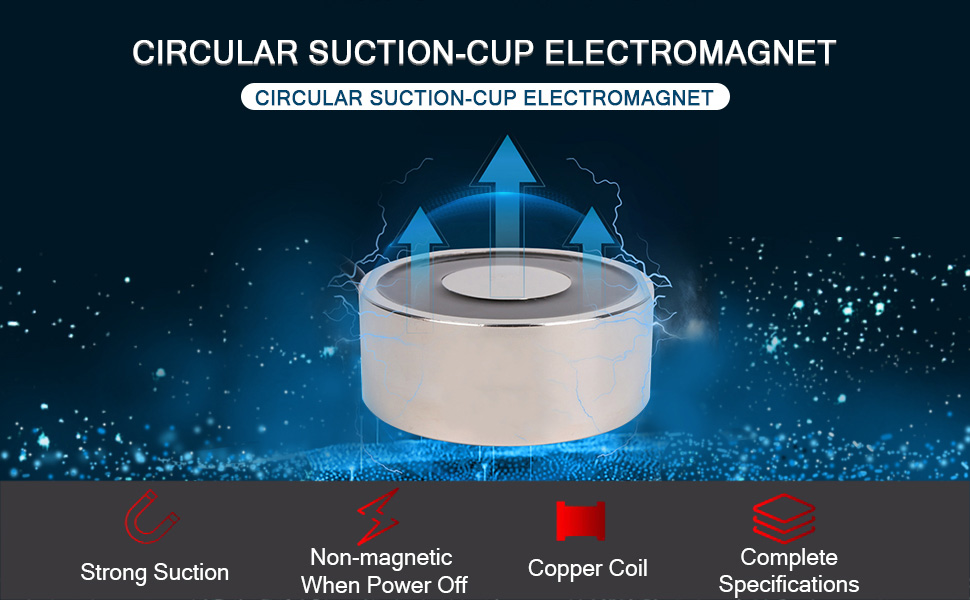

Principle of Holding sucker Solenoid
this type of round electromagnets, the attraction is created when the holding sucker solenoid is powered on. When the power supply is off, the part being held is released.  The Diameters of holding sucker solenoid is made between 20 and 150 mm in standard manufacture.

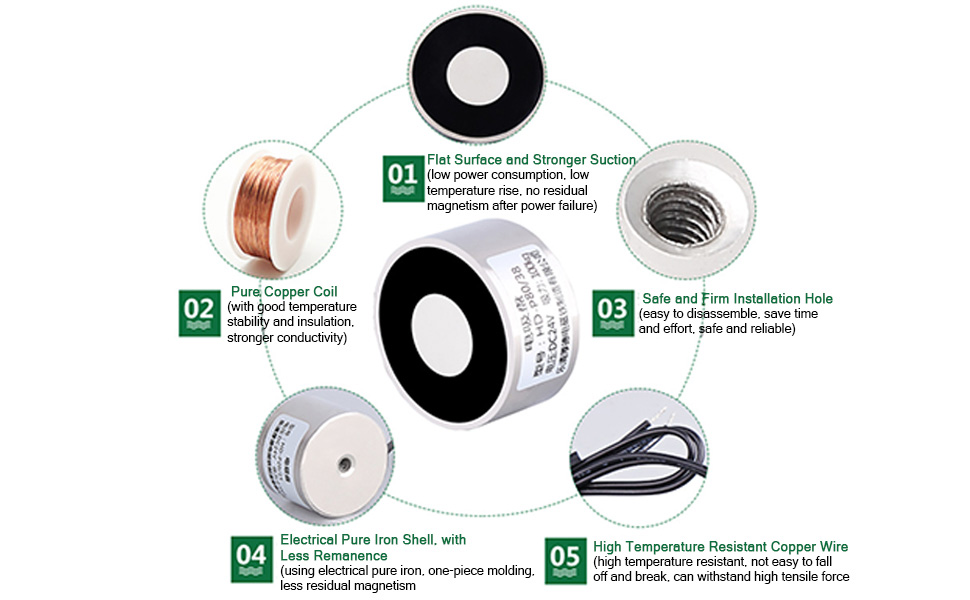

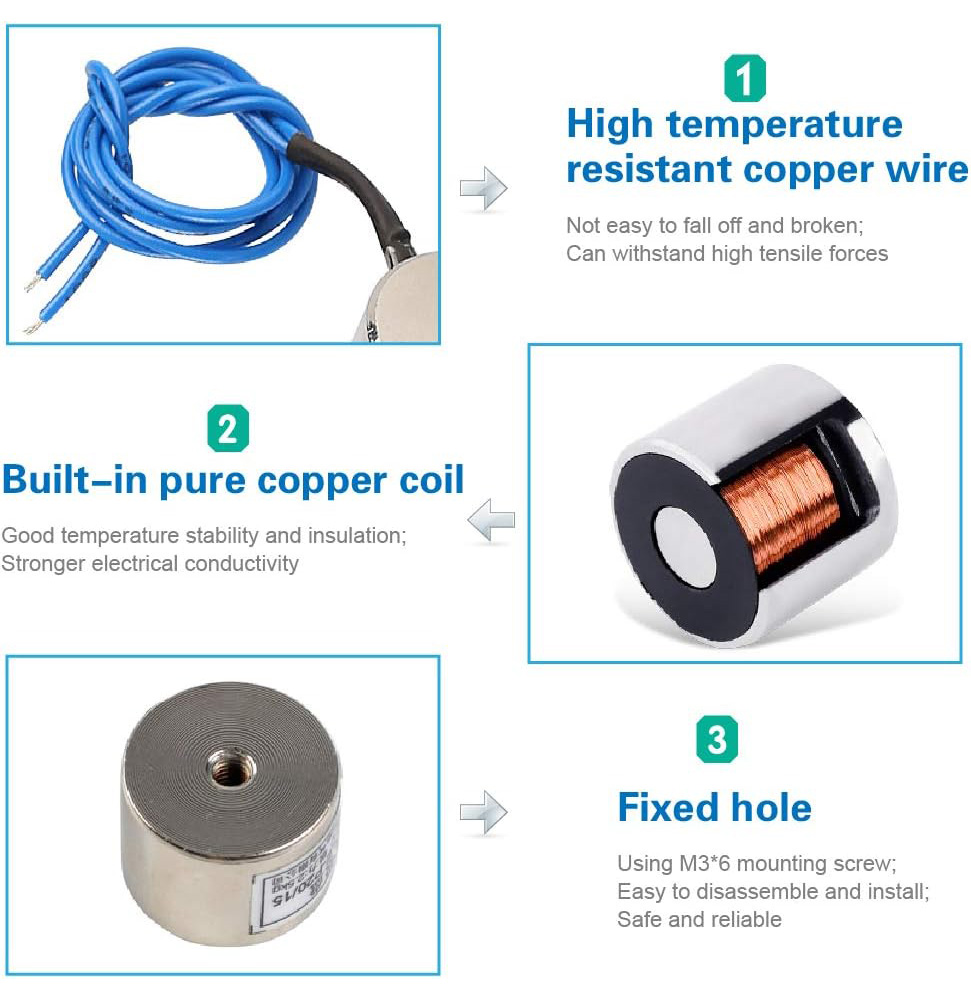

Unit Features:
Powerful and compact Design

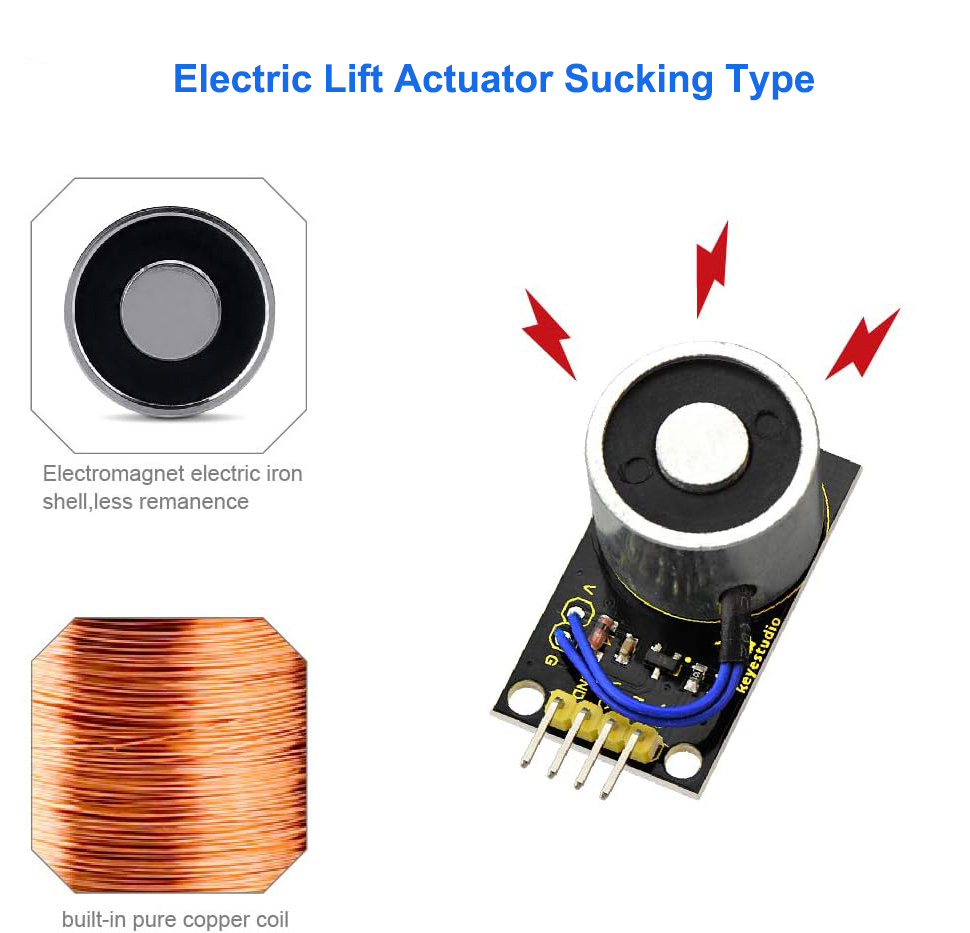

Housing Material: Good Carbon Steel with Zinc or Nickle coating. Smooth surface and Rohs Compliance
Input Voltage:  DC V
Peak Force:250N
Holding Force: 185N
Duty-cycle: 50%;
Electric time: Less than 7 minutes;
Electric Lifting Magnet Applications
Electric Lifting Magnets are versatile tools used across various settings, including automation assembly lines, sorting machines, mechanical arms for robot machine, and experimental facilities. It’s important to note that factors such as prolonged operation, lower voltage, and unsuitable materials can reduce the magnet’s force. For optimal performance and safety, it’s advised to utilize the magnet at no more than 80% of its rated lifting capacity as indicated on the nameplate.
Caution of Using this Electromagnets
1. The relative object absorbed must be a good magnetic material
2. The suction surface of the electromagnet must be smooth and clean.
3. The thickness of the object is 5 mm at best.
4. The contact surface of the object must be larger than the adsorption surface of the electromagnet
