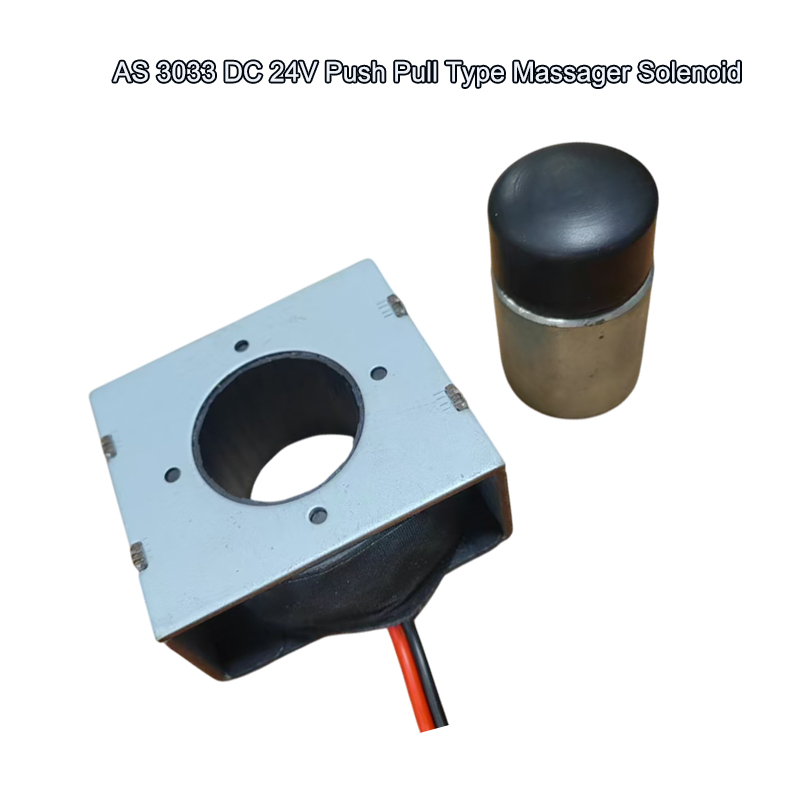

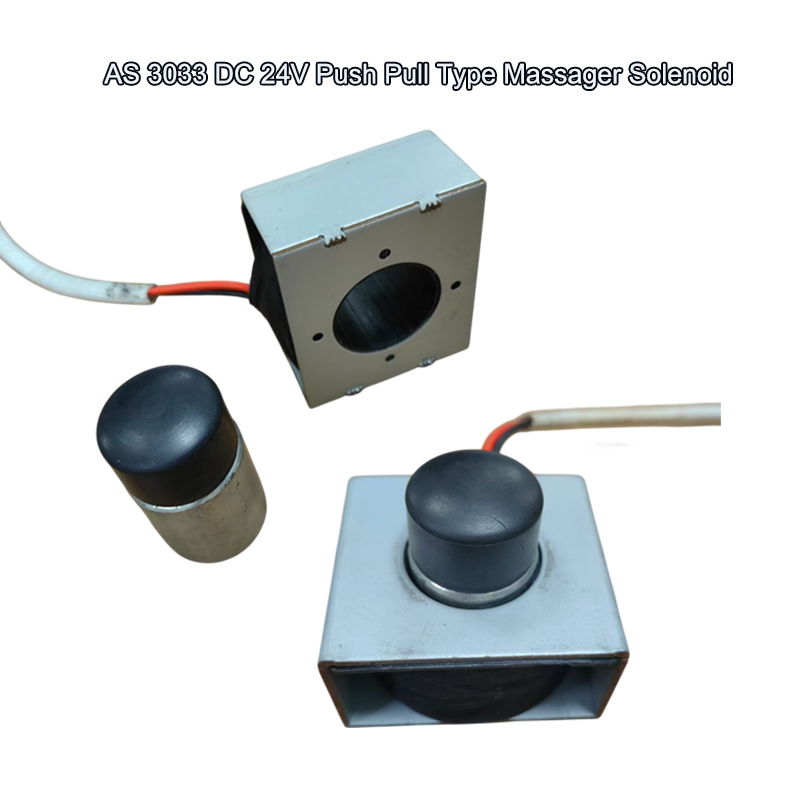

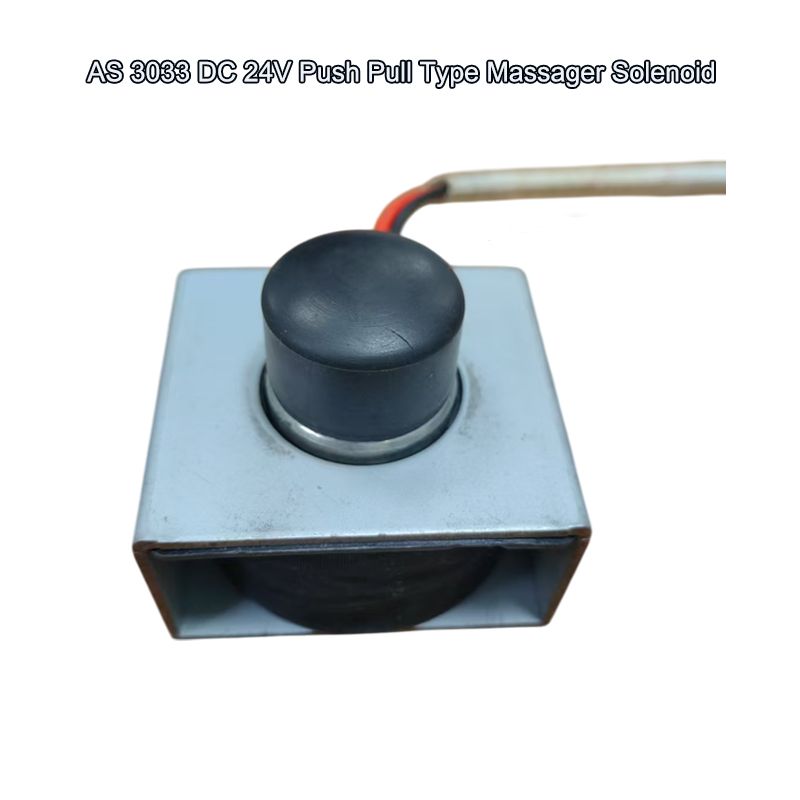

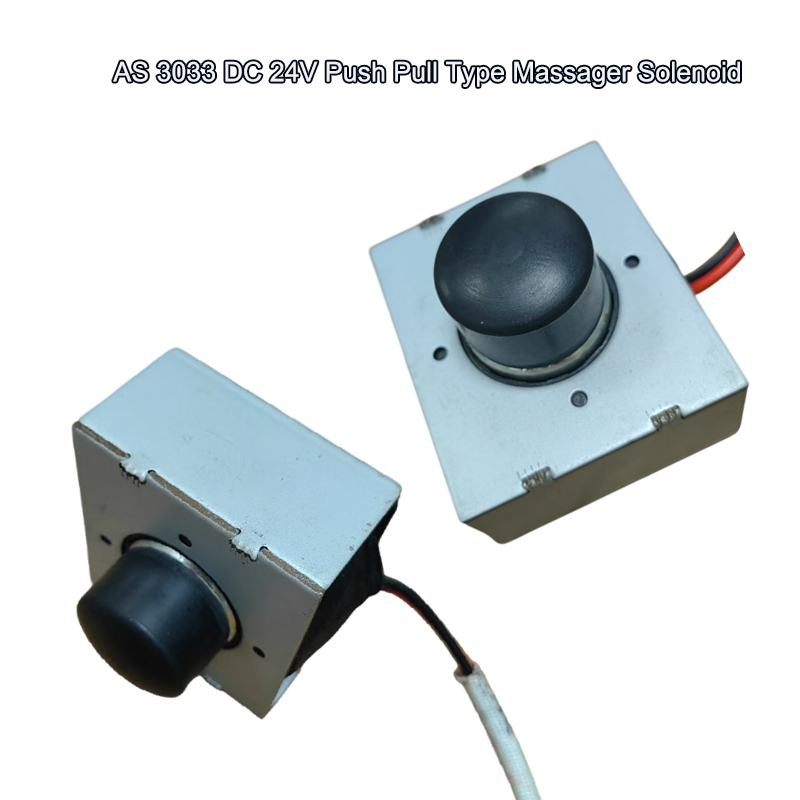

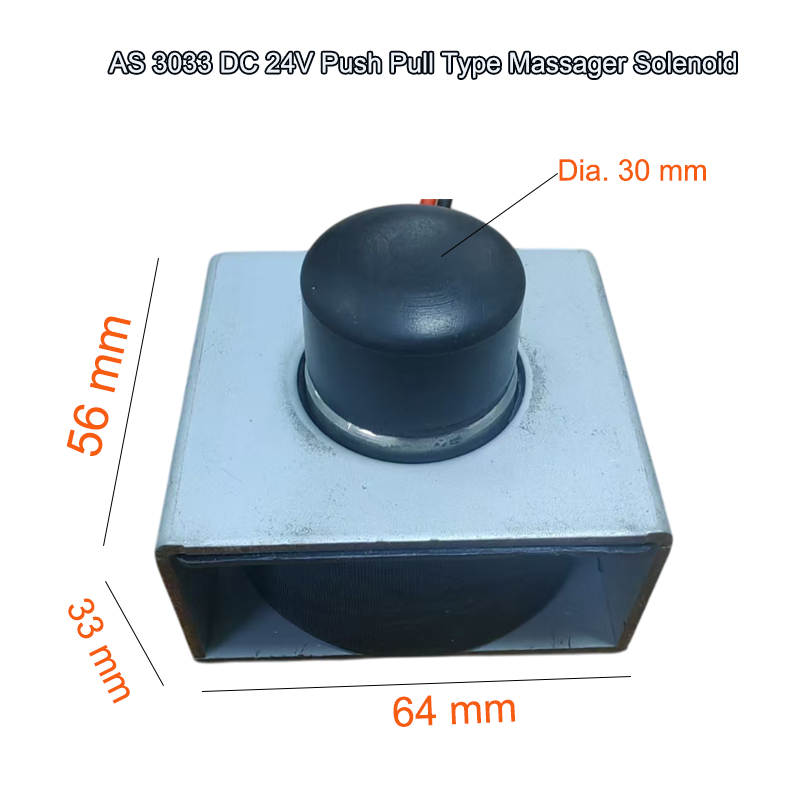

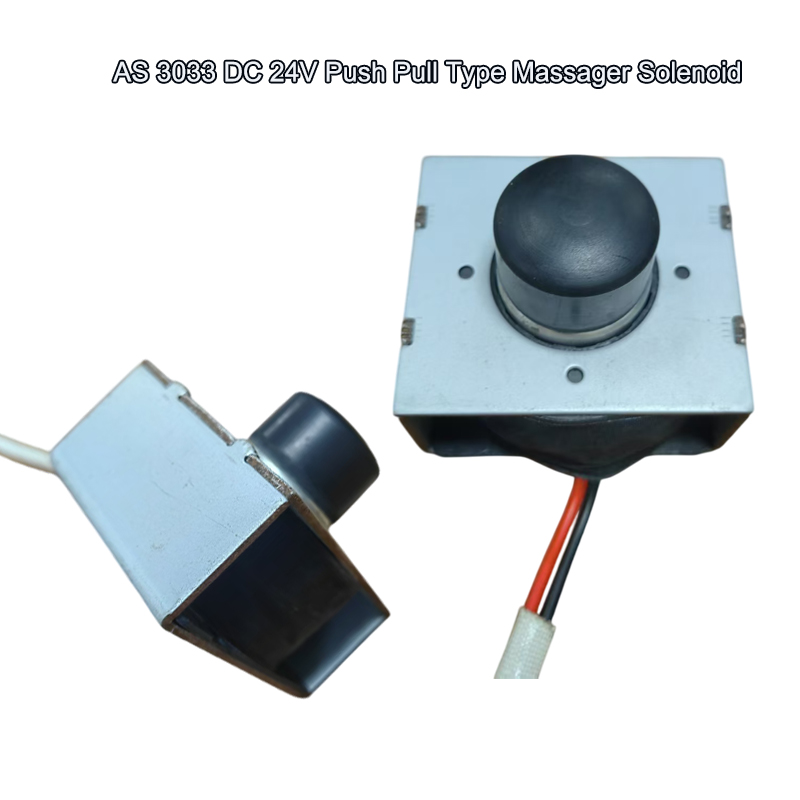

AS 3033 24V DC Push Pull Solenoid | Reliable Linear Motion for Massager Products

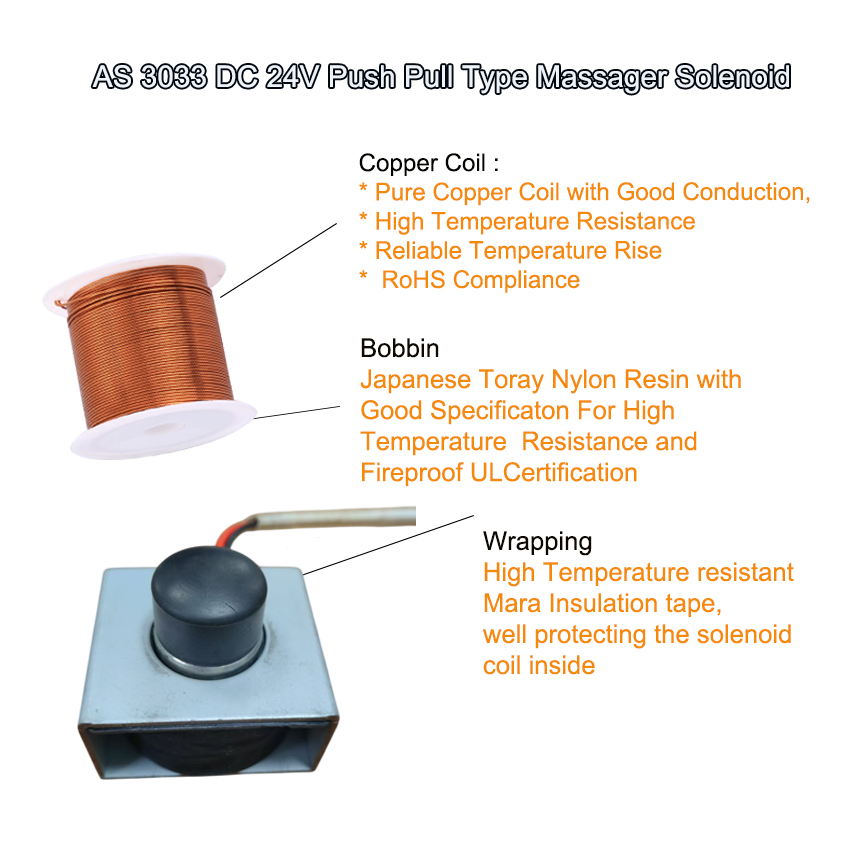

The AS 3033 DC 24V push pull solenoid is a precision linear actuator engineered specifically for massage equipment, including massage chairs and therapeutic massage devices. Delivering consistent and controlled linear movement, this solenoid ensures reliable performance for rhythmic vibration and actuation functions. With a durable copper coil and robust mechanical structure, it offers high efficiency, low noise operation, and a long service life, meeting the strict demands of continuous commercial use. As a professional solenoid manufacturer, we offer customizable specifications to match your exact product requirements. All units undergo rigorous quality testing and are backed by ISO 9001 certification, ensuring compliance with international standards. Ideal for OEM/ODM projects, our expert team provides full technical support and documentation to guarantee seamless integration and maximum performance in your massager products.

Product Video

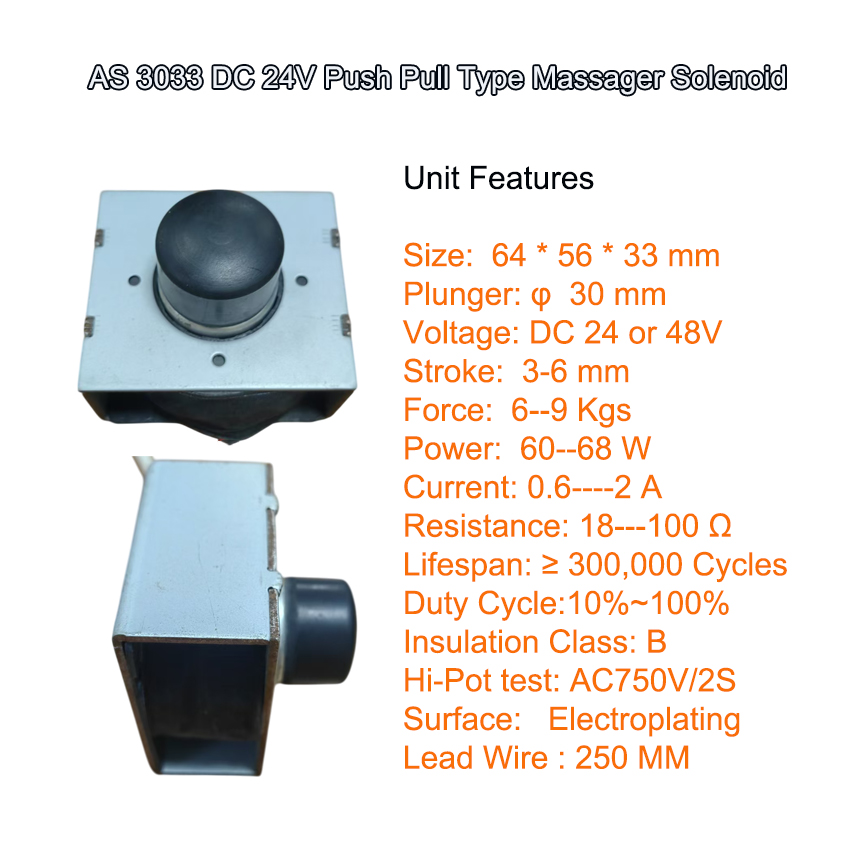

Product Specification

Brand	AstSolenoid	Model Number	AS 3033
Rated Voltage (V)	DC 24 V	Rated Power(W)	68 W
Work Model	Pull Push Type	Holding Force (N)	2 N
Stroke(mm)	3-10 MM	Reset Time(s)	1 S
Service Life	500 Thousand Times	Certification	CE,ROHS,ISO9001,

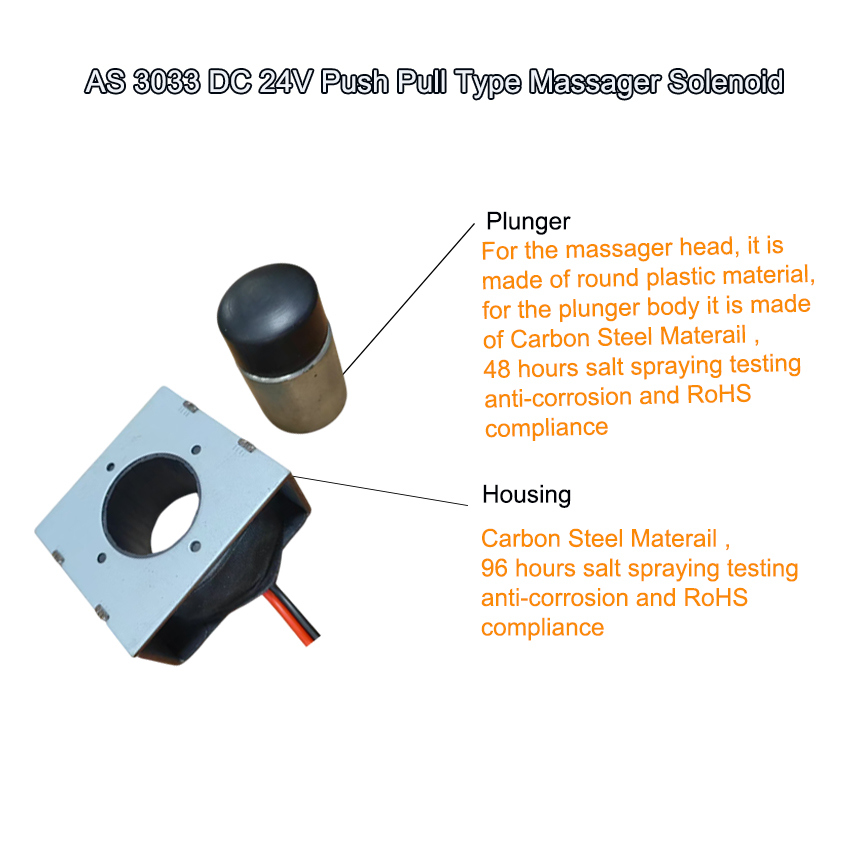

Material	Iron	Lead Wire Length(mm)	200
Install Style	screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	F 155 Degreee ( Cel. )
Hi-Pot Test	AC 600V 50/60Hz 1 s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

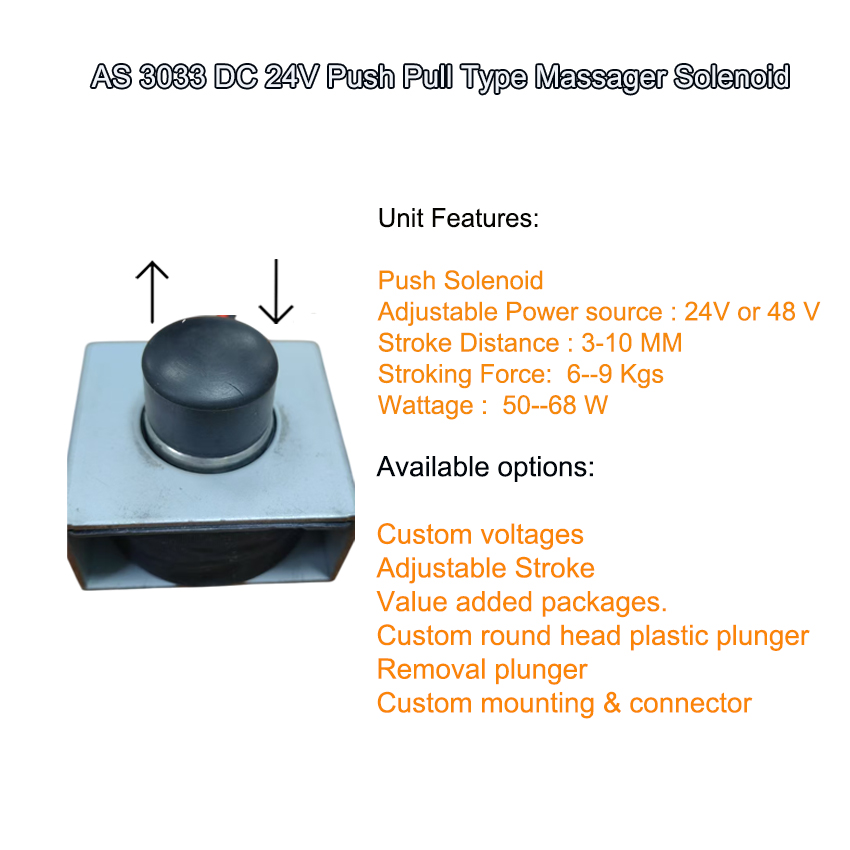

Product Description

Massager Solenoid FAQ

Although massager solenoids are durable, they may experience wear or malfunction over time. Below are common issues and preventive solutions:

1.Solenoid Coil Overheating

Cause: Prolonged continuous use or excessive current.

Fix: Allow the device to cool between sessions; avoid operating at maximum power for extended periods.

2.Reduced Power/Weak Performance

Cause: Worn-out coils or weakened return springs.

Fix: Replace the solenoid or internal springs if the massage device loses power.

3.Unusual Noises (Clicking/Grinding)

Cause: Internal misalignment or debris.

Fix: Clean internal components or realign the solenoid mechanism.

4.Electrical Failure

Cause: Coil burnout due to voltage spikes or surges.

Fix: Install a surge protector and prevent motor overloading.

How to Choose the Right Massager Solenoid

Key considerations for purchasing a percussive massager solenoid:

Stroke Length: Determines penetration depth of the plunger.

Percussion Speed (PPM):

High PPM (2,000–3,200): For fast, superficial vibrations.

Low PPM (1,800–2,400): For deep tissue massage.

Build Quality: Prioritize durable solenoids with efficient heat dissipation.
