AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock

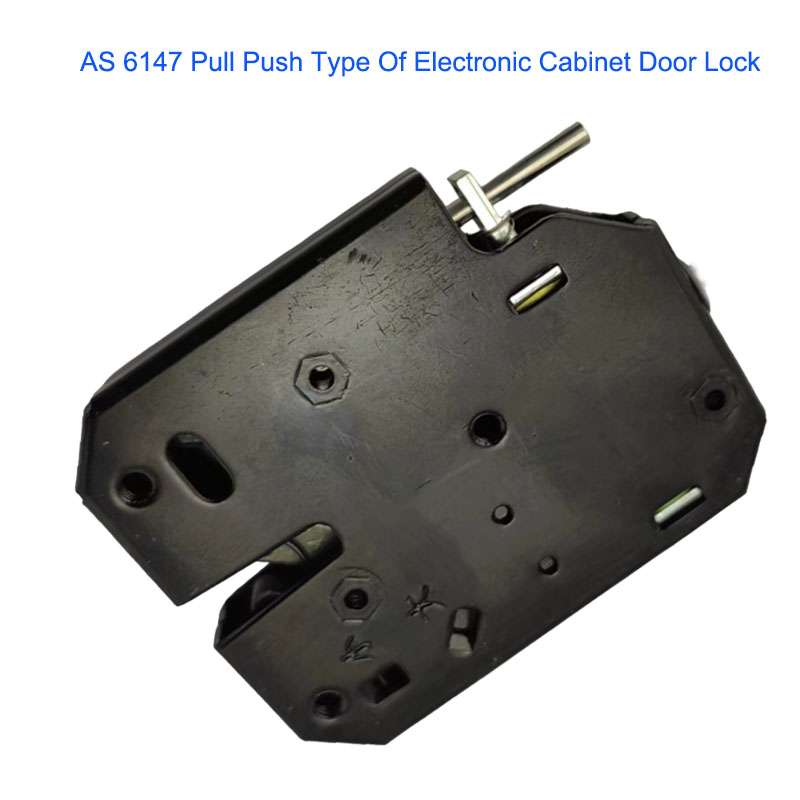

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock - Image 2

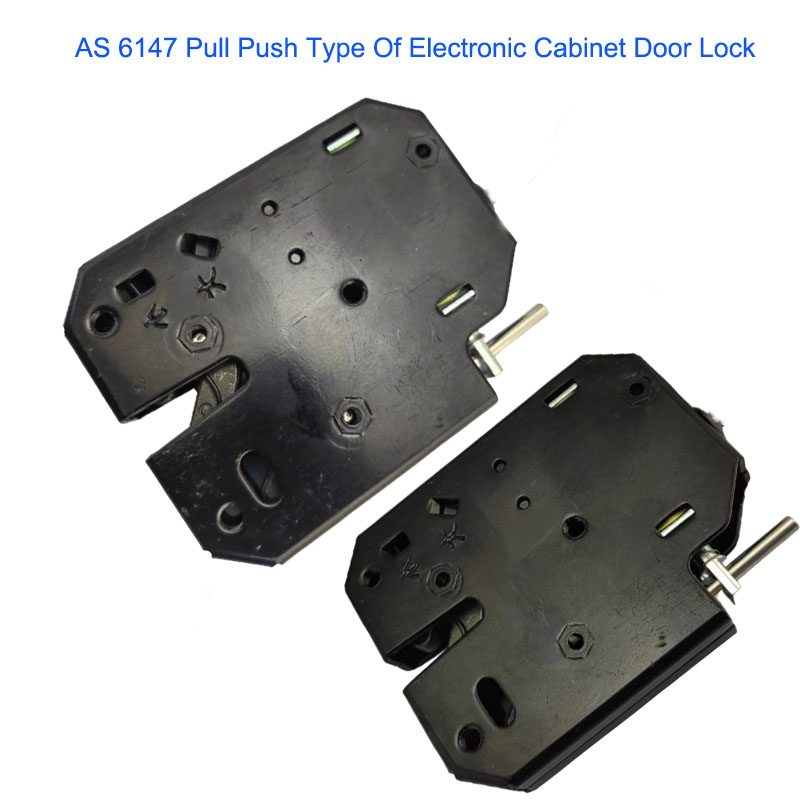

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock - Image 3

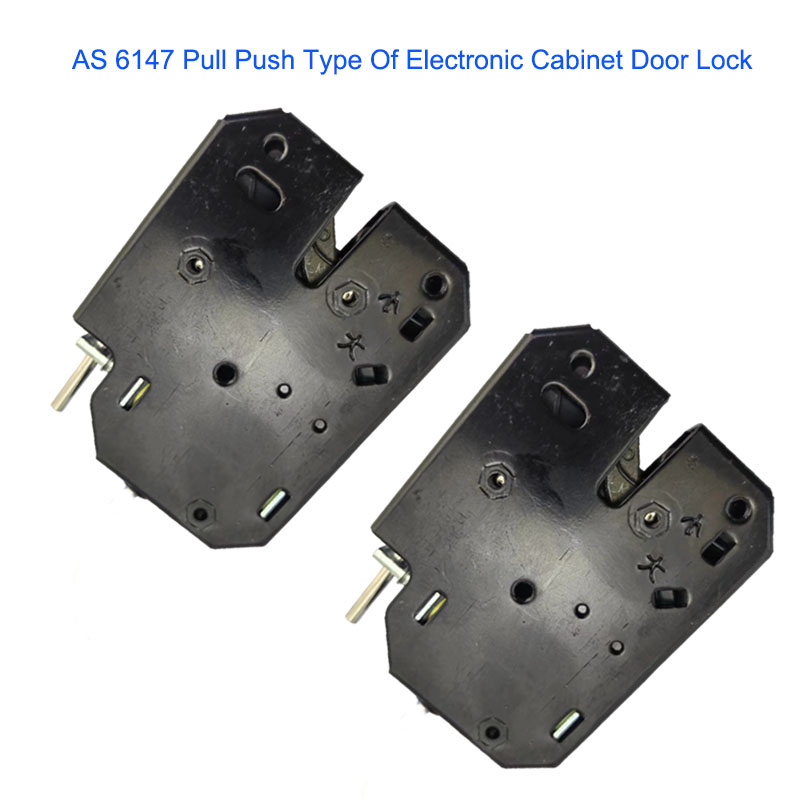

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock - Image 4

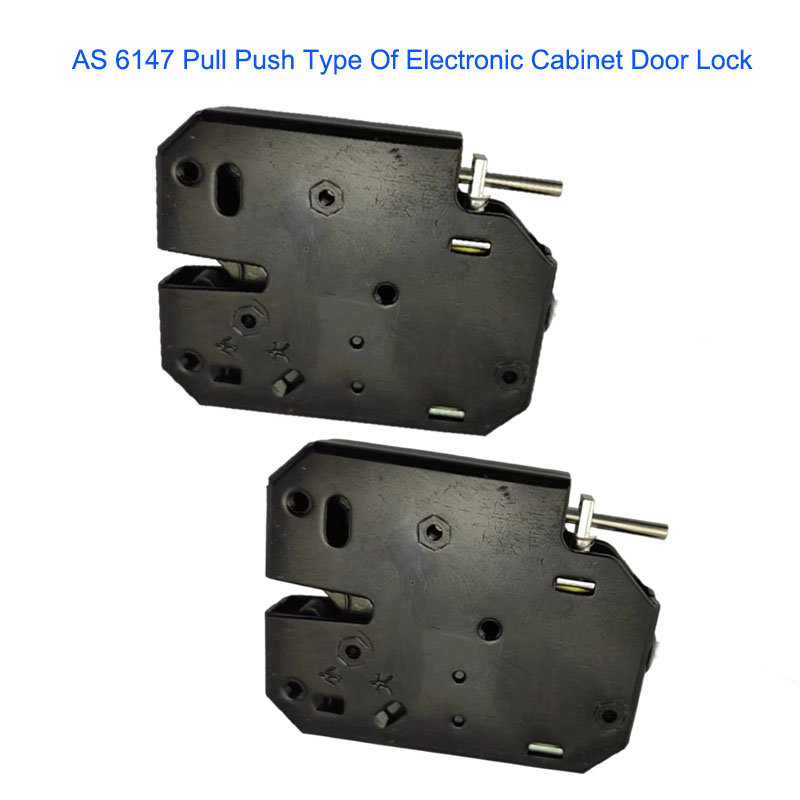

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock - Image 5

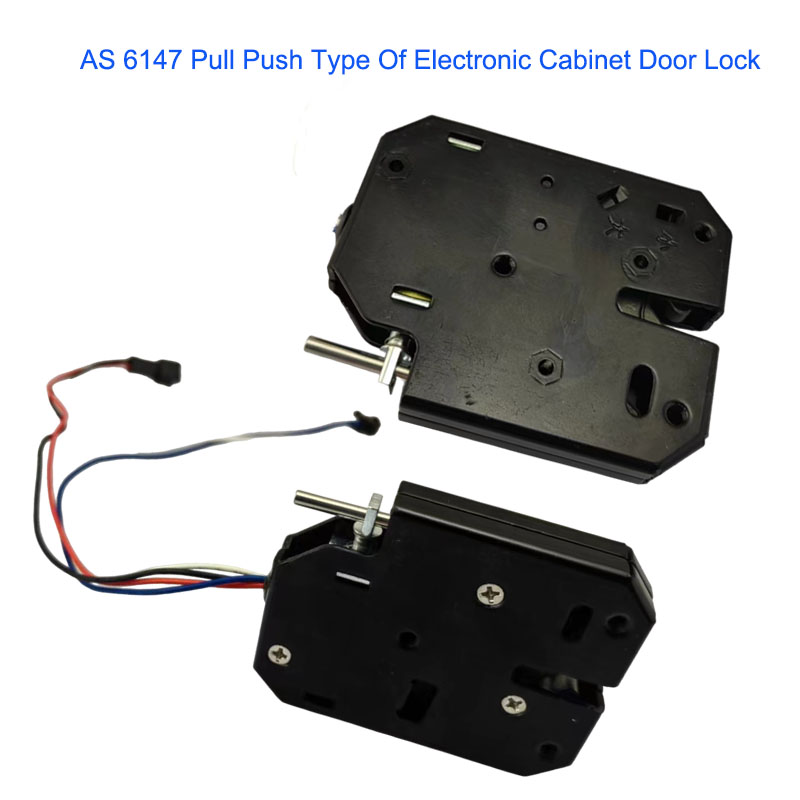

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock - Image 6
,

AS 6147 Electronic Cabinet Door Lock | Pull Push Type Solenoid Lock

The AS 6147 Pull Push Type Electronic Cabinet Door Lock is an industrial-grade solenoid-driven locking solution engineered for electrical cabinets, industrial enclosures, smart cabinet systems and electrical panels. Its precision pull-push actuation delivers fast, reliable linear motion for instant locking/unlocking, with low power consumption and stable performance in harsh industrial environments (-20℃~+80℃). Crafted with durable metal housing, it ensures anti-corrosion and long service life (100,000+ working cycles). Compatible with standard DC voltage configurations, it supports flexible integration with access control systems for commercial, industrial and smart storage applications. Easy to install with screw-mount design, the AS 6147 is a high-precision, cost-effective choice for secure cabinet door access management.

Categories: , Tags: , , , ,
Get a Quote

Product Video

Product Specification

Brand AstSolenoid Model Number AS  6147
Rated Voltage (V) DC 12 or 24V Rated Power(W) 28 W
Work Model Pull Push Type Holding Force (N)  180 GF
Stroke(mm) Customized Reset Time(s) 0.2
Service Life 500 Thousand Times Certification CE,ROHS,ISO9001,
Material Iron Lead Wire Length(mm) 200
Install Style screw Tolerance of Dimension  +/-  0.1 MM
Water-proof  None Insulation Class B
Hi-Pot Test AC 600V 50/60Hz 2s Non-excitation Holding Force 0
Working Temperature -10°C-100°C Duty Cycle 1-100%
Thread Depth(mm) / Payment Term TT, or LC At Sight
Sample Order Yes Warranty 1 Year
MOQ 500 pcs Supply Ability 5000 pcs per Week
Delivery Time 30 Days Port of Loading shenzhen

Product Description

Unit Dimension: 61 * 47 * 17 mm
Core Features
Keyless operation for easier use than traditional locks; Carbon steel with zinc coating for durability & weather resistance, ideal for indoor/outdoor public use. Enables secure storage in offices/warehouses/industrial facilities, with easy access control and activity tracking. Compact design, tool-free easy installation, no direction limits; supports mechanical emergency unlock, built-in unlock status detection. Adjustable elasticity (0.5~4kg door weight compatible).
Installation Notes
Close/lock door with external force (electric control only for unlocking); reserve space for emergency unlock button. Use with additional control circuit; locked = de-energized, unlocked = energized. Shackle resists 150Kg pull (no permanent deformation). Working temp: -40°C~60°C (outdoor ok, avoid extreme humidity/flooding).
Electrical Specs & Life
DC12V/1A; single unlock signal ≤0.2s (prevent electromagnet damage). Service life: ≥500,000 cycles under normal use.
