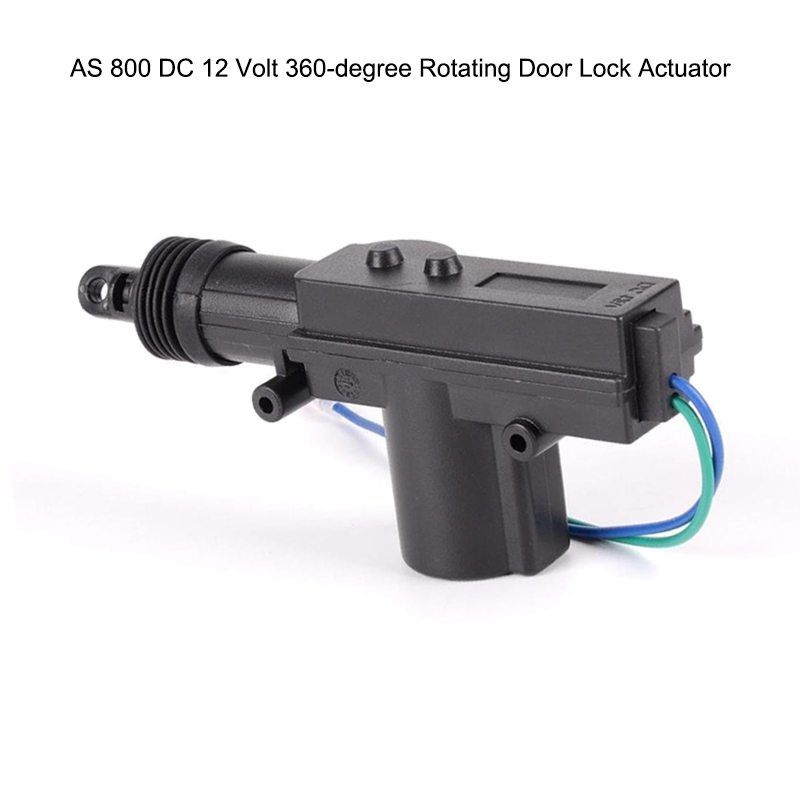

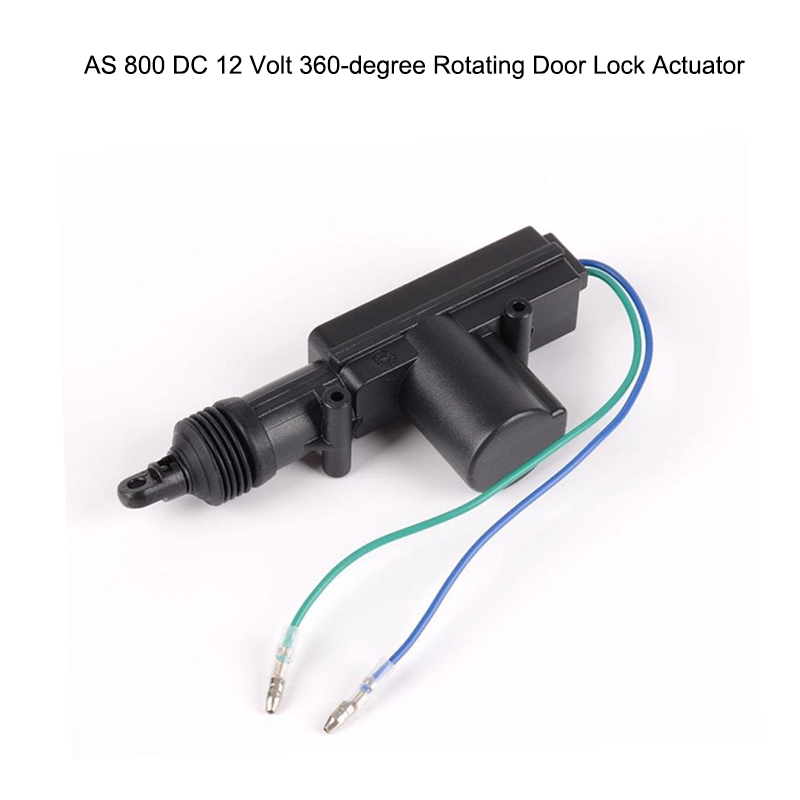

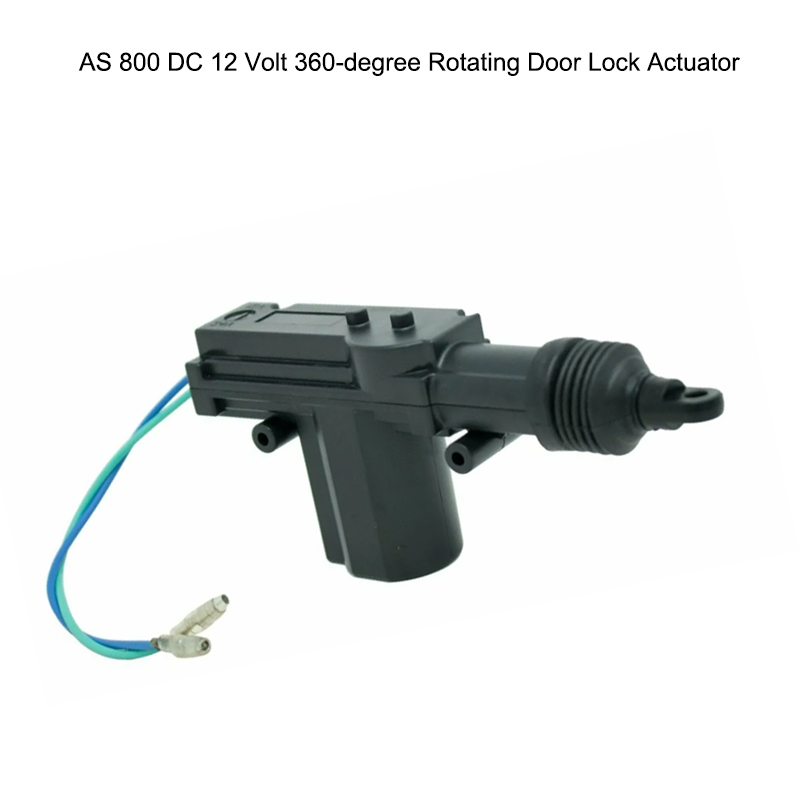

AS 800 DC 12V Door Lock Actuator | 360-Degree Rotating

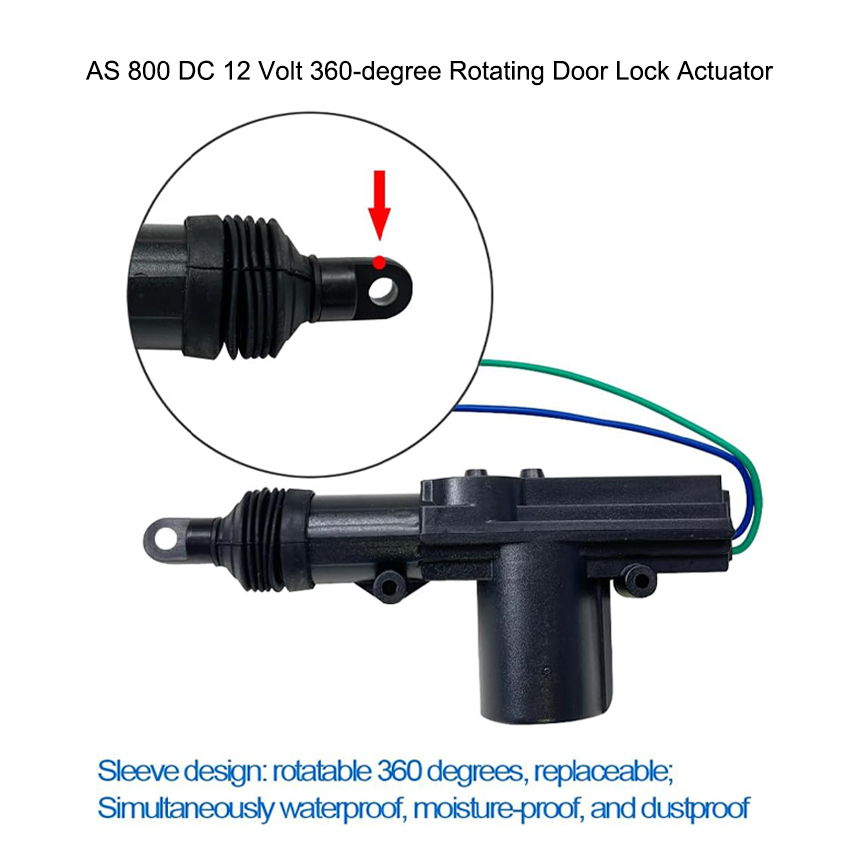

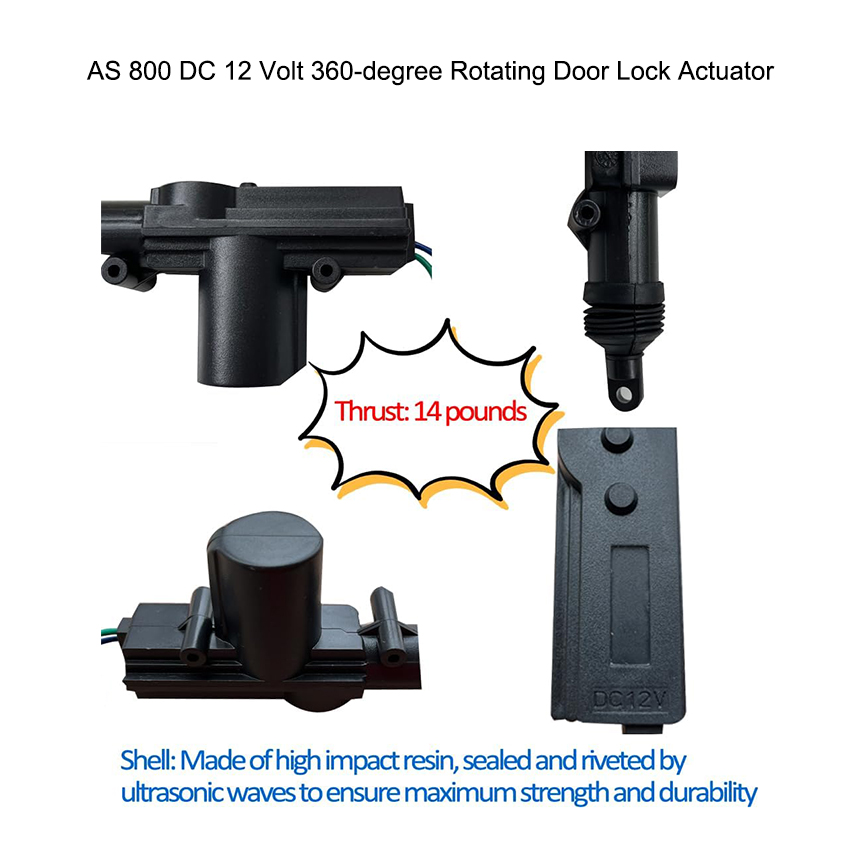

The AS 800 DC 12 Volt 360-degree Rotating Door Lock Actuator delivers robust, seamless performance for industrial and vehicle locking systems. Boasting a precision 360° rotating design, it enables flexible installation and smooth lock/unlock functionality, adapting to diverse mounting needs. Engineered for 12V DC power, it features high-tensile actuation force and durable ABS & metal construction for long-term reliability, with corrosion resistance and water-proof sealing for harsh environments. The AS 800 ensures stable operation, low power consumption, and universal compatibility with most 12V electrical systems. Easy to mount and integrate with central locking setups, it’s the ideal choice for upgrading manual locks to power-controlled systems with consistent, efficient performance.

Product Video

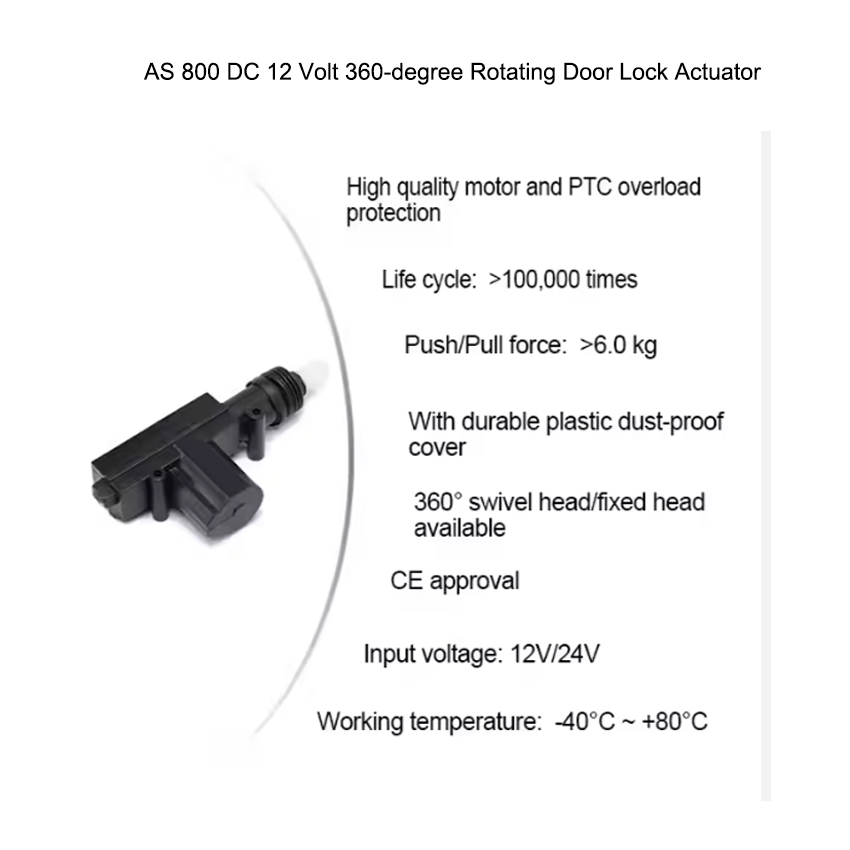

Product Specification

Brand	AstSolenoid	Model Number	AS 800
Rated Voltage (V)	DC 12V or 24V	Rated Power(W)	20 W
Work Mode	Motor type	RoHS	Compliance
Stroke(mm)	21 MM	Reset Time(s)	1 S on 3 S off
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	ABS Housing	Lead Wire Length(mm)	200

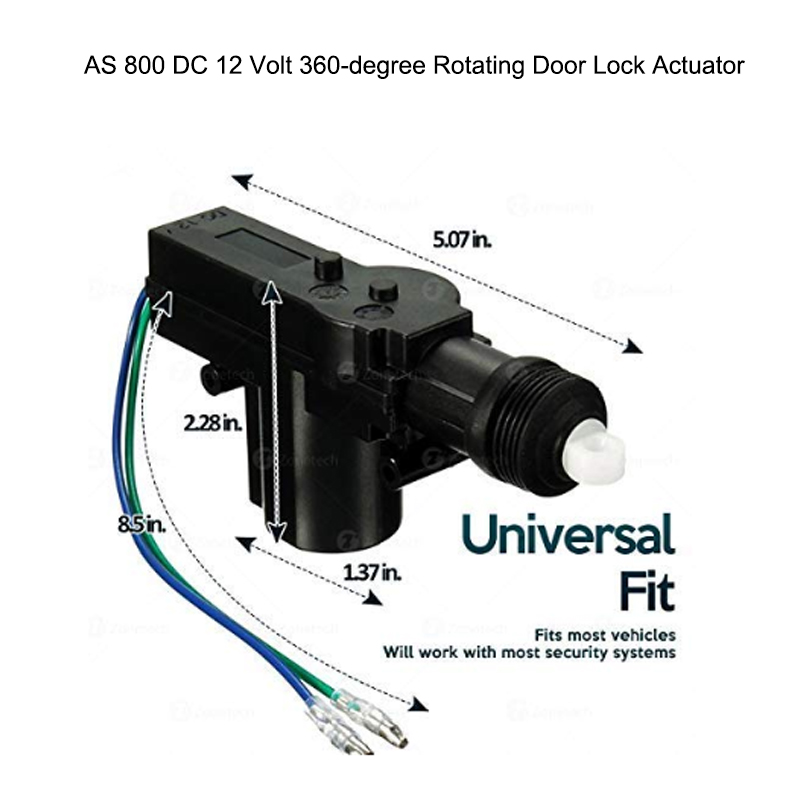

Install Style	mounted screw hole for easy set up	Tolerance of Dimension	+/- 0.1 MM
Pushing Force	60 N	Insulation Class	H 180 Degree
Hi-Pot Test	AC 600V 50/60Hz 1s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen
