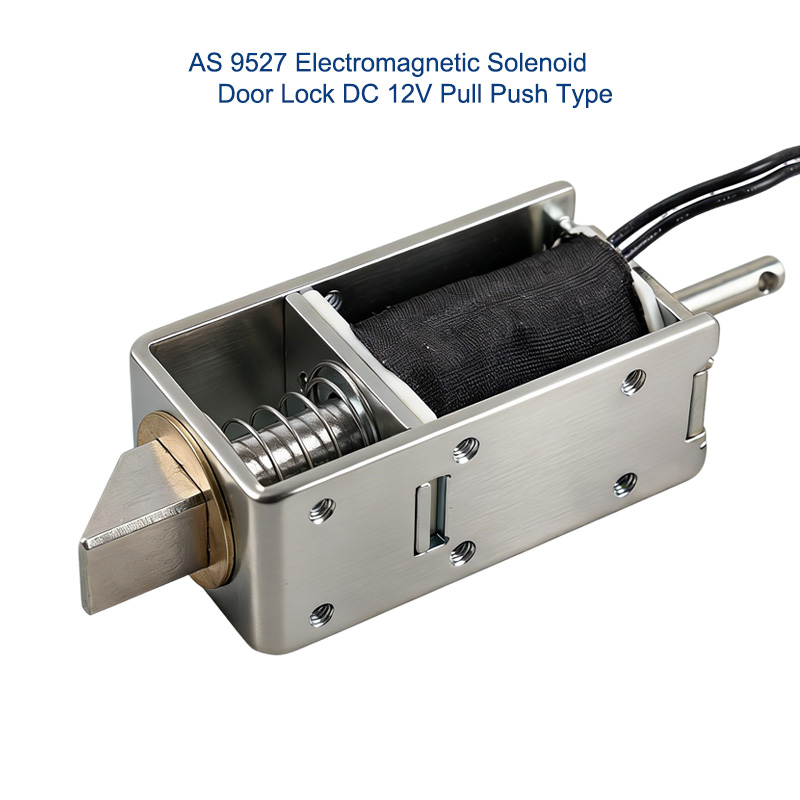

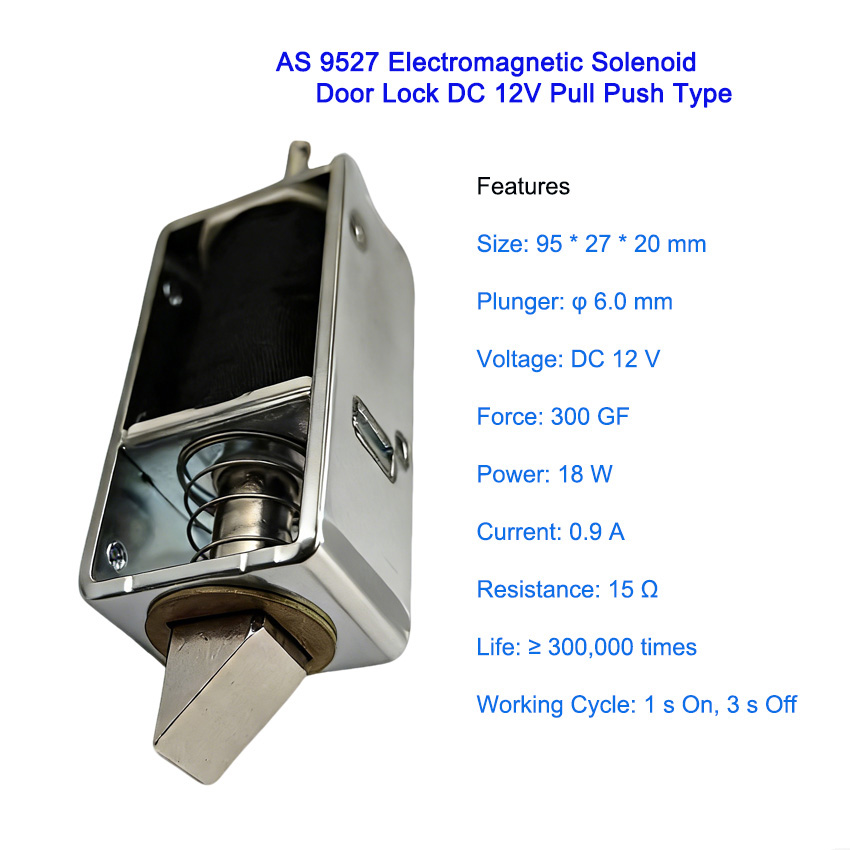

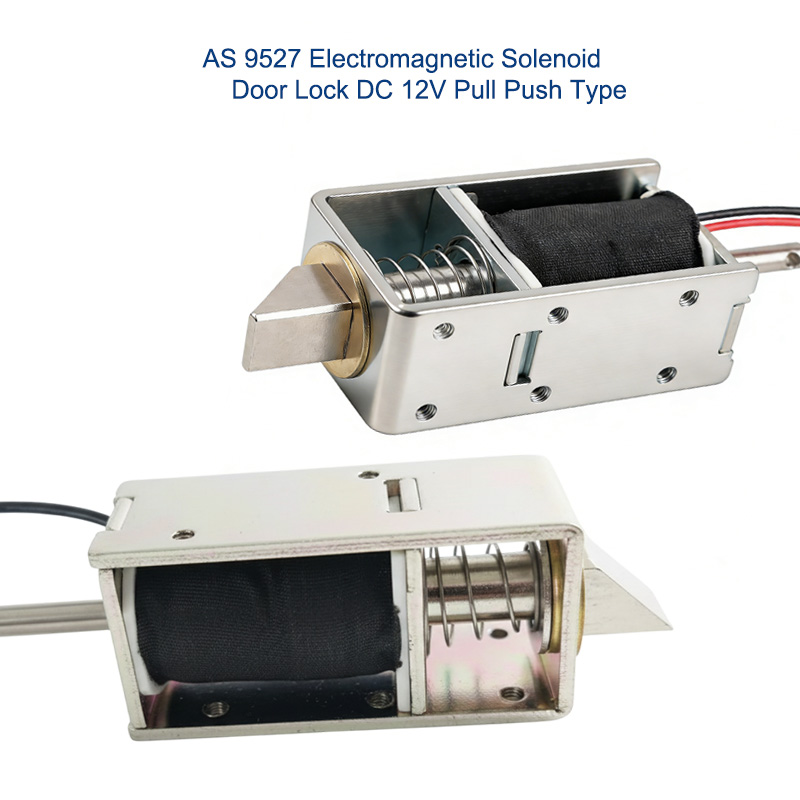

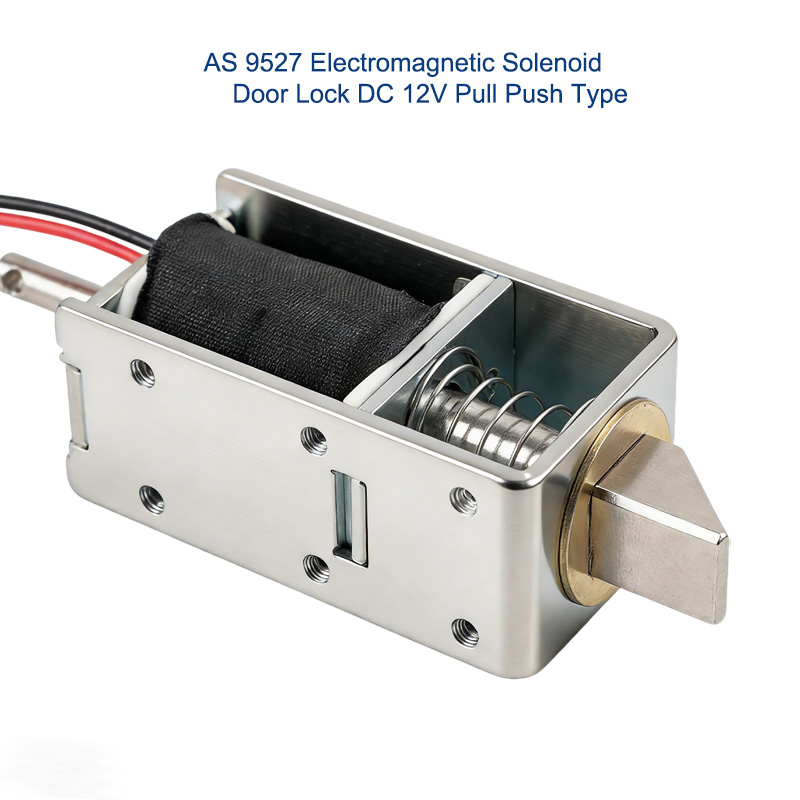

AS 9527 DC 12V Solenoid Door Lock – Pull Push Electromagnetic Actuation

AS 9527 DC 12V Pull Push Type Electromagnetic Solenoid Door Lock is an industrial-grade electromechanical solenoid with precise linear push-pull actuation. Powered by DC 12V, it delivers stable high-force output, low power consumption and fast response for reliable locking/unlocking of doors and cabinets. Made of durable anti-corrosive materials, it is suitable for harsh industrial, commercial and automation environments. It enables seamless integration with control circuits and access control systems, ideal for cabinets, industrial doors, vending machines and smart access setups. With over 500,000 operational cycles and easy installation, it is a dependable, cost-effective solenoid lock solution for professional security and automation applications.

Product Video

Product Specification

Brand	AstSolenoid	Model Number	AS 9527
Rated Voltage (V)	DC 12 V	Rated Power(W)	18 W

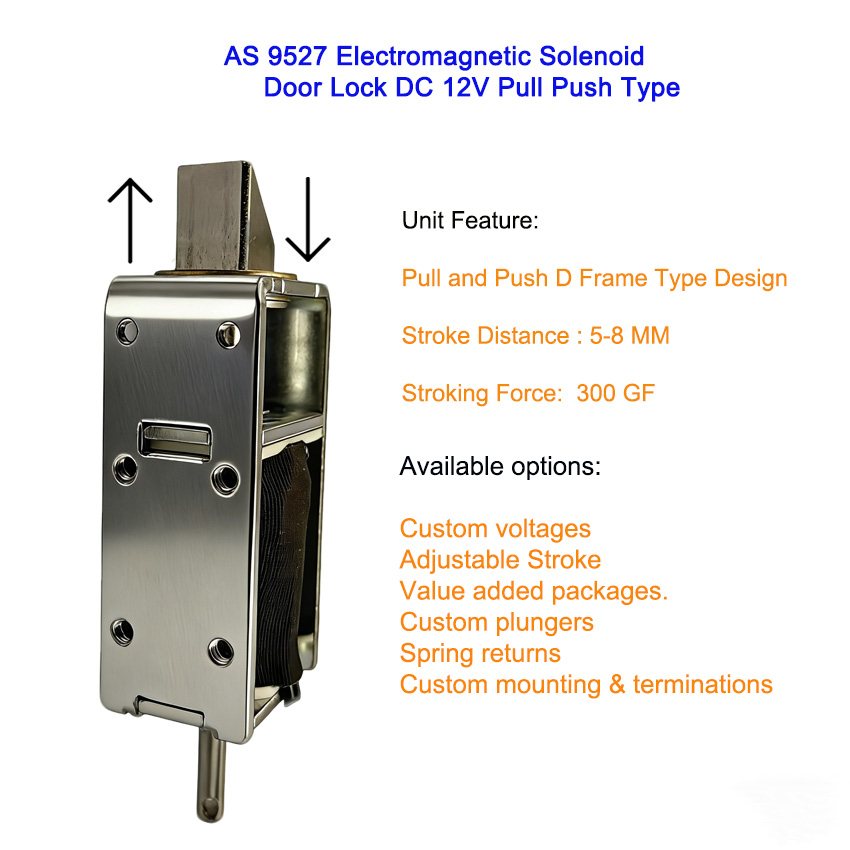

Work Model	Pull Push Type	Holding Force (N)	300 GF
Stroke(mm)	Customized	Reset Time(s)	1 S
Service Life	300 Thousand Times	Certification	CE,ROHS,ISO9001,

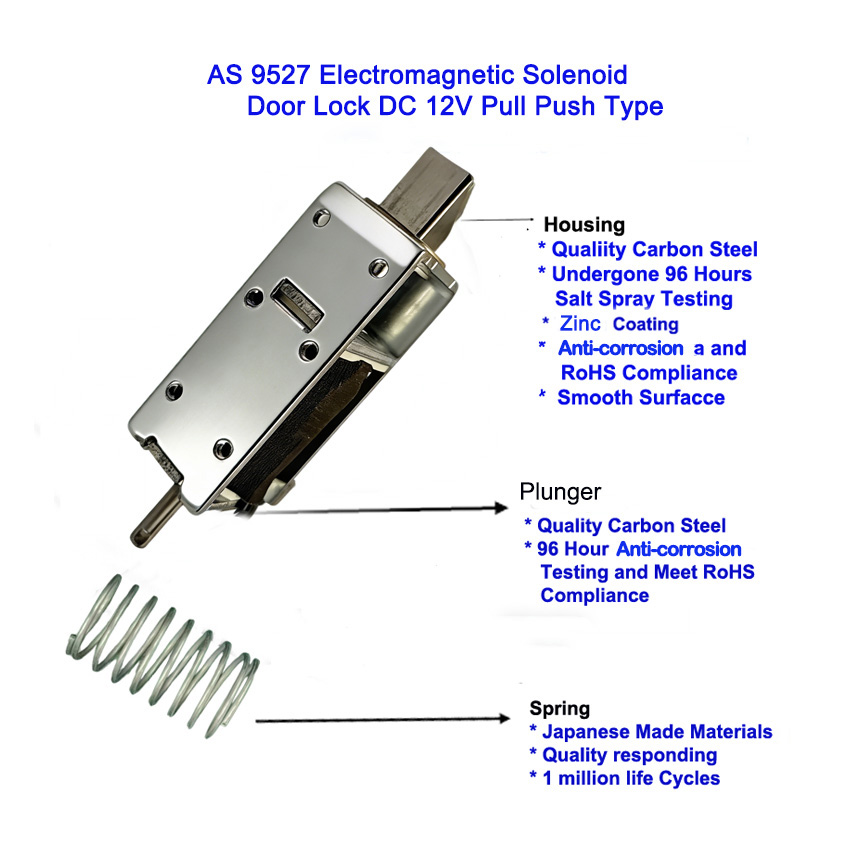

Material	Carbon Steel Housing with Zinc Coating	Lead Wire Length(mm)	200
Install Style	Mounted Screw Holes	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	F 155 Degree 9 Cel. )
Hi-Pot Test	AC 600V 50/60Hz 1 s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	500 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen
