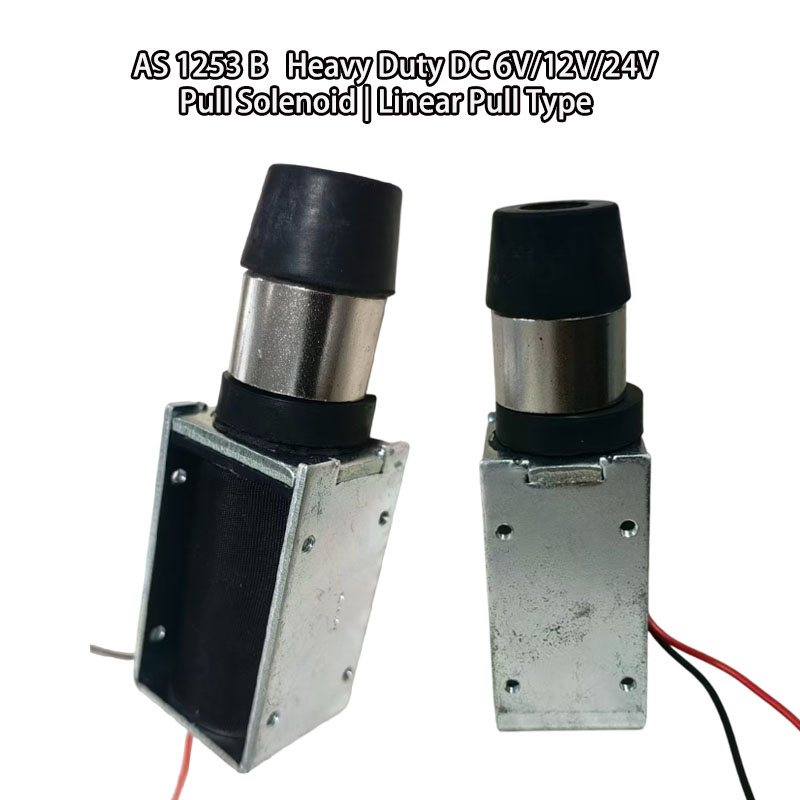

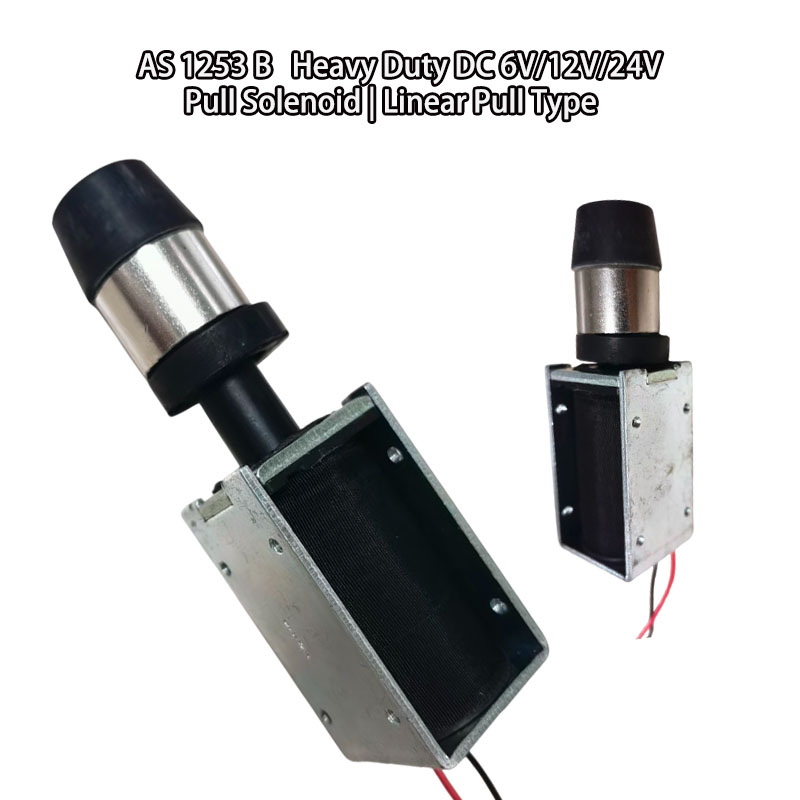

| Brand | AstSolenoid | Model Number | AS 1253 B |
| Rated Voltage (V) | DC 6V，12V or 24V | Rated Power(W) | 10-20 W |
| Work Mode | Linear Pull Type | Holding Force (N) | 2–3 N |
| Stroke(mm) | 10-18 MM Customized | Reset Time(s) | 1 S On，3 S OFF |
| Service Life | 200 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Superior Magnet Iron | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-80% |
| Thread Depth(mm) | 2 | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

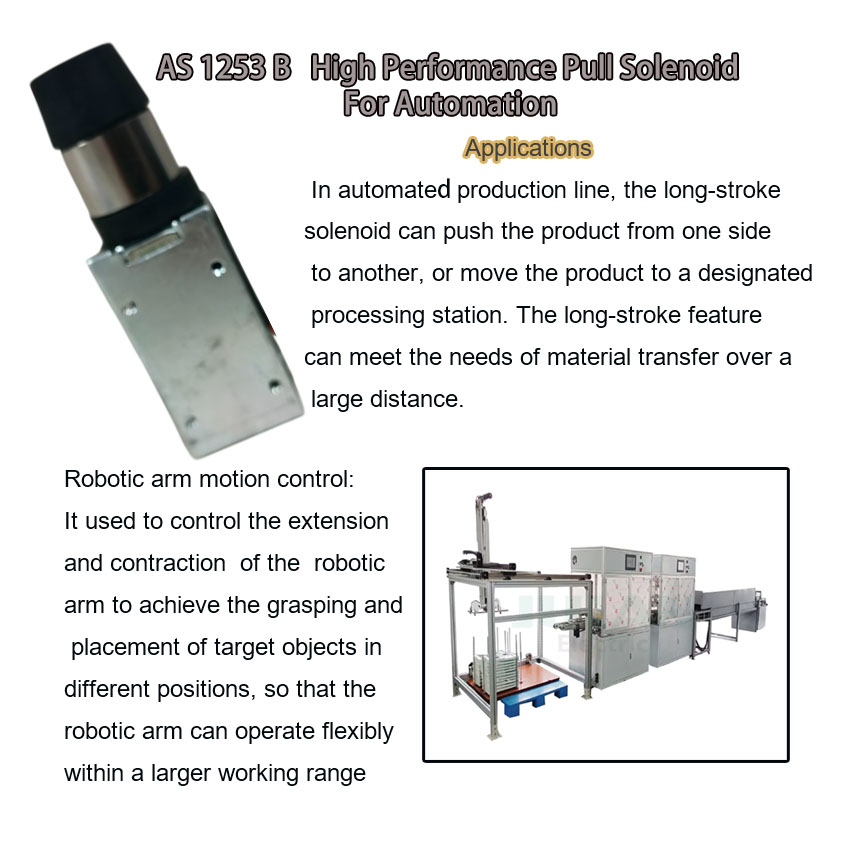

Applications:
Industrial Locking & Latching Systems
Automated Gate & Door Bolts
Material Handling & Sorting Equipment
Valve Actuation (air, fluid, hydraulic)
Packaging & Bagging Machinery
Vending Machine Mechanisms
Automotive Test Equipment & Brake Locks
Robotic Gripping & Positioning Arms
Kiosk and Security Door Releases
Agricultural Machinery Controls
Medical & Diagnostic Equipment Actuators
FAQ:
Q1: What voltage options are available for the AS1253B solenoid?
A1: The AS1253B is designed to operate on multiple standard DC voltages, specifically 6V, 12V, and 24V DC. Please ensure you select or wire the solenoid for the correct voltage matching your power supply to ensure optimal force and prevent damage.
Q2: Is this solenoid suitable for continuous (100% duty cycle) operation?
A2: Yes, the AS1253B is built as a heavy-duty solenoid and is rated for continuous duty (100% duty cycle) in most configurations, making it ideal for long-duration holding applications like locking. Always check the specific datasheet for thermal ratings in your environment.
Q3: Can I use this for a pushing action, or is it pull-only?
A3: The AS1253B is specifically a “pull-type” or “linear pull” solenoid. The plunger is drawn into the coil body when energized. For a pushing action, you would need a push-type solenoid or a pull solenoid with an external mechanism to convert the motion.
Q4: What is the typical lifespan or cycle rating?
A4: These solenoids are engineered for long life in demanding applications.Lifespan hinges on several factors: the operating voltage, the load it’s under, how often it’s cycled, and the environment it’s in. When used as recommended, these solenoids can handle millions of cycles. For specific lifecycle data, refer to the technical specifications.
Q5: How do I get the AS1253B mounted and installed?
A5: This solenoid usually has a threaded body or mounting brackets, making installation straightforward. The plunger, or shaft, connects to your machine’s linkage. Make sure it’s properly aligned to prevent any binding, and follow all wiring diagrams, paying close attention to polarity if you’re using DC power.
Q6: Can I just swap this in for a failing solenoid in my current machine?
A6: The AS1253B is a standard OEM-style industrial solenoid. To be sure it’s a direct replacement, compare the physical dimensions, voltage, stroke length, and force specifications with your existing part number. Matching these critical parameters is key.
